Xerox Phaser 3610

Service Parts Disassembly
Phaser 3610, WorkCentre 3615 Service Manual4-30
Chassis Repairs
REP 2.1 Duplex Chute Assembly
PL 2.1 Registration
Removal
WARNING: Allow the Fusing Assembly to cool before servicing the product.
1. Open the Rear Cover.
2. Remove (REP 3.4 Transfer Roller Assembly).

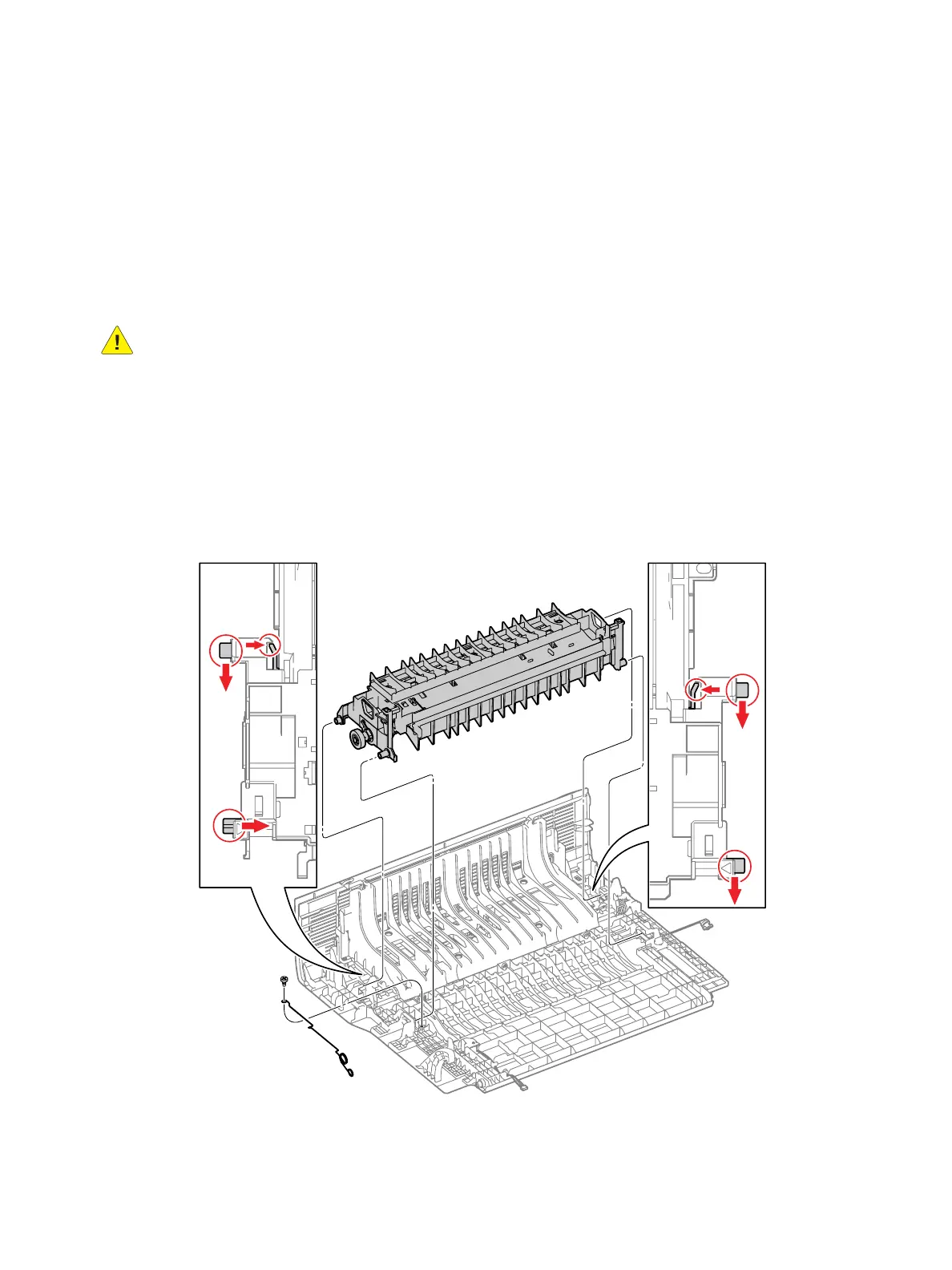

3. Remove the Duplex Chute Assembly. (Figure 1)
a. Remove 1 screw (silver, tapping, 4mm) that secures the grounding springs to the Rear Cover.
b. Release 2 clips that secure the Duplex Chute Assembly to the Rear Cover.
c. Rotate and slide the Duplex Chute Assembly to the left until the 4 bosses release.
d. Lift to remove the chute.
Figure 1
s3610-012
b)
c)
a)
b)
