Service Parts Disassembly
Phaser 3610, WorkCentre 3615 Service Manual4-80
REP 4.2 Exit Output Drive Assembly
PL 4.1 Drive
Removal
WARNING: Allow the Fusing Assembly to cool before servicing the product.
1. Remove (REP 5.2 ESS PWB Housing).

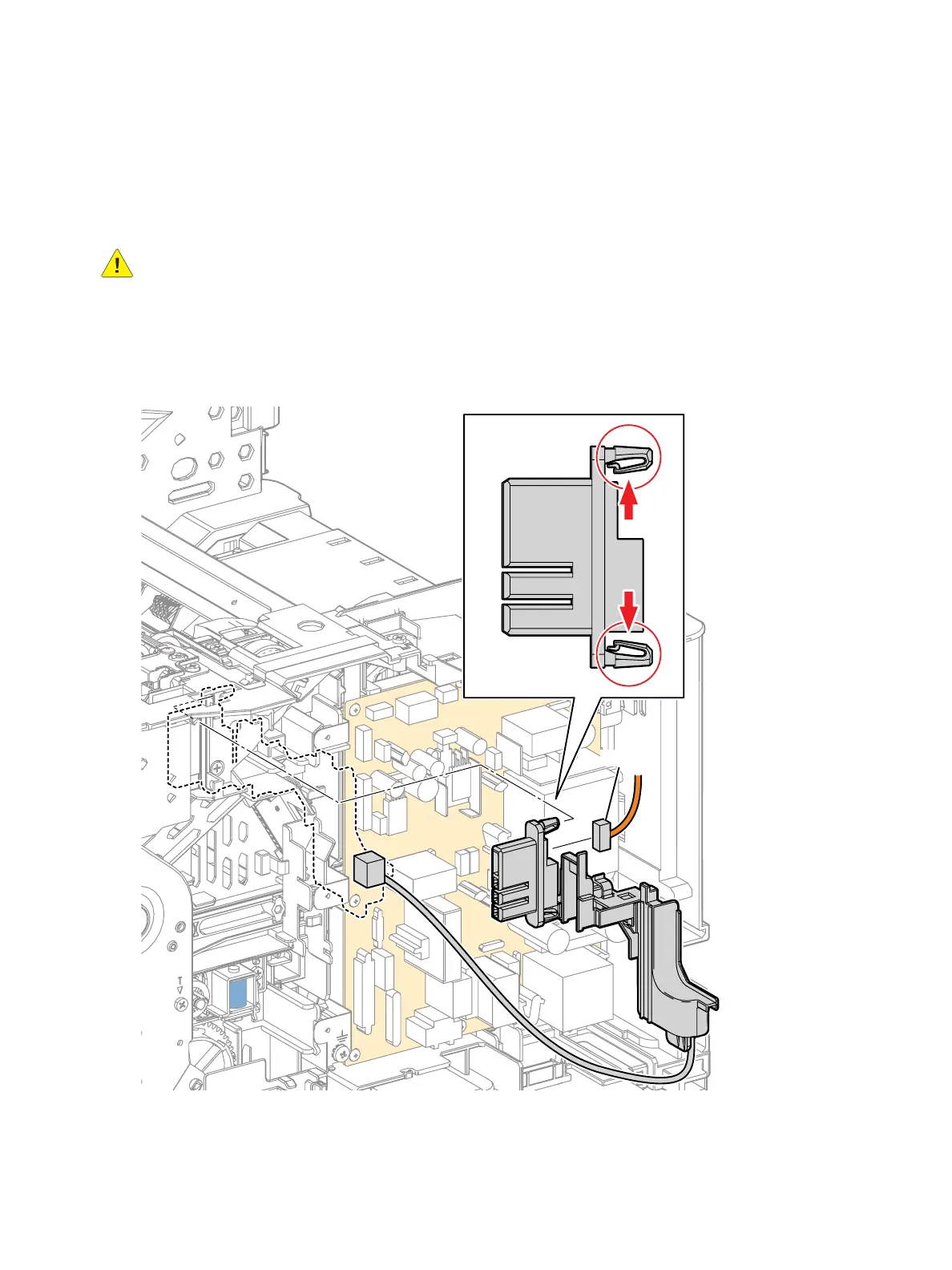

2. Remove the Fusing Assembly Harness. (Figure 1)
a. Release 2 clips that secure the Fusing Assembly harness,
b. Disconnect P/J233 from the Fusing Assembly harness
Figure 1
s3610-049
P/J233
To Next Page
