Service Parts Disassembly
Phaser 3610, WorkCentre 3615 Service Manual 4-131
REP 7.10 Registration Clutch Assembly
PL 7.2 Tray 1/Optional Tray 550-Sheet Feeder (2/4)
Removal
1. Remove (REP 7.8 Feeder Assembly).
2. Remove the Components. (FIgure 1)
a. Remove the idler gear
b. Remove 1 screw (silver, tapping, 8mm) that secures the retention plate.
c. Remove the E-ring that secures the clutch to the shaft.

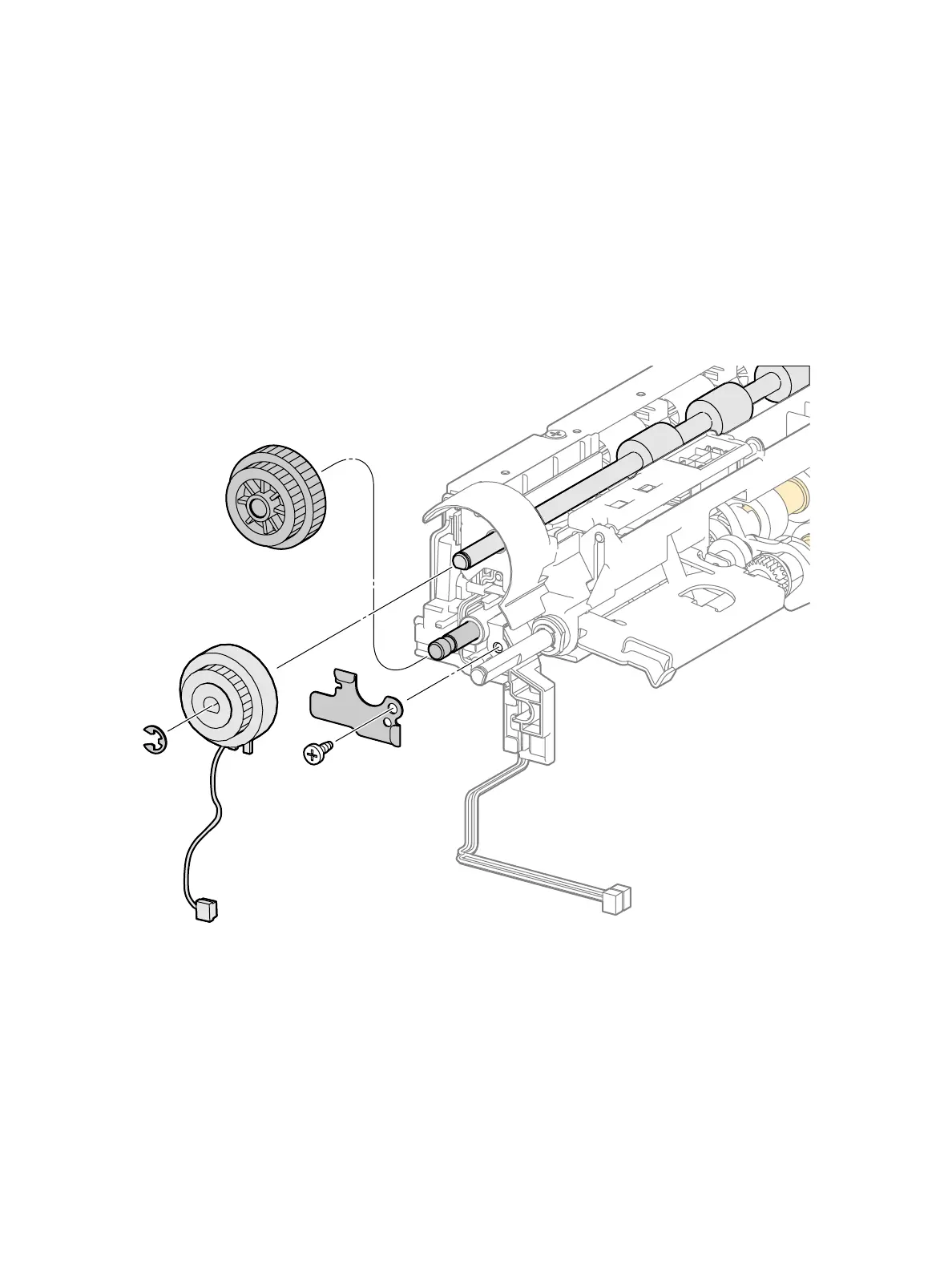

Figure 1
Replacement
1. Replace in reverse order.
s3610-117
b)
c)
a)
d)
To Next Page
