Wiring
Phaser 3610, WorkCentre 3615 Service Manual7-44
Wiring Diagrams

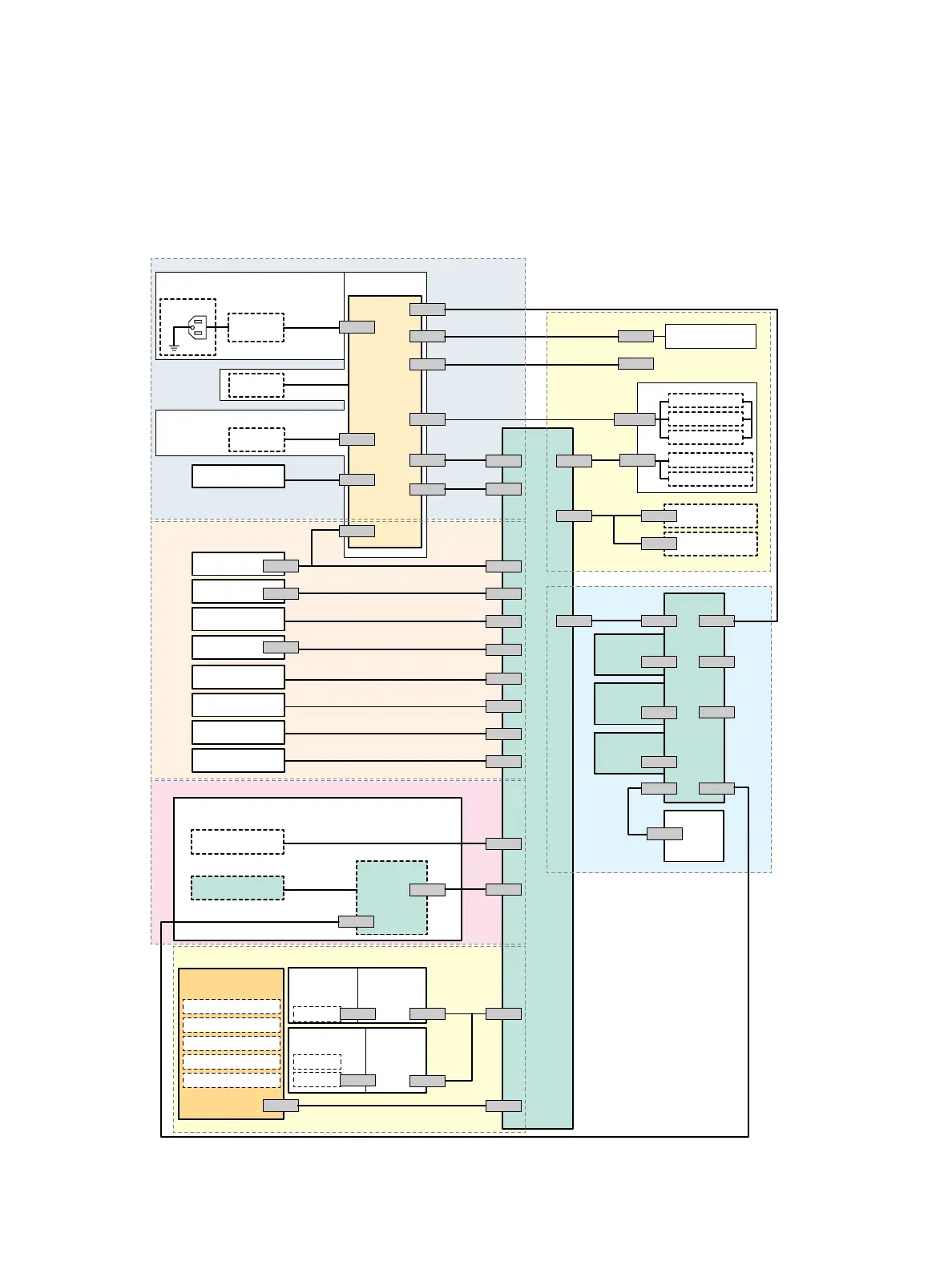

General Wiring Diagram for 3610
s3610-185
1Power
AC Inlet
PL 5.4
AC Inlet
Main Switch
LVPS
PL 5.1
LVPS
PL 5.1
Front Intlk
Switch
P/J200
P/J211
P/J240 P/J2401
P/J230
P/J241
P/J212
P/J101
P/J111
P/J502
P/J210 P/J21
P/J22
P/J23 P/J233
P/J27 P/J271
P/J20
P/J321 P/J341
P/J311P/J301
P/J312
P/J322
P/J331
P/J314
P/J10
P/J11
P/J12
P/J14
P/J15
P/J16
P/J17
P/J18
P/J19
P/J220
P/J250 P/J251
P/J201
Interlock Harness Assembly
PL 2.4
Rear Intlk
Switch
LVPS Fan
PL 4.2
2 Drive
Main Drive Assy
PL 4.1
Dispense Motor
PL 3.3
Registration Clutch
PL 2.2
P/J13
Tray Feed Clutch
PL 2.2
Bypass Tray Feed
Solenoid PL 2.6
Exit Clutch Assembly
PL 4.1
Invert Clutch Assy
PL 4.1
3 ROS
ROS Assembly
PL 3.2
Polygon Motor Assy
SOS PWB
LDD PWB
MCU PWB
PL 5.3
5 Fusing
Test Port
Fuser
PL 3.5
DP/DJ233
Rear Fan [Sub Fan]
PL 1.3
Long Heater (2)
Short Heater (1)
Thermostat
Main Temp. Sensor
Side Temp. Sensor
Exit Sensor
PL 2.5
P/J272
Full Stack Sensor
PL 2.5
6 Controller
ESS pwb
PL 5.1
USB Port
Ethernet
Port
Kit Memory
(Option)
PL 5.2
Wireless Adapter
(Option)
PL 5.1
P/J312
SD Card (Option)
PL 5.1
SFP
Console
Assembly
PL 1.4
4 Xero/HVPS
HVPS
PL 5.3
BP Tray No Paper Sensor
Tray No Paper Sensor
Registration Sensor
Temperature Sensor
Humidity Sensor
Toner Cartridge
PL 3.1
Toner CRUM
Connector
PL 3.3
Xerographic Assy
PL 3.1
ATC Sensor
CRUM
CRUM
Xerographic
Connector
PL 3.3
P/J253
P/J254
P/J261 P/J26
P/J25
P/J501
P/J220
Not used
