Service Parts Disassembly
Phaser 3610, WorkCentre 3615 Service Manual4-26
REP 1.15 Top Cover Assembly (3615)
PL 1.2 Covers (3615)
Removal
WARNING: Allow the Fusing Assembly to cool before servicing the product.
1. Remove (REP 1.14 Right Inner Cover (3615)).
2. Remove 2 screws (silver, tapping, 8mm) to remove the Top Cover Assembly. (Figure 1)

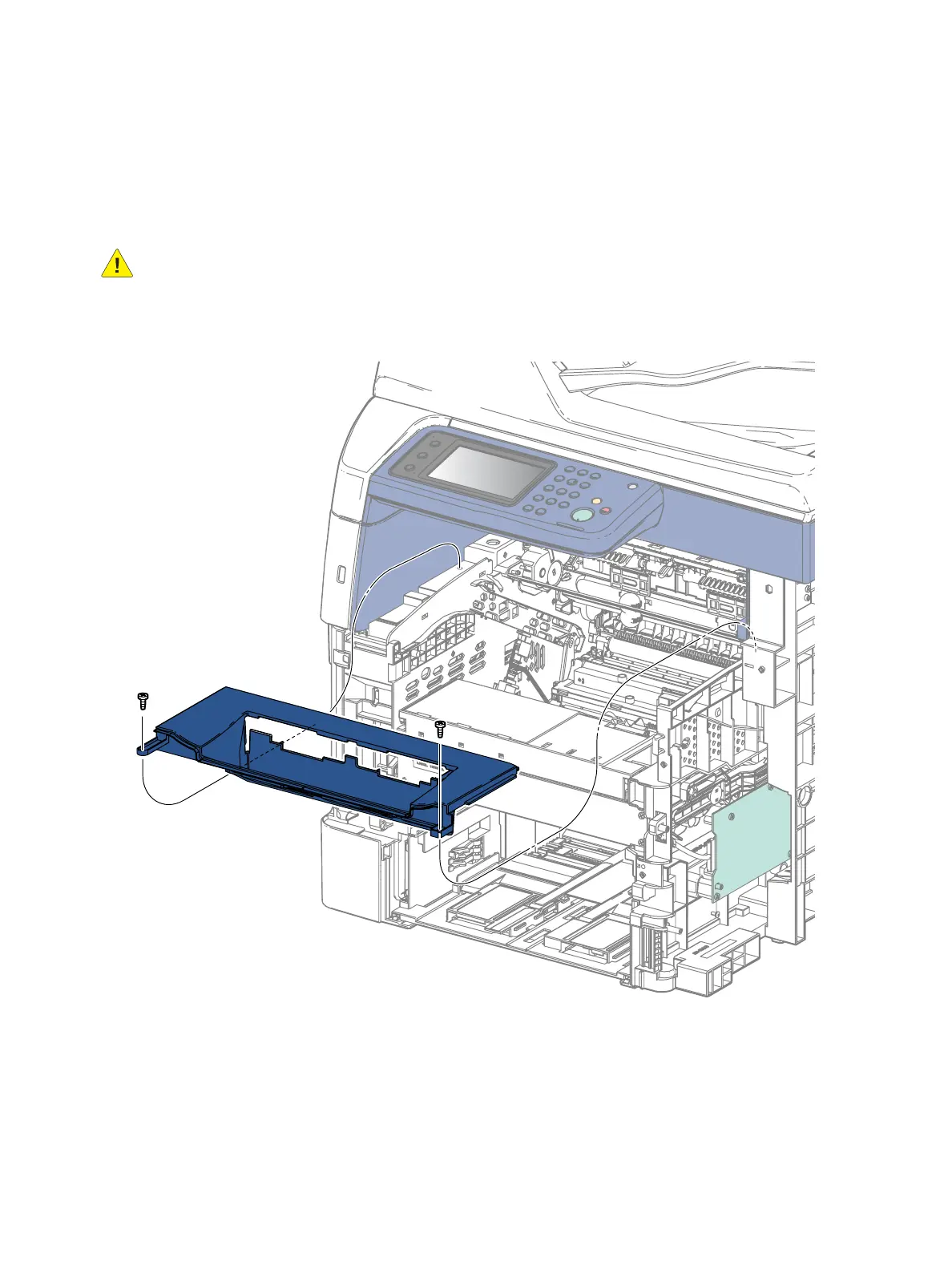

Figure 1
Replacement
1. Hold the actuator so it will fit through the slot as you position the cover for replacement.
2. Replace in reverse order.
s3610-203
