Service Parts Disassembly
Phaser 3610, WorkCentre 3615 Service Manual4-12
REP 1.4 Top Cover Assembly (3610)
Removal
WARNING: Allow the Fusing Assembly to cool before servicing the product.
1. Open the Front Cover.
2. Open the Rear Cover.
3. Remove (REP 1.1 Control Panel (3610))

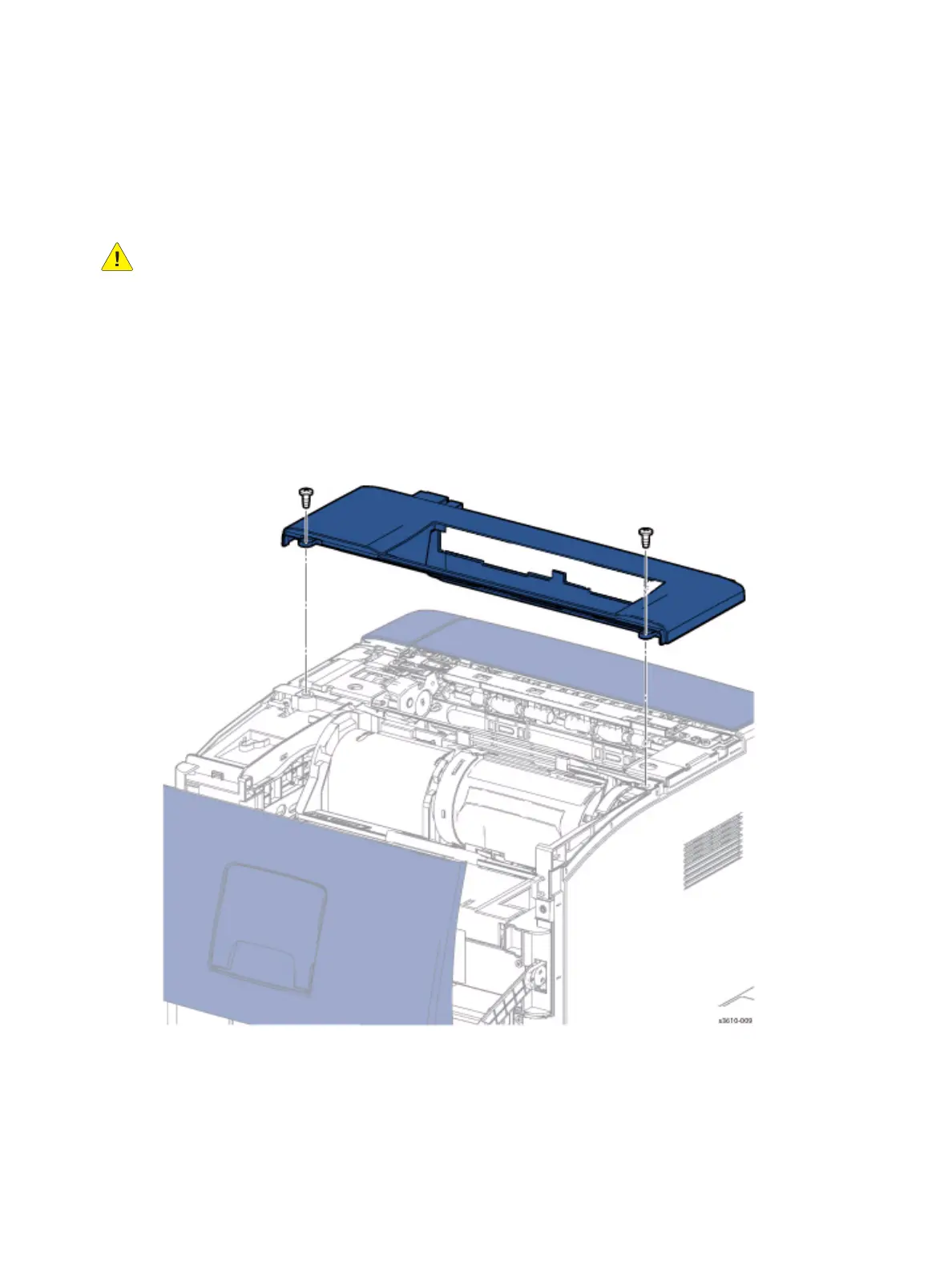

4. Remove the Top Cover Assembly. (Figure 1)
a. Remove 2 screws (silver, tapping, 8mm).
b. Slide the cover to the front of the unit as you lift the cover, making sure not to damage the
actuator, which is located on the under side of the assembly.
Figure 1
Replacement
1. Hold the actuator so it will fit through the slot as you position the cover for replacement.
2. Replace in reverse order.
