Xerox Phaser 3610

Service Parts Disassembly
Phaser 3610, WorkCentre 3615 Service Manual4-6
Covers
REP 1.1 Control Panel (3610)
PL 1.1 Covers (3610)
Removal
1. Open the Front Cover.
2. Remove the Control Panel (Control Panel). (Figure 1)
a. Release 3 clips.
Note: the use of a small flat-head screwdriver may be necessary to release the 2 tabs on the right
of the assembly.
b. Lift the Control Panel to access the connector and disconnect P/J220.

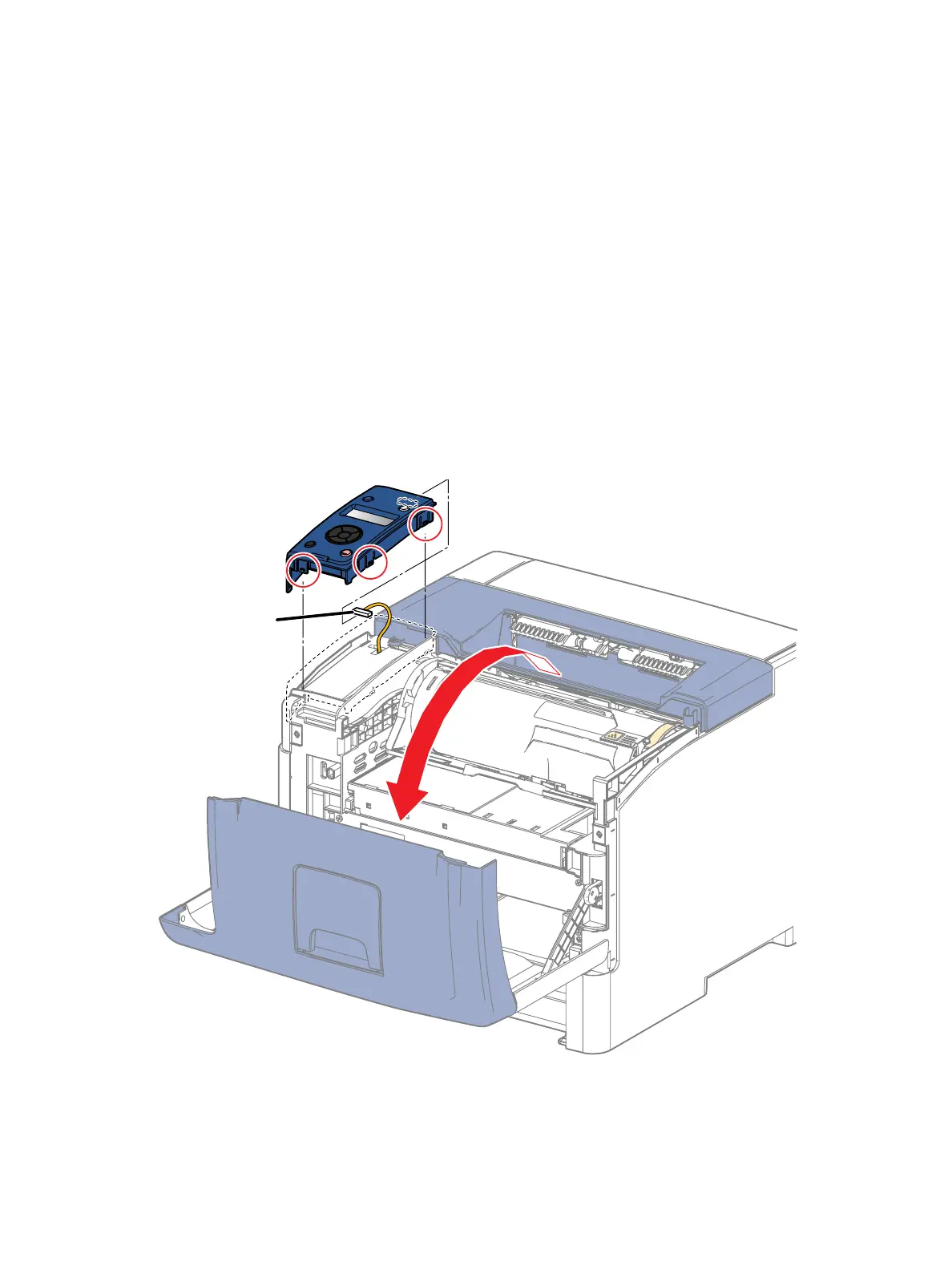

Figure 1
Replacement
1. Replace in reverse order.
s3610-06
2
P/J220
a)
b)
