Xerox Phaser 3610

Service Parts Disassembly
Phaser 3610, WorkCentre 3615 Service Manual 4-121
REP 7.2 Left Side Cover
PL 7.1 Tray 1/Optional Tray 550-Sheet Feeder (1/4)
Removal
1. Remove the Tray from the 550-Sheet Feeder.
2. Remove (REP 7.1 550-Sheet Feeder).

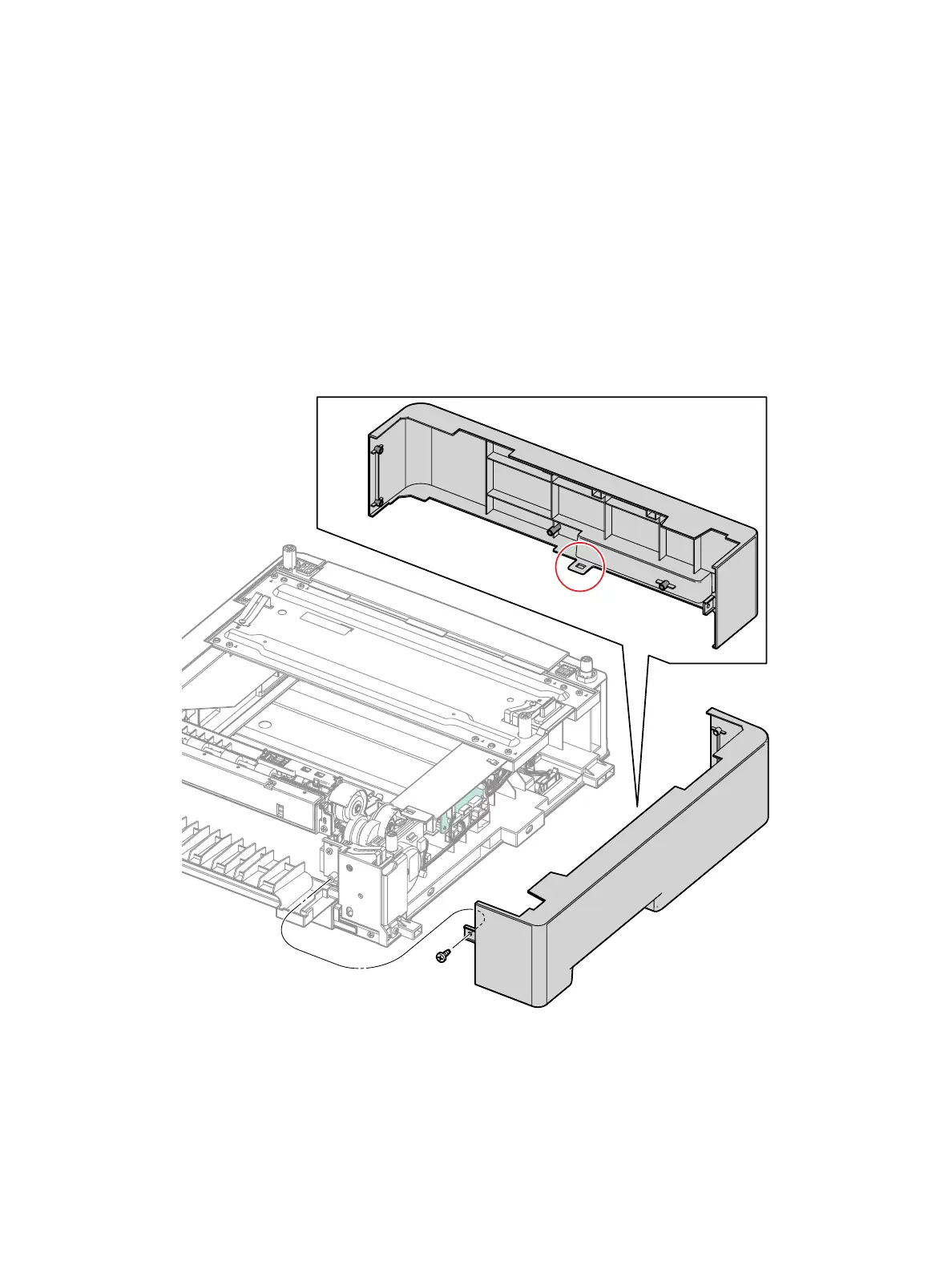

3. Remove the Left Cover. (Figure 1)
a. Remove 1 screw (silver, tapping, 8mm),
b. Release 1 clip.
c. Release 6 bosses from the holes to remove the Left Cover.
Figure 1
Replacement
1. Replace in reverse order.
s3610-11
0
b)
c)
a)
