Service Parts Disassembly
Phaser 3610, WorkCentre 3615 Service Manual4-22

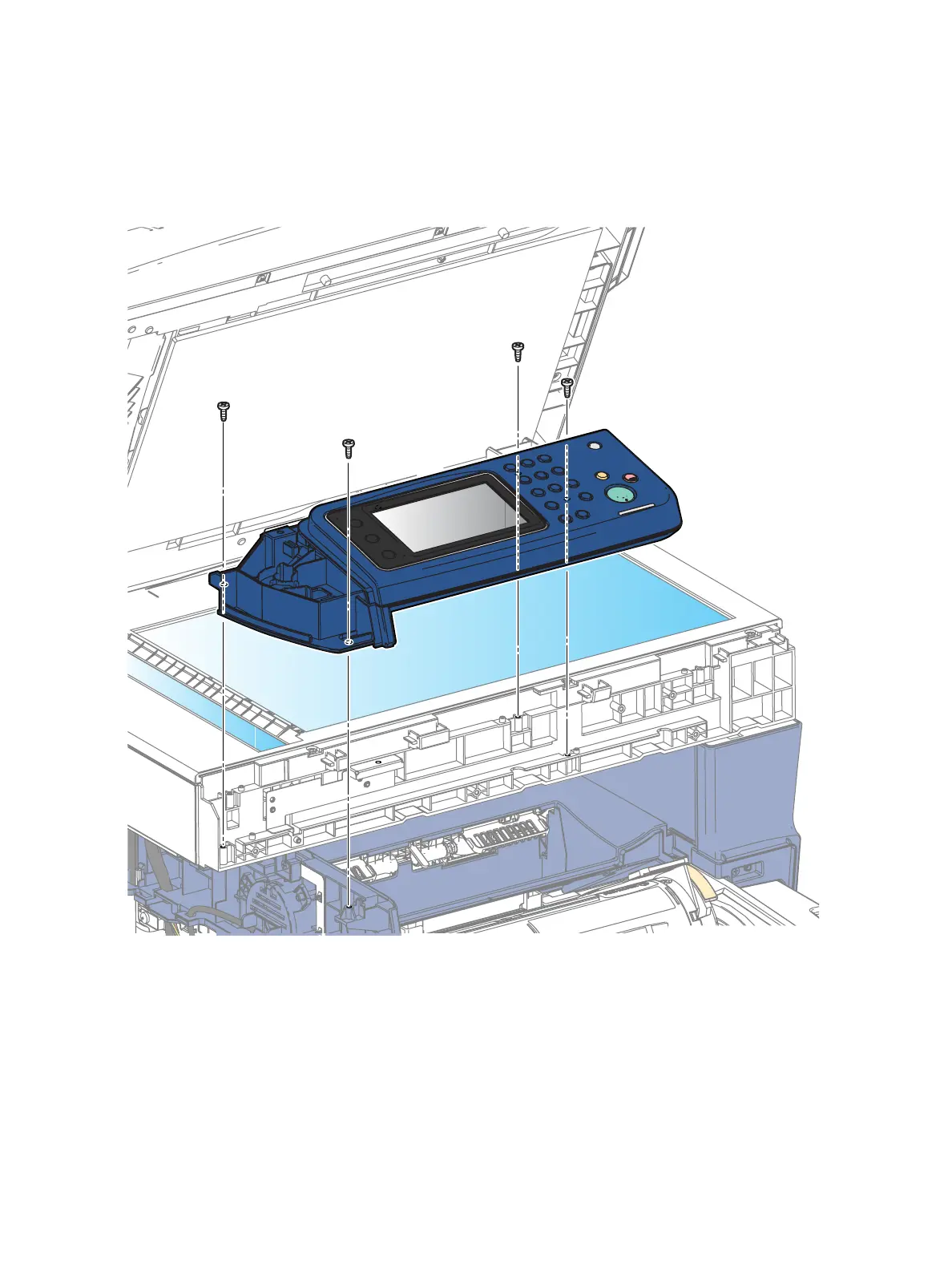

4. Remove the Control Panel (Control Panel). (Figure 2)
a. Remove 4 screws (silver, tapping, 8mm).
b. Remove 1 screw (silver, M6) screws.
c. Lift up on the Control Panel to remove.
Figure 2
Replacement
1. Replace in reverse order.
s3610-10
To Next Page
