Xerox Phaser 3610 - Page 564

Service Parts Disassembly
Phaser 3610, WorkCentre 3615 Service Manual4-102
3. (3610) Remove the ESS Housing. (Figure 2)
a. Remove 6 screws (silver, M3, 6mm) that secure the ESS Housing,
b. Release 2 tabs from the frame.
c. Remove the ESS Housing.

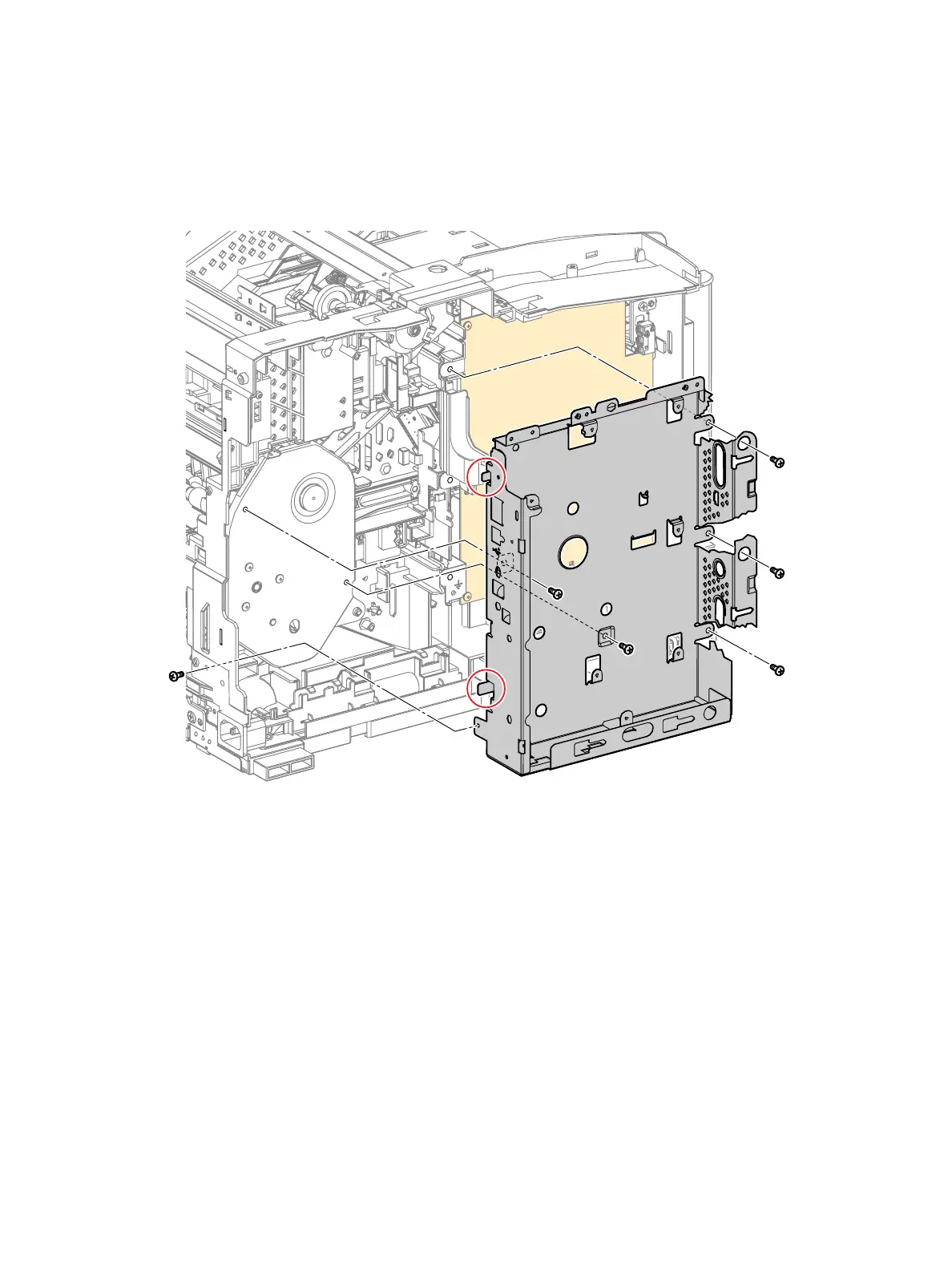

Figure 2
s3610-047
b)
c)
a)
