Service Parts Disassembly
Phaser 3610, WorkCentre 3615 Service Manual 4-103

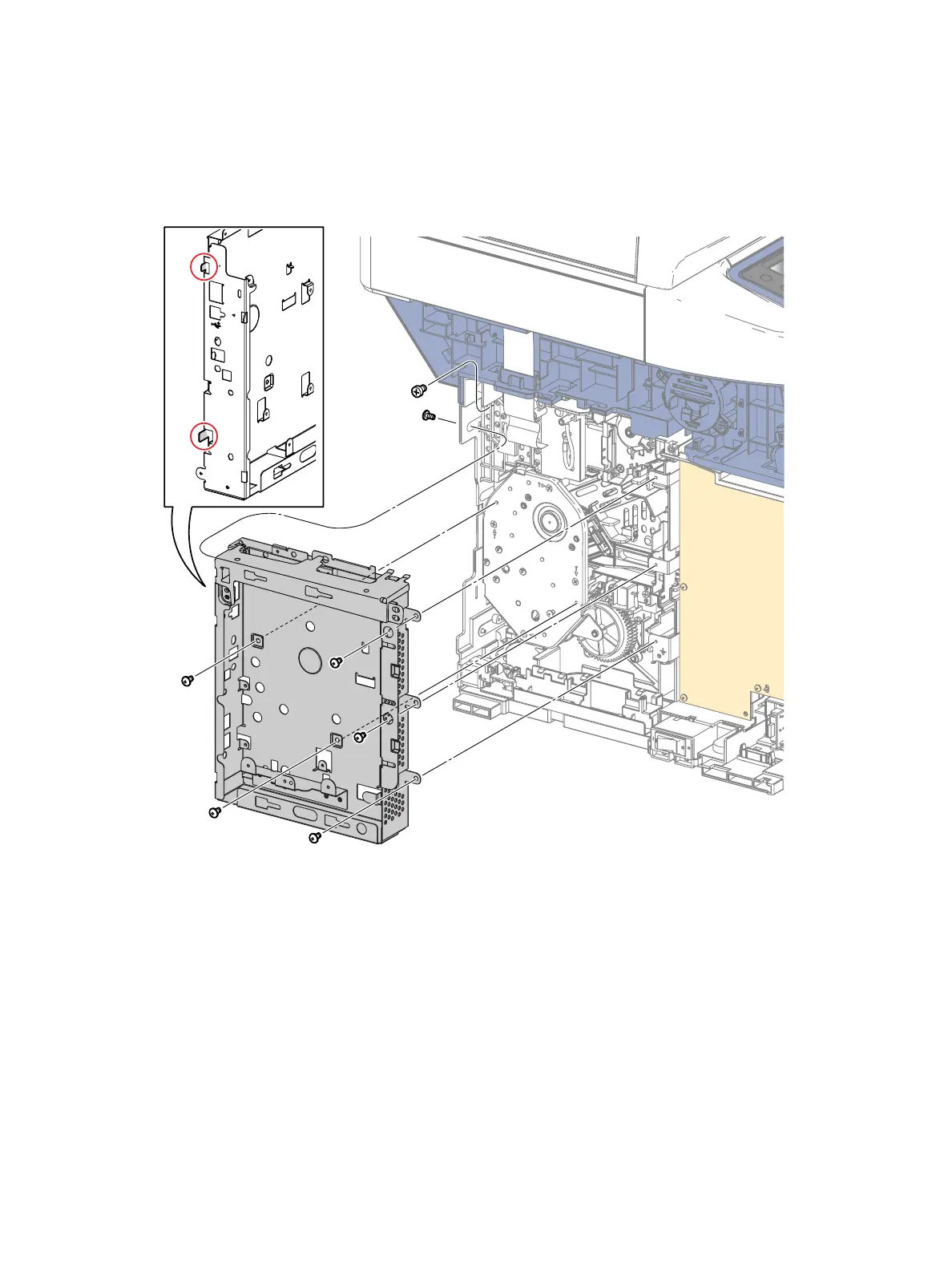

4. (3615) Remove the ESS Housing. (Figure 2)
a. Remove 6 screws (silver, M3, 6mm) that secure the ESS Housing,
b. Release 2 tabs from the frame.
c. Remove the ESS Housing.
Figure 3
Replacement
1. Replace in reverse order.
