Xerox Phaser 3610

Service Parts Disassembly
Phaser 3610, WorkCentre 3615 Service Manual4-8
2. Remove the Front Cover Assembly. (Figure 2)
a. Open the Front Cover Assembly.
b. Release 2 clips from the cover links.
c. Release 2 bosses to remove the cover. Release the right side first and move the cover to the
right.

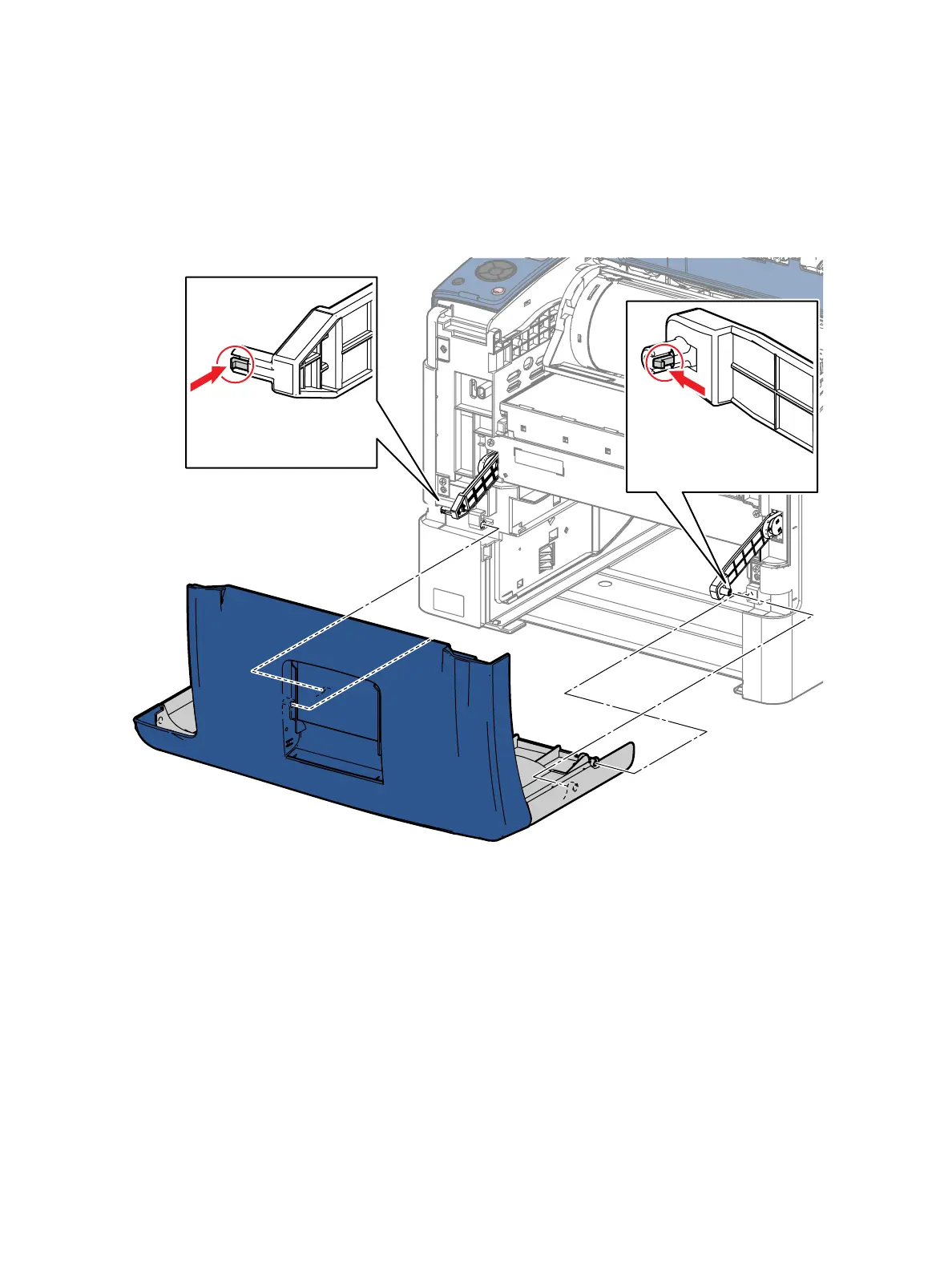

Figure 2
s3610-002
a)
b)
c)
b)
c)
