Service Parts Disassembly
Phaser 3610, WorkCentre 3615 Service Manual 4-41

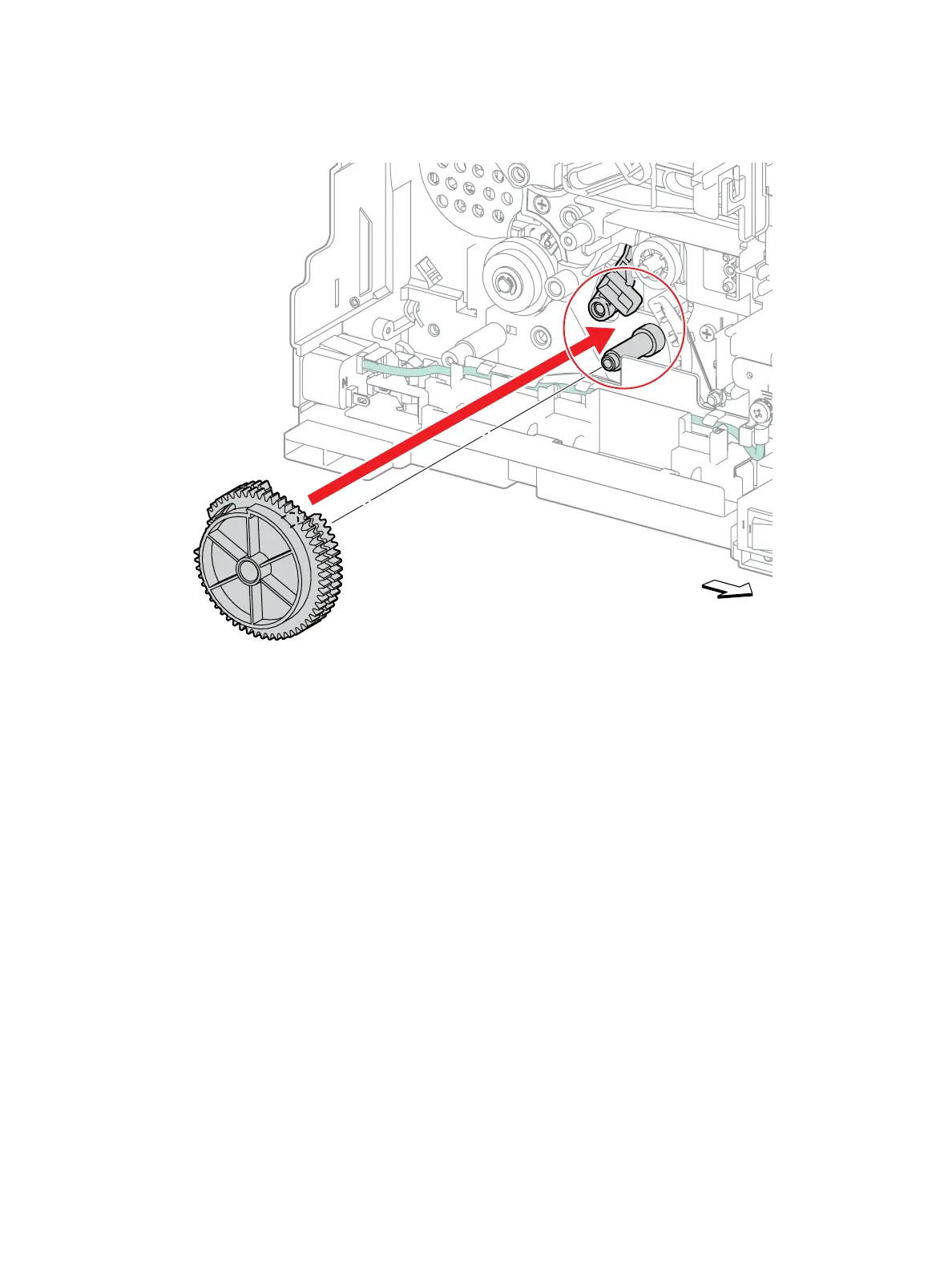

5. When installing the Feed Gear, ensure the actuator engage the Feed Gear. (Figure 12)
Figure 12
s3610-024
Front
