Xerox Phaser 3610

Service Parts Disassembly
Phaser 3610, WorkCentre 3615 Service Manual 4-97

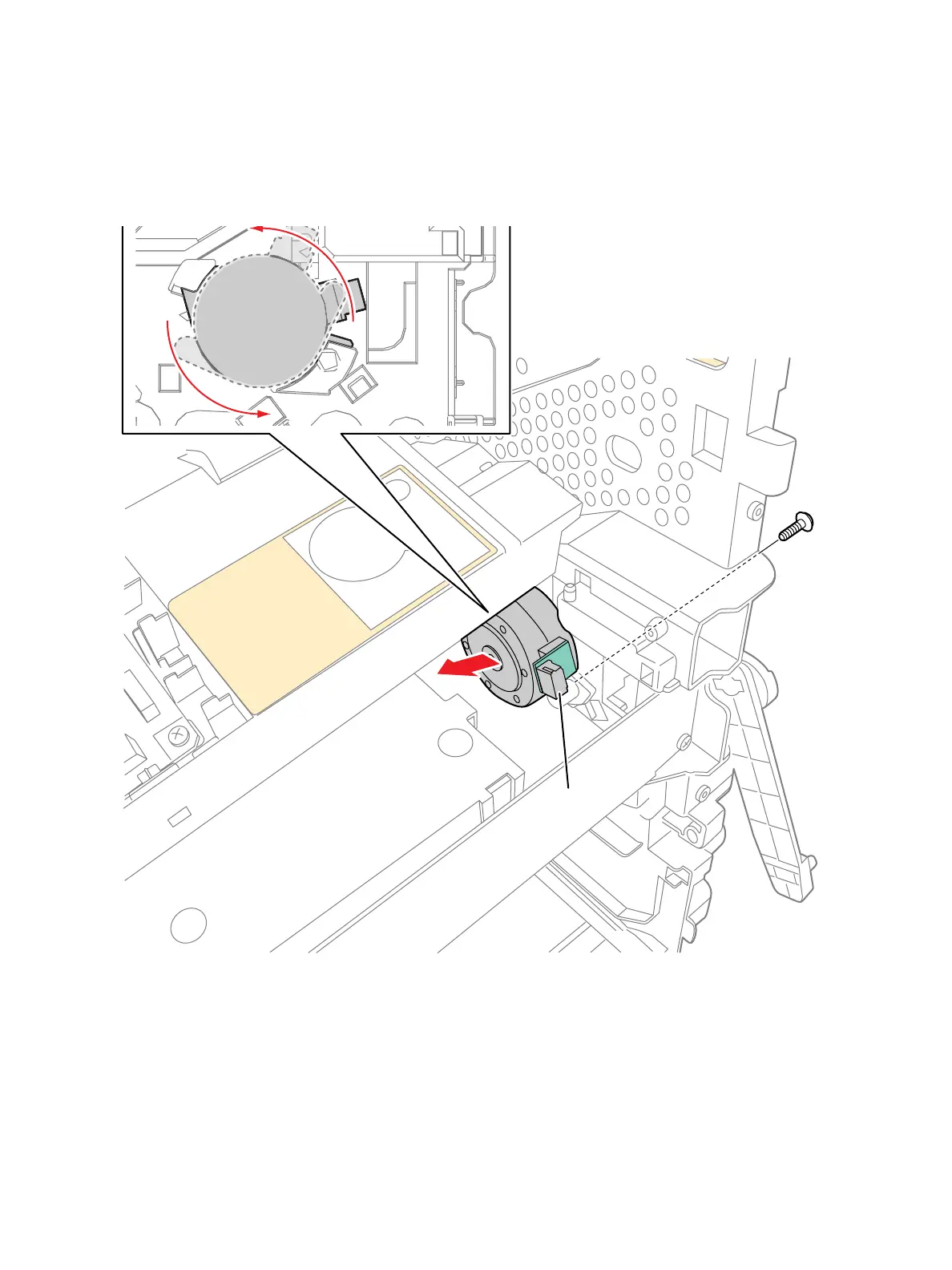

11. Remove the Toner Dispense Motor. (Figure 4)
a. Remove 1 screw (silver, tapping, 8mm).
b. Disconnect P/J111.
c. Rotate to remove the motor from the chassis.
Figure 4
Replacement
1. Make sure the MCU PWB Housing is seated correctly on the pins so it can be rotated back into the
proper position.
2. Replace in reverse order.
s3610-061
P/J111
b)
c)
a)
