Xerox Phaser 3610

Service Parts Disassembly
Phaser 3610, WorkCentre 3615 Service Manual 4-99
5. For the 3615, Remove the Fax PWB (REP 5.4 Fax PWB)
6. Remove the ESS PWB. (Figure 2)
a. Remove 4 screws and the ESS Top Plate.
b. Remove the Earth Wire.
c. Remove 8 screws (silver, M3, 6mm) and 1 screw (silver, M3, 4mm) that secure the ESS PWB to
the chassis.

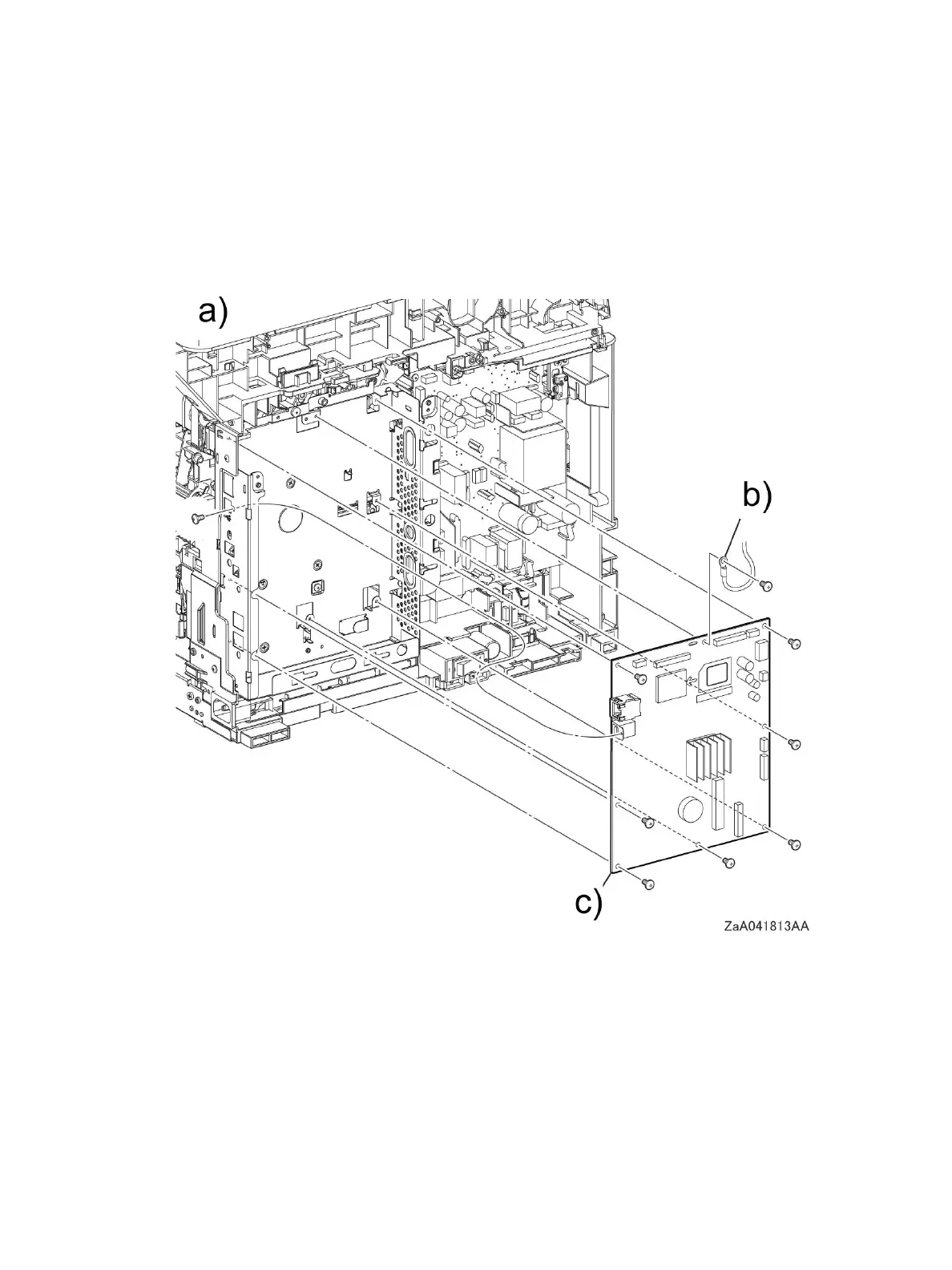

Figure 2
