Xerox Phaser 3610

Service Parts Disassembly
Phaser 3610, WorkCentre 3615 Service Manual 4-109
Replacement

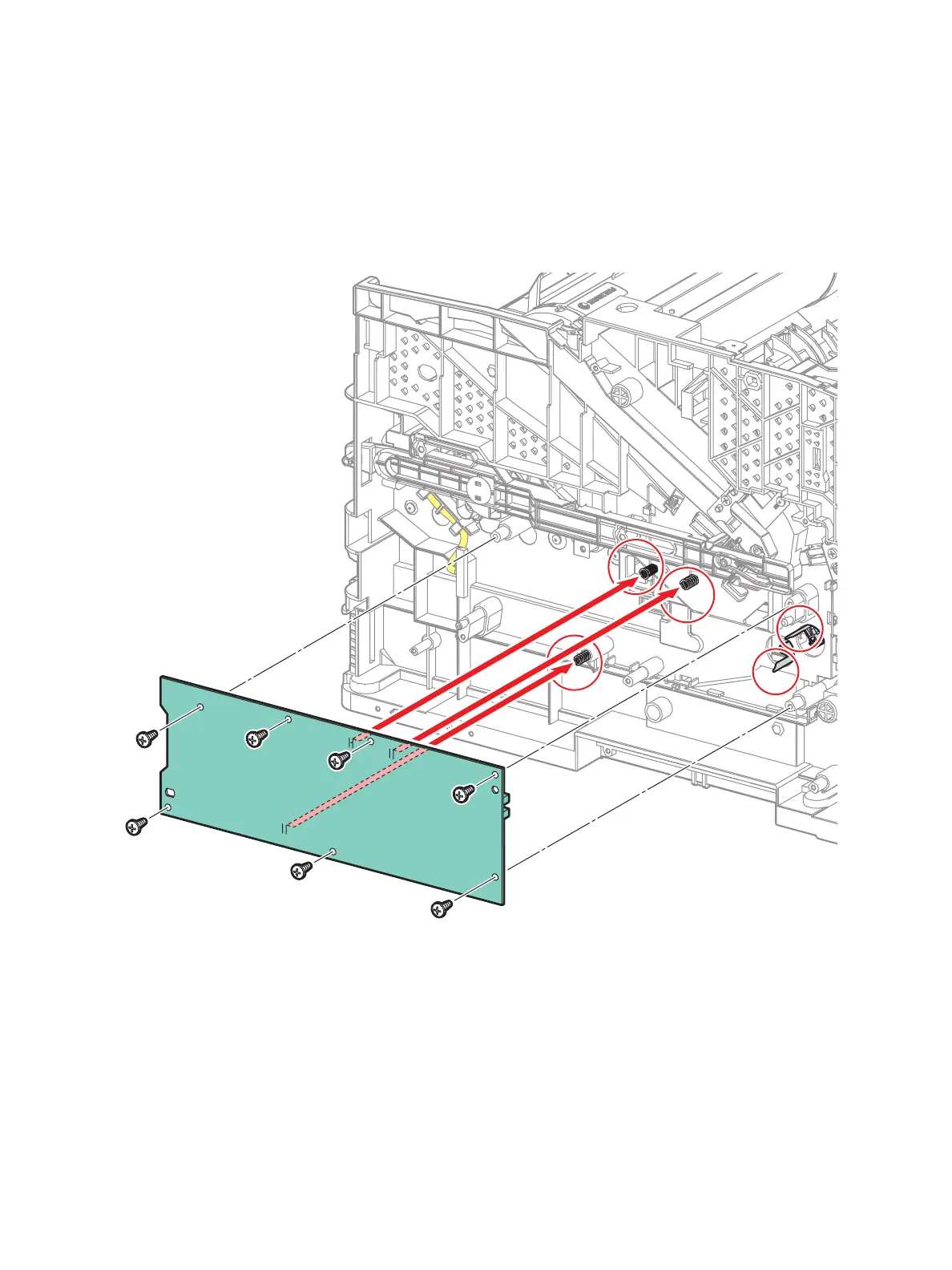

1. When installing the HVPS, confirm: (Figure 2)
a. the 2 Registration Sensor Shutters are correctly positioned.
b. the ends of the 3 conductive springs on the chassis are in contact with the terminals on the
PWB.
c. the PWB is secured on the bosses.
Figure 2
2. Replace in reverse order.
s3610-073
b)
c)
a)
