Xerox Phaser 3610

Service Parts Disassembly
Phaser 3610, WorkCentre 3615 Service Manual 4-111
Replacement

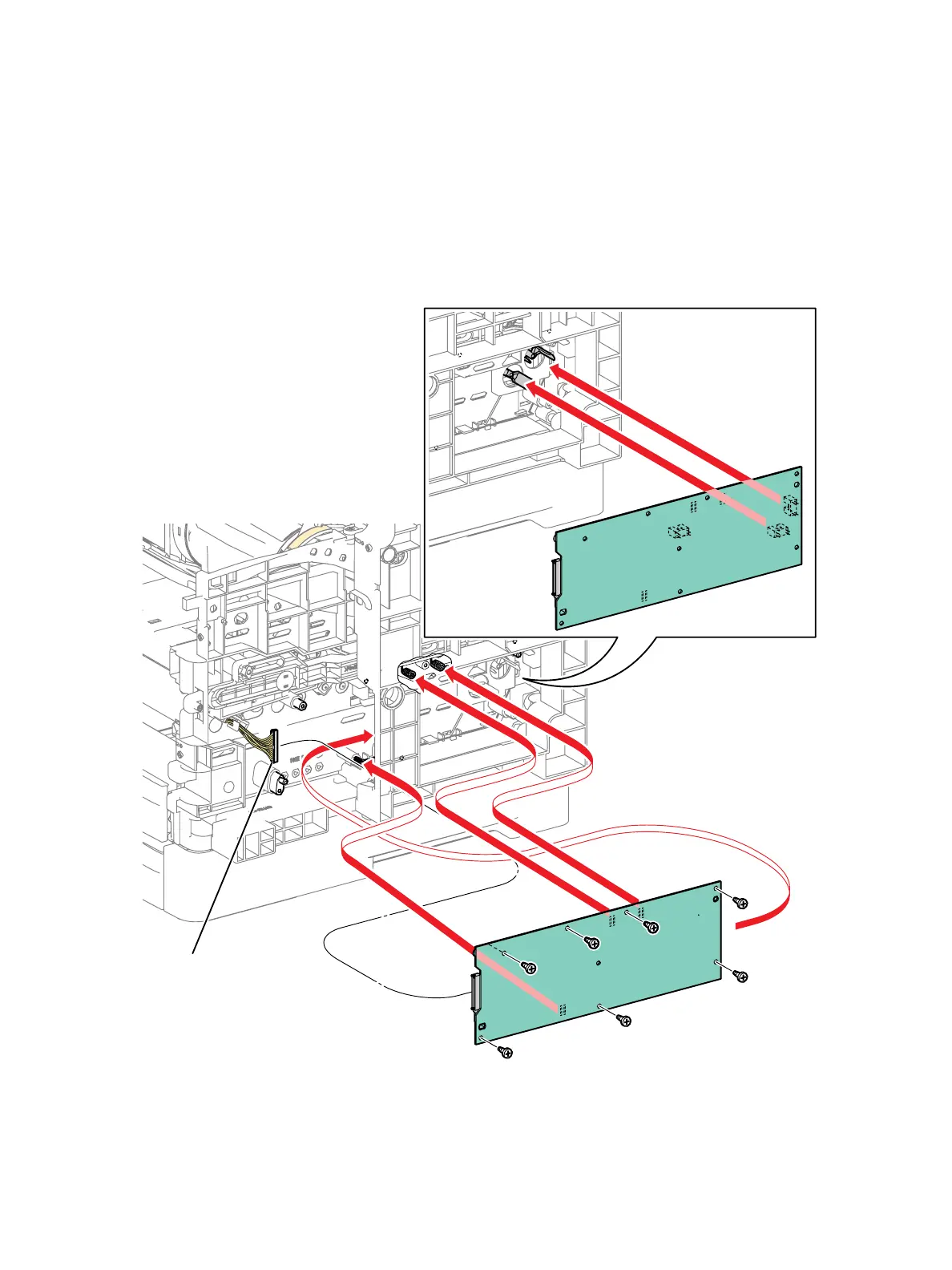

1. When installing the HVPS, confirm: (Figure 2)
a. the 2 Registration Sensor Shutters are correctly positioned.
b. P/J 261 is connected.
c. the ends of the 3 conductive springs 3 on the chassis are in contact with the terminals on the
PWB.
d. the PWB is seated properly on the bosses.
Figure 2
2. Replace in reverse order.
s3610-181
P/J261
b)
c)
a)
d)
