Zynq-7000 AP SoC and 7 Series FPGAs MIS v4.1 23
UG586 November 30, 2016
www.xilinx.com
Chapter 1: DDR3 and DDR2 SDRAM Memory Interface Solution

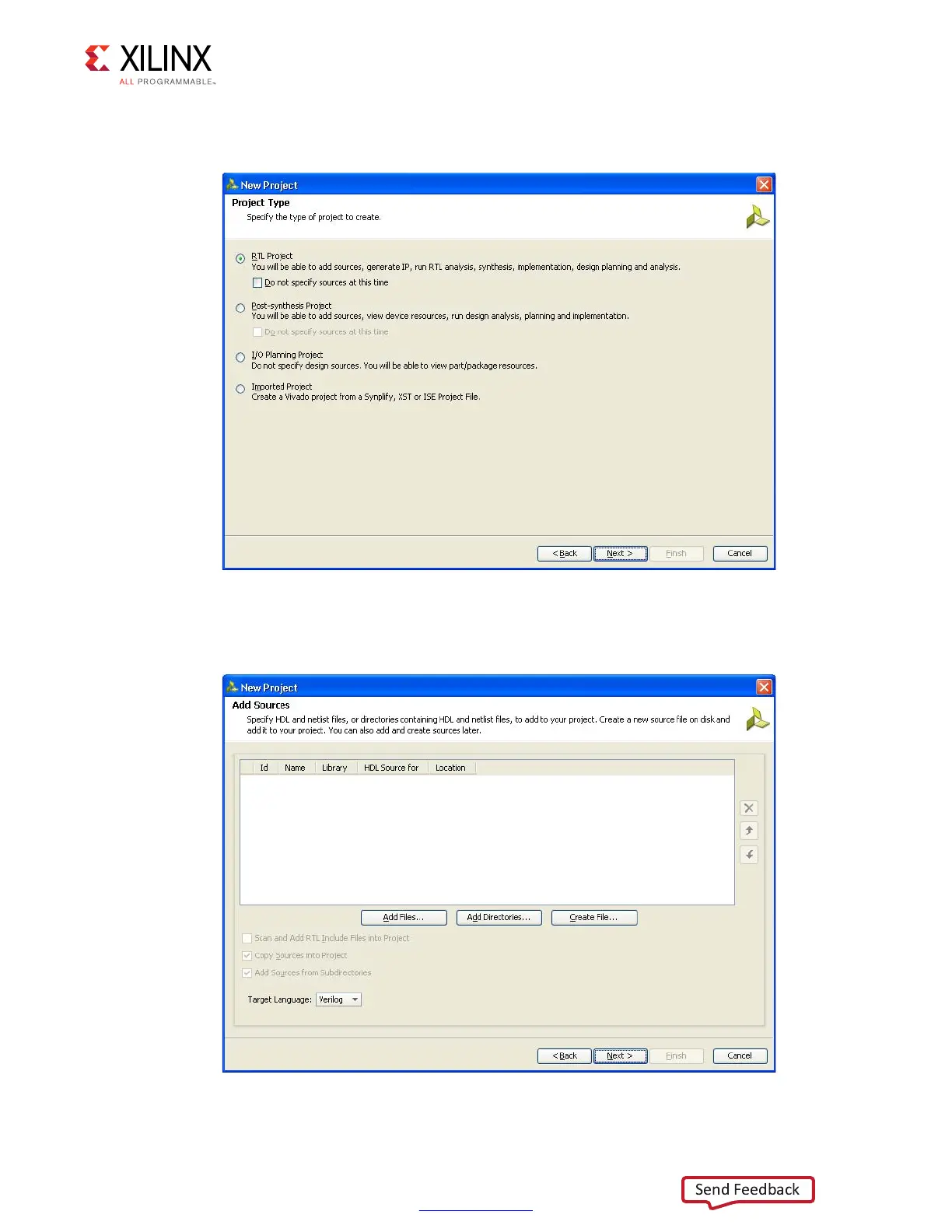

4. Click Next to proceed to the Project Type page (Figure 1-4). Select the Project Type as
RTL Project because MIG deliverables are RTL files.
5. Click Next to proceed to the Add Sources page (Figure 1-5). RTL files can be added to
the project in this page. If the project was not created earlier, proceed to the next page.
X-Ref Target - Figure 1-4
Figure 1-4: Project Type
X-Ref Target - Figure 1-5
Figure 1-5: Add Sources
