Chapter 3: RLDRAM II and RLDRAM 3 Memory Interface Solutions
11. Click IP Catalog on the Project Manager window to open the Vivado IP catalog
window. The IP catalog window appears on the right side panel (see Figure 3-12,
highlighted in a red circle).
12. The MIG tool exists in the Memories & Storage Elements > Memory Interface
Generators section of the IP catalog window (Figure 3-12) or you can search from the
Search tool bar for the string “MIG.”
X-Ref Target - Figure 3-12

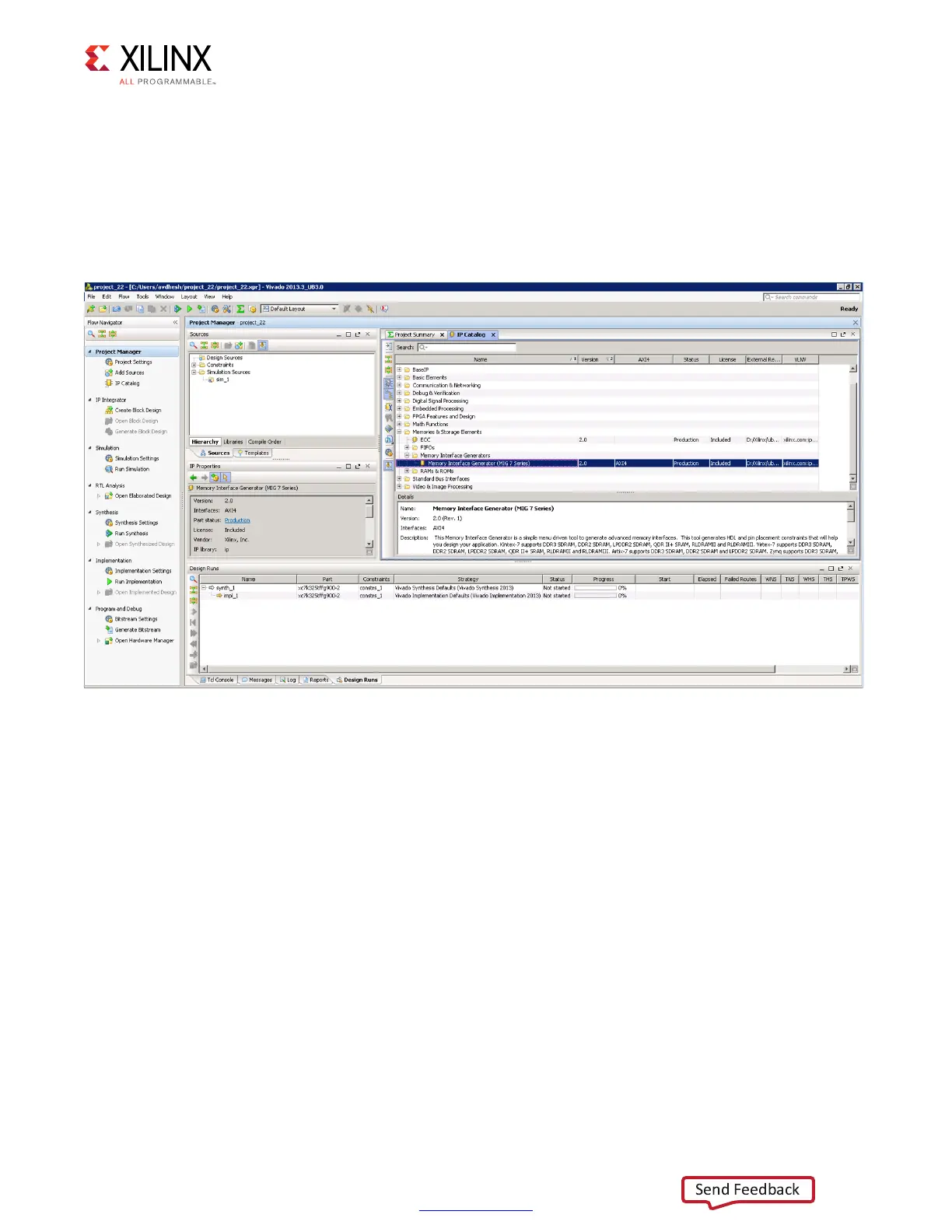

Figure 3-12: IP Catalog Window – Memory Interface Generator
