Chapter 4:
LPDDR2 SDRAM Memory Interf
ace Solution
9.
Click
Next
to open the
New Project Summa
ry
page (
Figure
4-11
). This includes the
summary of selected proje
ct details.
10.
Click
Finish
to complete the project creation.

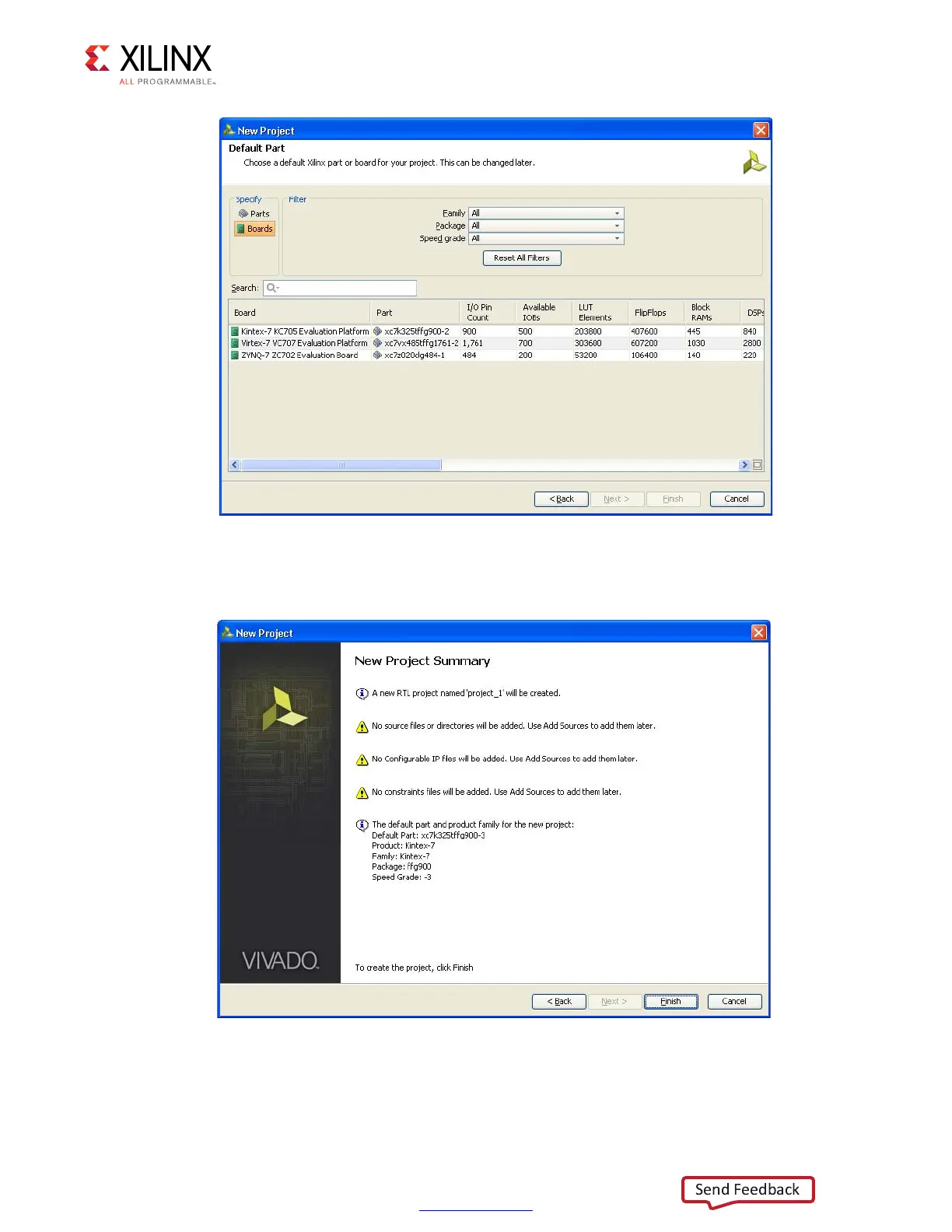

X-Ref Target - Figure 4-10
Figure 4-10:
Default P
art Boards Option
X-Ref Target - Figure 4-11
Figure 4-11:
New Project S
ummary
