Yamaha F400A 2022 - Page 327

Flywheel magneto
7-27

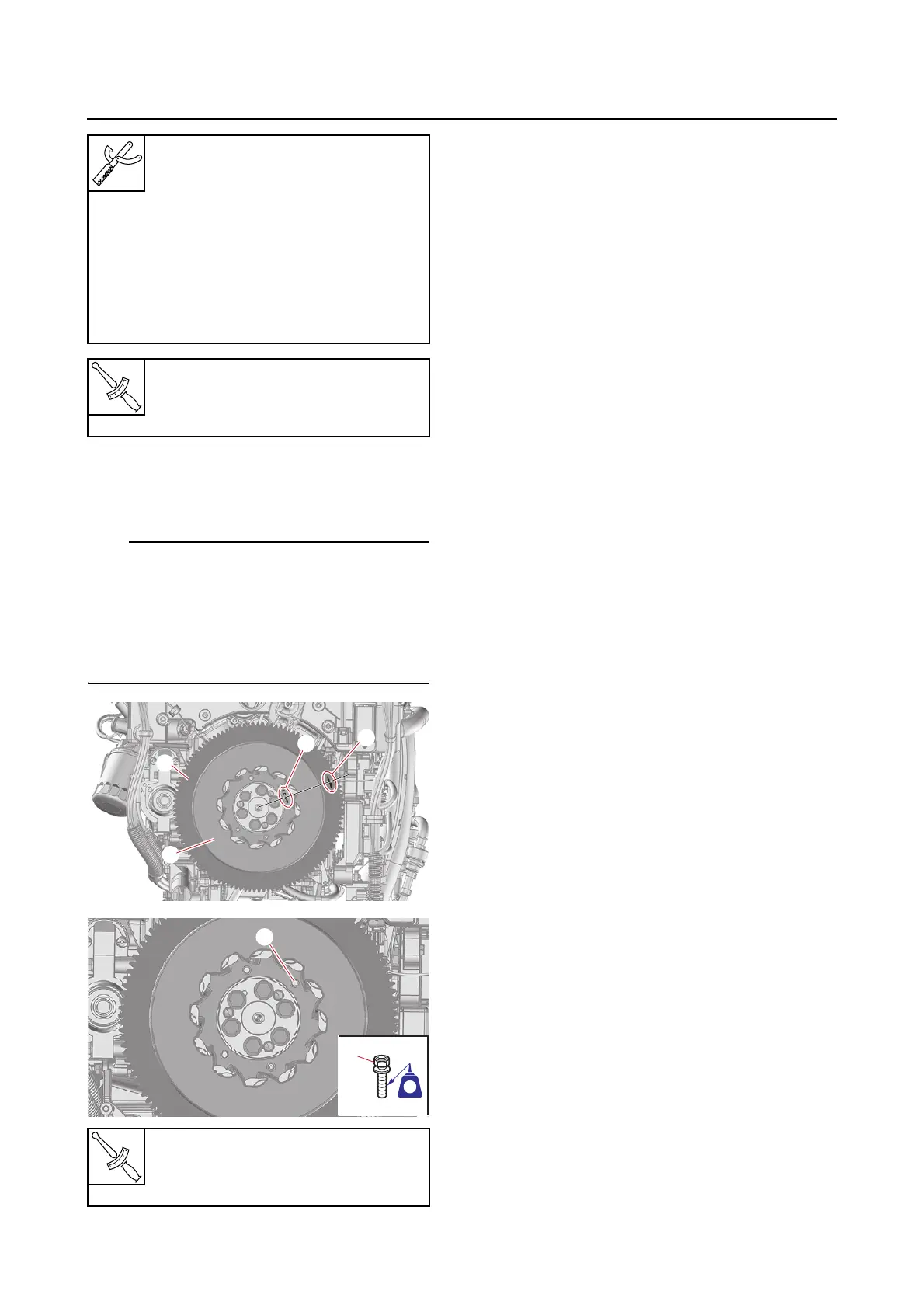

3. Install:
• Flywheel magneto fan “1”
• Air shroud
TIP:
• Align the “8.0 N·m” mark “a” on the flywheel
magneto fan “1” with the mark “b” on the fly-
wheel magneto “2”.
• Tighten the flywheel magneto fan bolts “3”
to the specified torques in 2 stages and in
the order [1], [2], and so on.
4. Install:
• Intake manifold (PORT)
See “Intake manifold” (6-24).
• Fuel hose assembly
See “Fuel hose assembly” (6-12).
• Intake silencer
See “ETV” (6-28).
Rotor holder “2”
90890-01235
Flywheel stopper “3”
90890-06598
Universal magneto and rotor
holder “2”
YU-01235
Flywheel stopper “3”
YB-06598
T
R
.
.
Flywheel magneto bolt “1”
1st: 40 N·m (4.0 kgf·m, 30 lb·ft)
2nd: 90°
T
R
.
.
Flywheel magneto fan bolt “3”
1st: 8 N·m (0.8 kgf·m, 5.9 lb·ft)
2nd: 8 N·m (0.8 kgf·m, 5.9 lb·ft)
a
2
1
b
242242
LTLT
3
3
[3][3][3]
[2][2][2]
[1][1][1]
[4][4][4]
[3][3]
[2][2]
[1][1]
[4][4]
