Yamaha F400A 2022 - Page 328

7-28

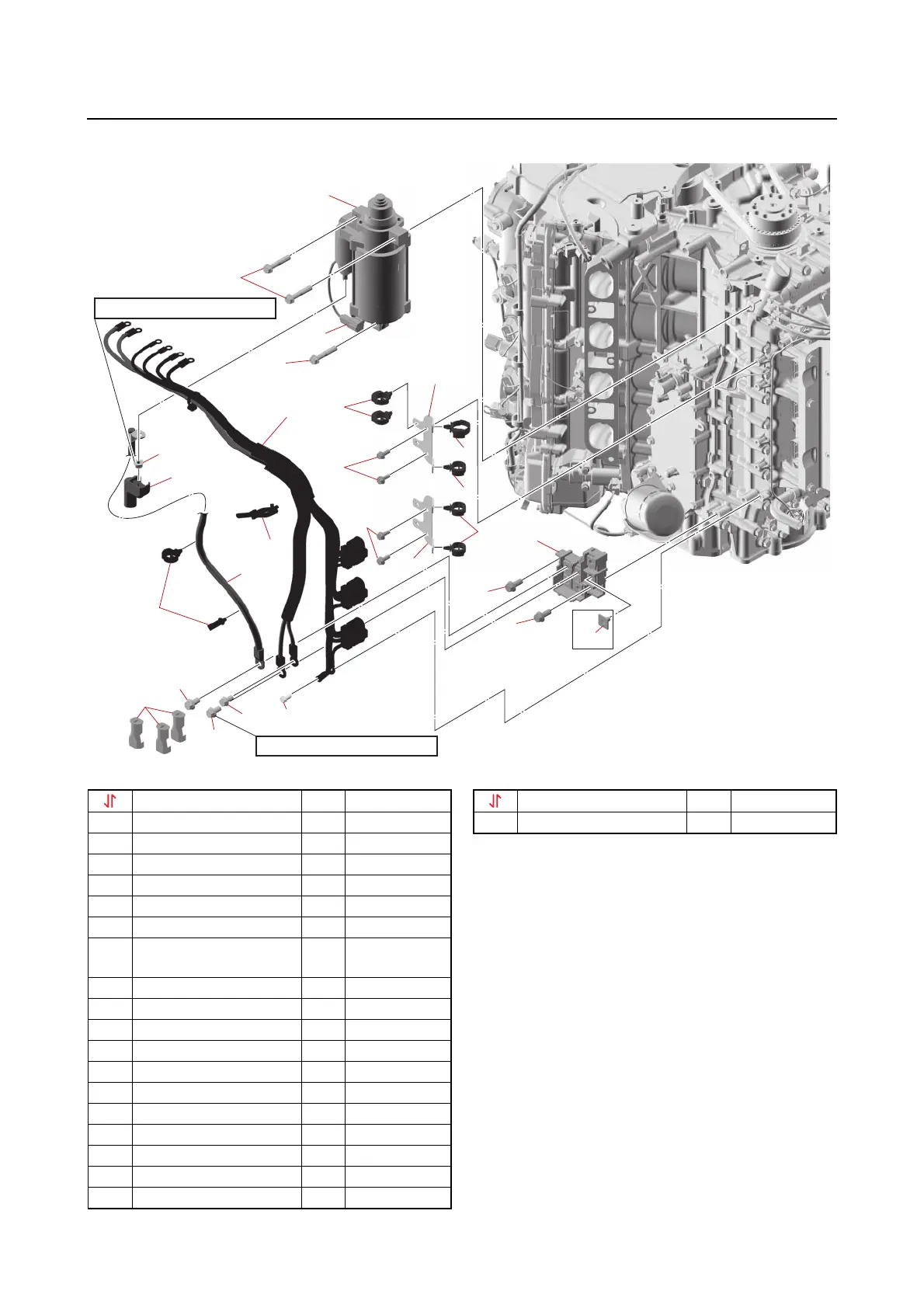

Starter motor and extension wire harness
Starter motor and extension wire harness
A. When an isolator lead is not installed.
3
19
19
13
14
12
13
1
7
11
8
10
9
4
4
4
5
18
3
2
3
18
6
15
15
16
17
A
11 N
·
m (1.1 kgf
·
m, 8.1 lb
·ft
)
11 N
·
m (1.1 kgf
·
m, 8.1 lb
·ft
)
Part name
Q
’ty
Remarks
1 Plastic tie 1
2Holder 1
3Holder 5
4Bolt M8
× 16 mm 3
5Cap 3
6Bolt M6
× 16 mm 1
7
Extension wire har-
ness
1
8Holder 2
9Nut M8 1
10 Cap 1
11 Cable 1
12 Coupler 1
13 Bolt M8
× 45 mm 3
14 Starter motor 1
15 Bolt M8
× 20 mm 2
16 Terminal 1
17 Cover 1
18 Bolt M6
× 16 mm 4
19 Bracket 2
Part name
Q
’ty
Remarks
