Yamaha F400A 2022 - Page 337

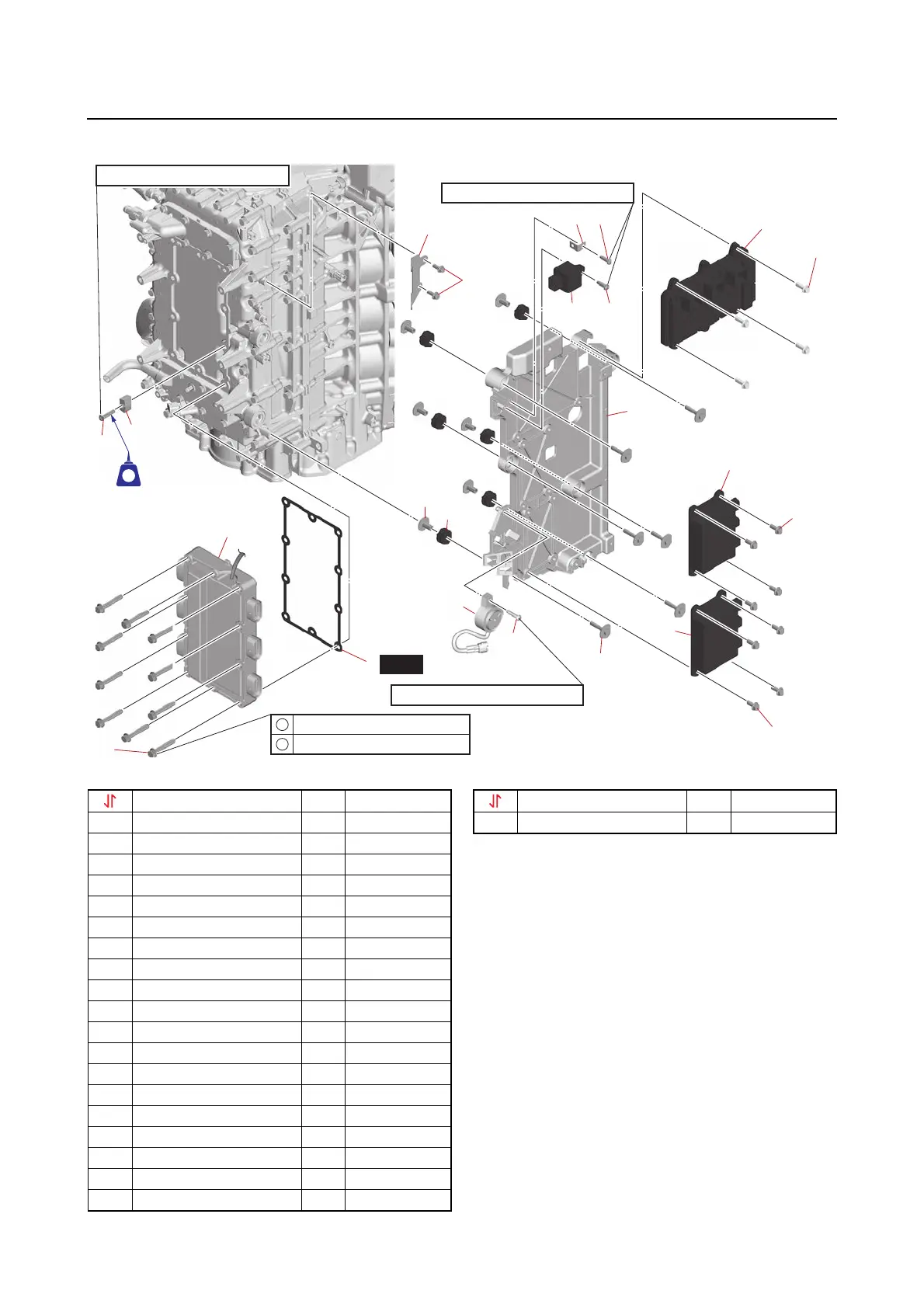

ECM, injector driver, and rectifier/regulator
7-37
ECM, injector driver, and rectifier/regulator
4
1
2
20
17
18
15
9
16
11 10
7
6
12 10
9
8
8
19
5
3
New
13
14
2.5 N
·
m (0.25 kgf
·
m, 1.8 lb
·ft
)
3.9 N
·
m (0.39 kgf
·
m, 2.9 lb
·ft
)
14 N
·
m (1.4 kgf
·
m, 10 lb
·ft
)
28 N
·
m (2.8 kgf
·
m, 21 lb
·ft
)
1
2
1.7 N
·
m (0.17 kgf
·
m, 1.3 lb
·ft
)
242242
LTLT
Part name
Q
’ty
Remarks
1Bolt M8
× 50 mm 10
2 Rectifier/regulator 1
3Gasket 1
4Screw M6
× 25 mm 1
5Anode 1
6Bolt M6
× 20 mm 4
7ECM 1
8Bolt M6
× 16 mm 8
9 Injector driver 2
10 Screw M6
× 20 mm 2
11 Bracket 1
12 Relay 1
13 Screw M6
× 25 mm 1
14 Buzzer 1
15 Bolt M6
× 35 mm 6
16 Bracket 1
17 Collar 6
18 Grommet 6
19 Bolt M6
× 16 mm 2
20 Bracket 1
Part name
Q
’ty
Remarks
