Timing belt
7-45

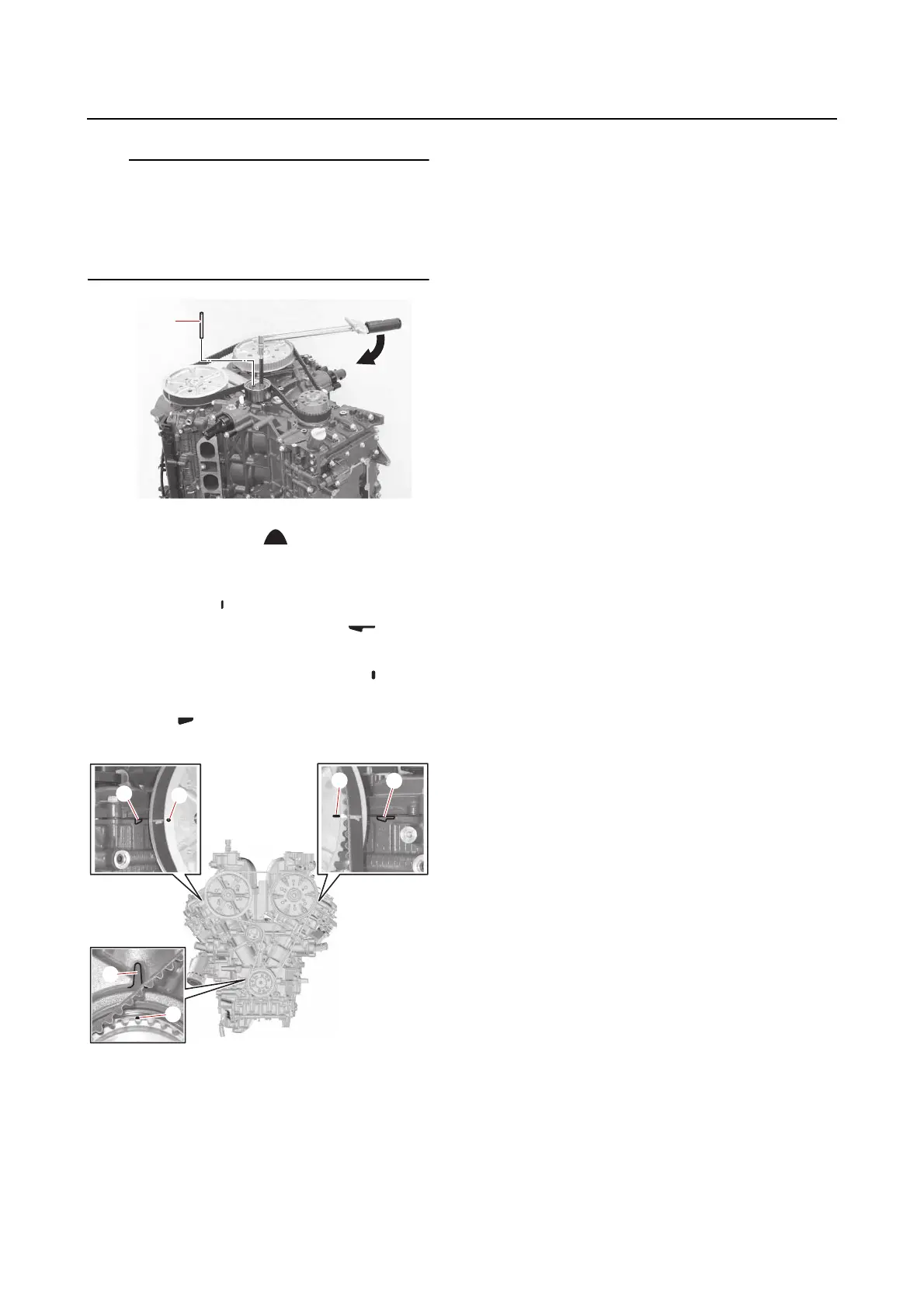

TIP:
• When turning the timing belt tensioner, apply
a force of 15 N·m (1.5 kgf·m, 11 lb·ft) or less.
• Make sure that the belt position marks are
aligned with the marks on the crankshaft and
driven sprockets. See steps (a) and (b).
f. Turn the crankshaft clockwise 2 full
turns until the “ ” mark “a” on the
crankshaft is aligned with the protru-
sion “b” on the cylinder block. Check
that the “ ” mark “c” on the driven
sprocket (PORT) and the “ ” mark
“d” on the cylinder head (PORT) are
aligned, and check that the “ ” mark
“e” on the driven sprocket (STBD) and
the “ ” mark “f” on the cylinder head
(STBD) are aligned.
2. Install:
• Brackets
•Grommets
•Collars
• Wire harness guide
11
a
b
f
d
e
c
