Cylinder block
7-95

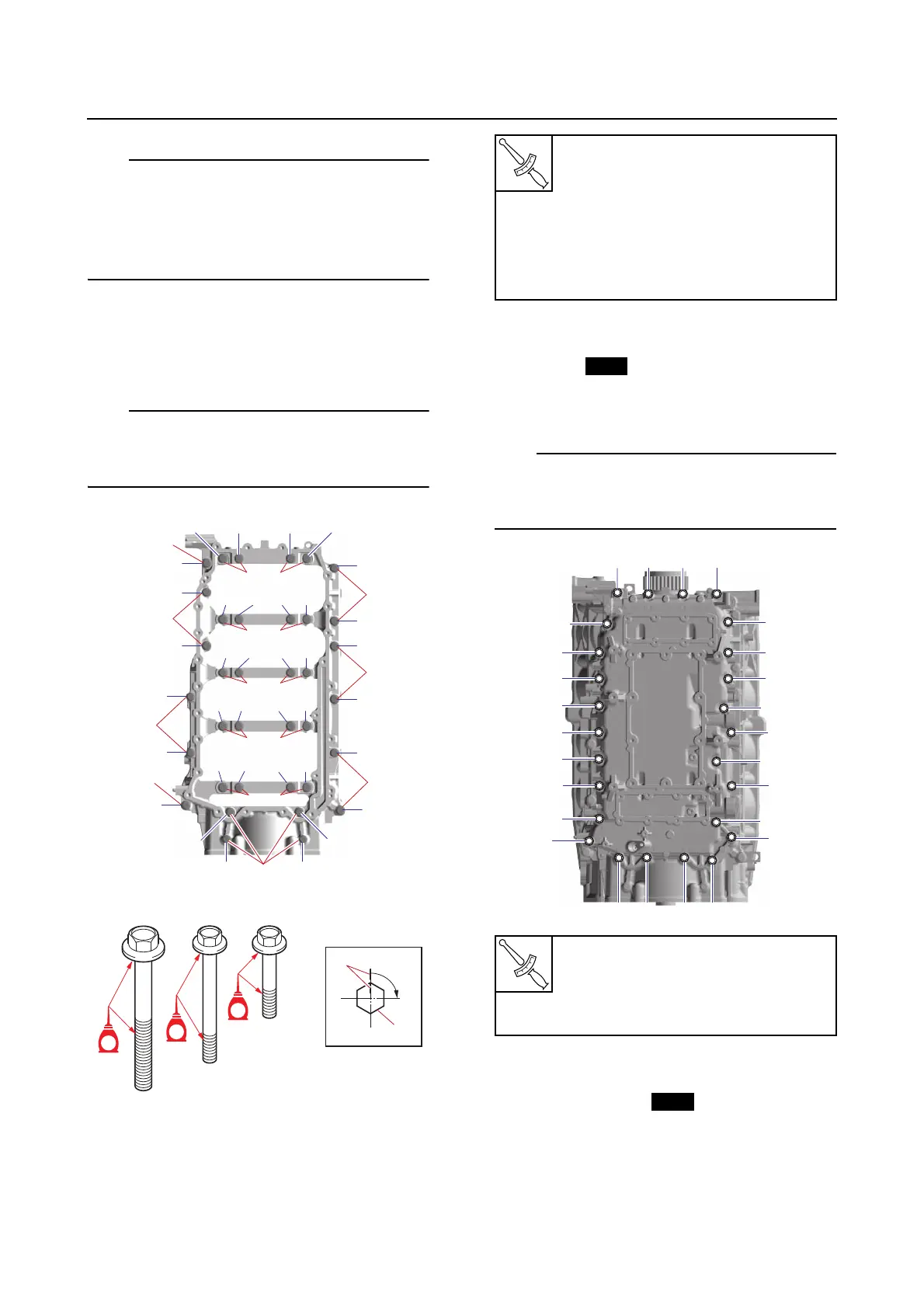

TIP:
In the second tightening stage for the M10
bolts “1”, mark the M10 bolts and the crank-
case with identification marks “a”, and then
tighten the bolts 90° from the marks on the
crankcase.
e. Tighten the crankcase bolts (M8) “2”
and “3” to the specified torques in 2
stages and in the order [21], [22], and
so on.
TIP:
After tightening the crankcase bolts “1”, “2”
and “3”, make sure that the crankshaft turns
smoothly.
9. Install:
•Dowels
•Gasket
• Crankcase cover
• Crankcase cover bolts
TIP:
Tighten the crankcase cover bolts to the spec-
ified torques in 2 stages and in the order [1],
[2], and so on.
10. Install:
•Flange “1”
