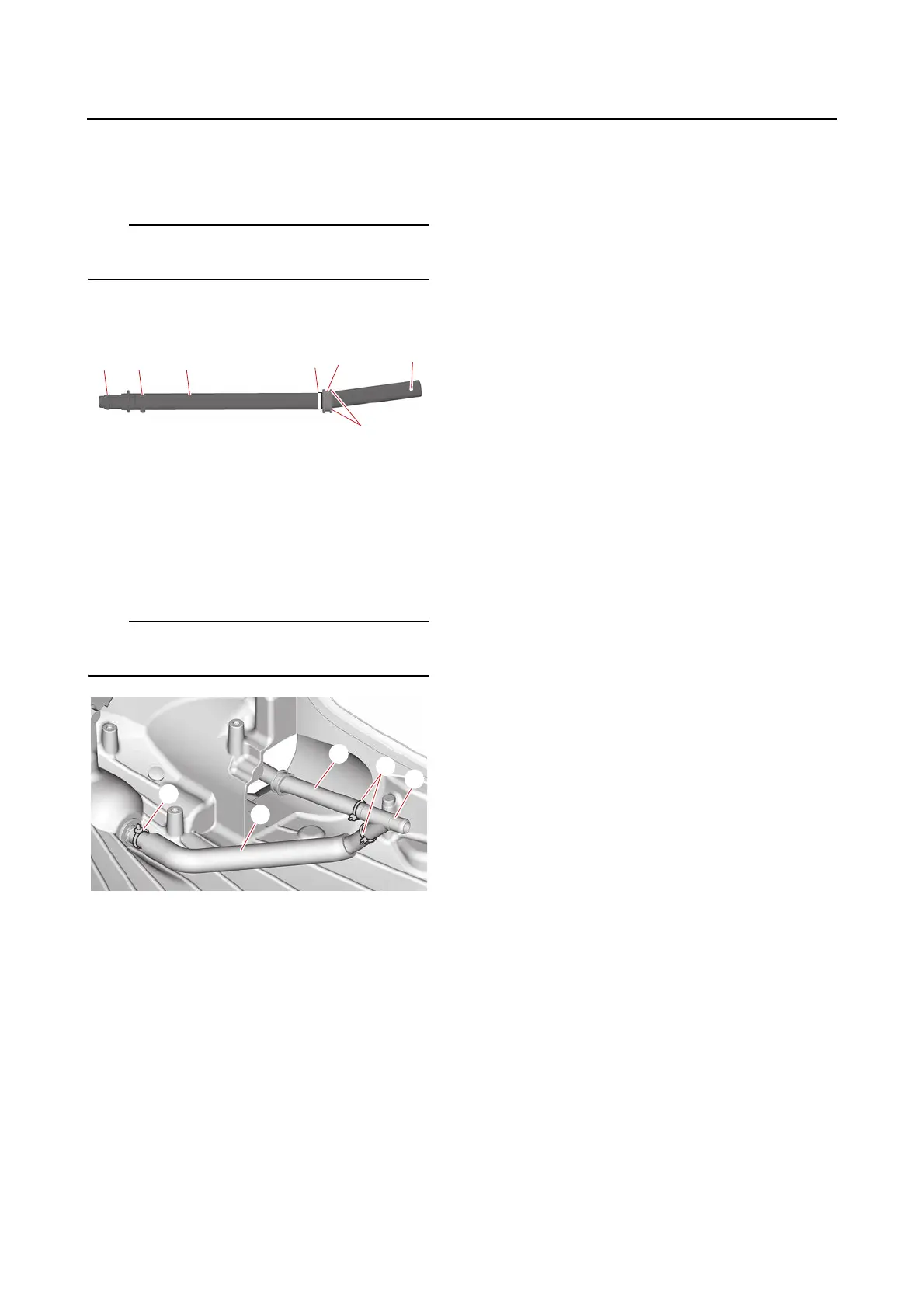

Bottom cowling (front) and flushing hose
9-19
b. Install the nipple “3” into the hose “2”,
and then fasten the hose “2” using a
new plastic tie “4”.
Cut off the excess end of the new plastic tie to
3 mm (0.12 in) or less.
c. Install the hoses “1” and “2”, and then
install the joint “3”.
d. Fasten the hoses “1” and “2” using
new plastic ties “4” as shown.
Cut off the excess end of each plastic tie to 3
mm (0.12 in) or less.
4. Connect:
• SCU communication lead
(for the multiple engines)
