9-22

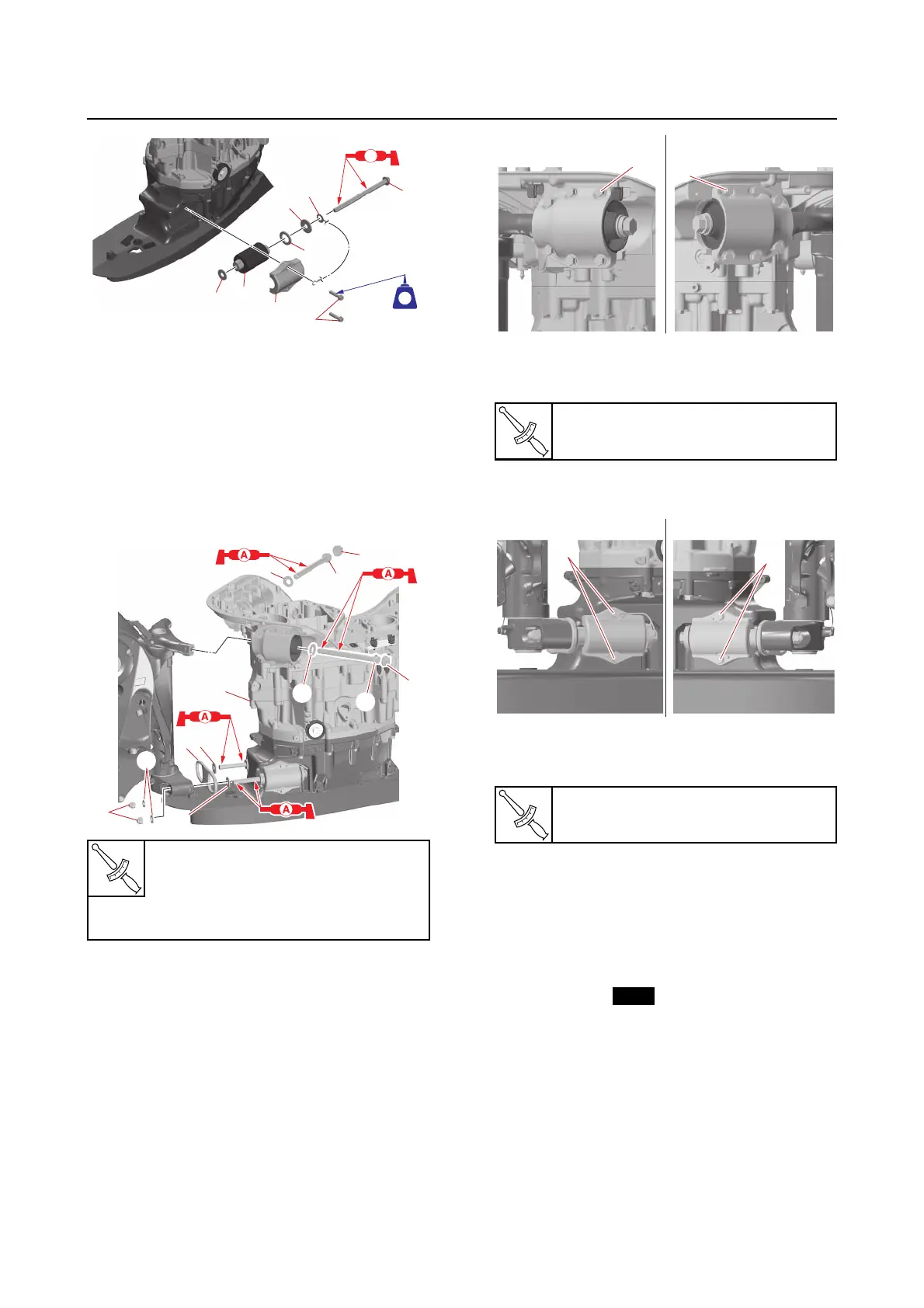

Upper case assembly and mount
3. Install:
•Washers “1”
•Damper “2”
• Upper case assembly “a”
•Washers “3”
• Lower mount nuts “4”
•Washers “5”
• Upper mount bolts “6”
•Caps “7”
4. Tighten:
• Upper mount bracket bolts
• Lower mount bracket bolts
a. Tighten the upper mount bracket bolts
“1” to the specified torque in the order
[1], [2], and so on.
b. Tighten the lower mount bracket bolts
“1”.
5. Install:
•Protector
• SCU lead
•Holders
• Protector cover
•Grommet
•Plastic ties
a. Install the protector “1”
b. Install the SCU lead “2” to the protector
“1” so that the plastic ties “3” on the
lead are positioned within the specified
distances “a” shown from the ends of
the protector.
c. Install the protector cover “4”.
T
R
.
.
Lower mount nut “4”
72 N·m (7.2 kgf·m, 53 lb·ft)
Upper mount bolt “6”
200 N·m (20 kgf·m, 148 lb·ft)
AA
572572
LTLT
7
6
2
5
3
2
4
1
4
2
1
1
a
5
6
7
3
5
6
7
A. PORT
B. STBD
T
R
.
.
Upper mount bracket bolt “1”
54 N·m (5.4 kgf·m, 40 lb·ft)
A. PORT
B. STBD
T
R
.
.
Lower mount bracket bolt “1”
54 N·m (5.4 kgf·m, 40 lb·ft)
1
1
[3][3][3]
[2][2][2] [1][1][1]
[6][6][6]
[5][5][5] [4][4][4]
[1][1][1] [2][2][2]
[4][4][4] [5][5][5]
[3][3][3]
[6][6][6]
[3][3]
[2][2]
[1][1]
[6][6]
[5][5] [4][4]
[1][1] [2][2]
[4][4] [5][5]
[3][3]
[6][6]
AB
1
AB
1
New
