Yamaha F400A 2022 - Page 492

9-24
Upper case assembly and mount

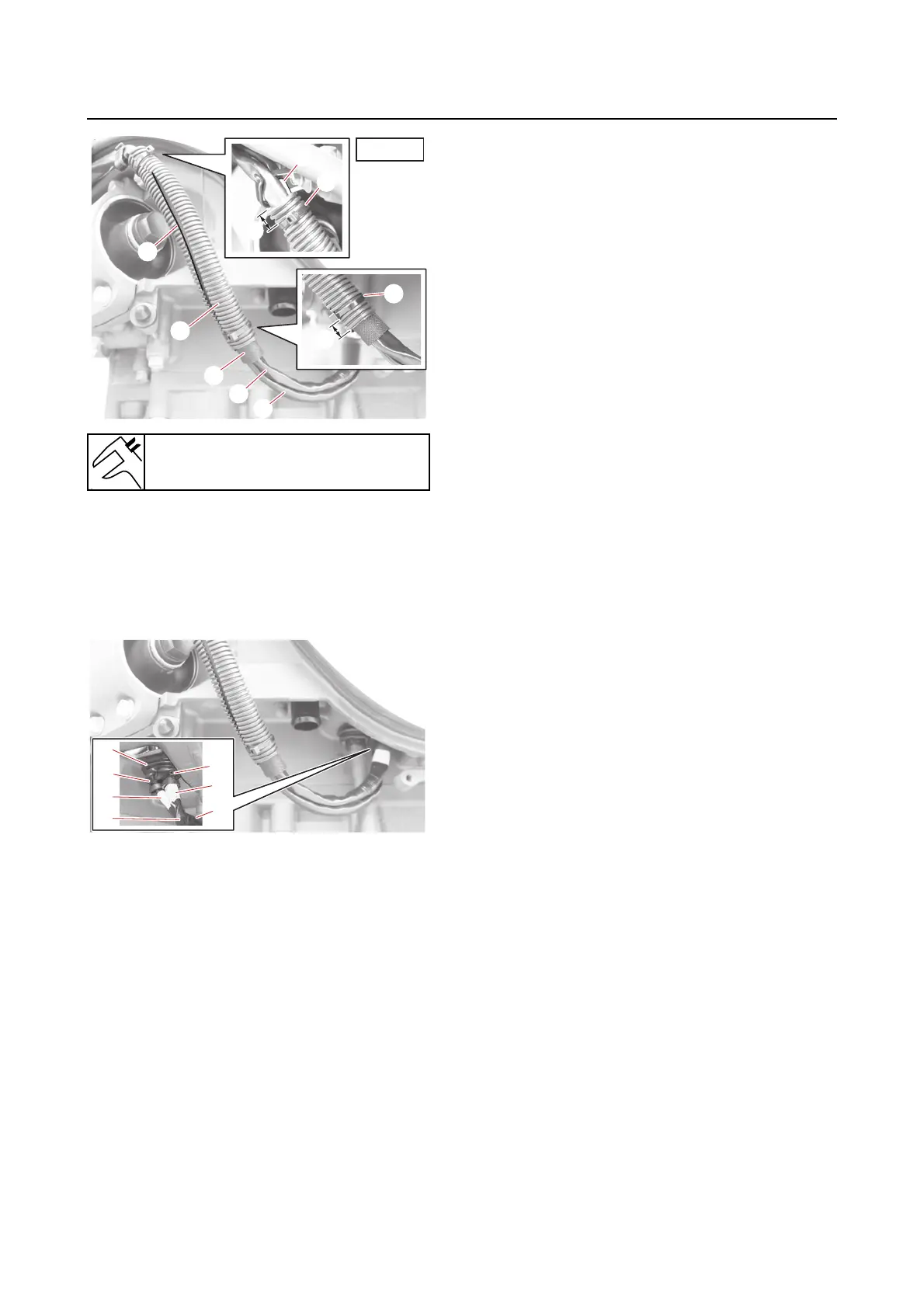

f. Route the PTT motor lead “1” and PTT
sensor lead “2” through the grommet
“3”, and then fasten the leads and
grommet using new plastic ties “4” so
that the white tape “a” on the leads is
aligned with the grommet.
Distance “c”
10 mm (0.39 in)
PORT
b
2
1
3
4
5
5
c
c
a
2
1
3
a
4
a
4
