Electrical system
2-32

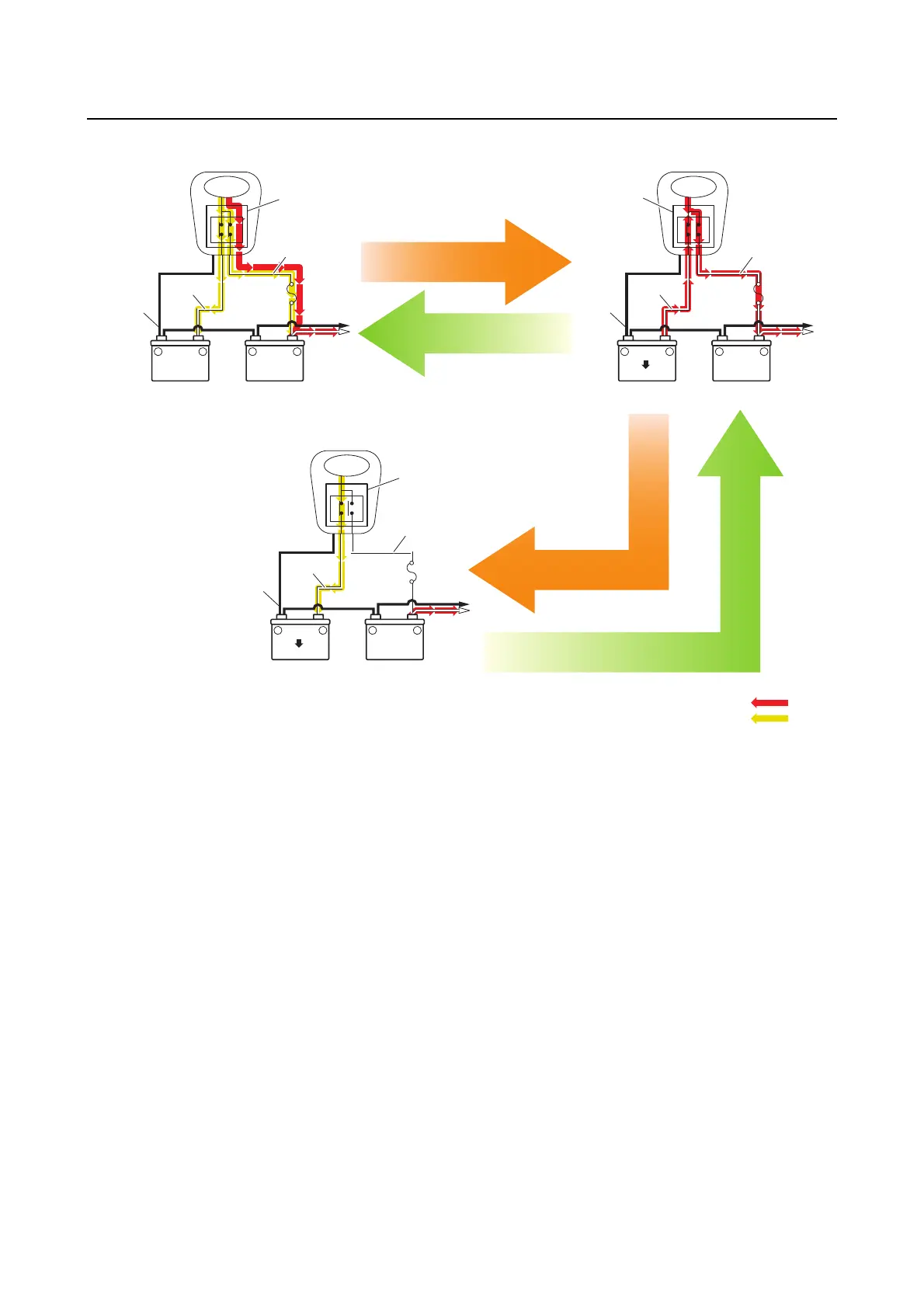

Simultaneous charging system
-
+
-
+
-
+
-
+
-
+
-
+
2. Rectifier/regulator
8. Load is more than
charging output
9. Load is less than
charging output
10. Main battery voltage
less than 13.0 V
11. Main battery voltage
more than 14.0 V
1. GEN
6. House battery
for accessory
5. Main battery
for cranking
14.5 V 14.5 V
4. Red
3. Black
4. Red
2. Rectifier/regulator
1.GEN
6. House battery
for accessory
5. Main battery
for cranking
14.5 V
13.0 V
7. Under
13.0 V
4. Red
3. Black
4. Red
2. Rectifier/regulator
1. GEN
6. House battery
for accessory
5. Main battery
for cranking
13.0 V
14.0 V
7. Under
13.0 V
4. Red
3. Black
4. Red
A
B
1. GEN
2. Rectifier/regulator
3. Black
4. Red
5. Main battery for cranking
6. House battery for accessory
7. Under 13.0 V
8. Load is more than charging output
9. Load is less than charging output
10. Main battery voltage less than 13.0 V
11. Main battery voltage more than 14.0 V
A. Discharging current
B. Charging current
