Diagram area
In the middle, is the Diagram area where the system, Screens and Multiviewer are represented graphically.
Configuration area
On the right hand side, is the configuration area where users perform all needed adjustments.
6.6 Controls
General
Edit box
Edit box is used to edit the values or names.

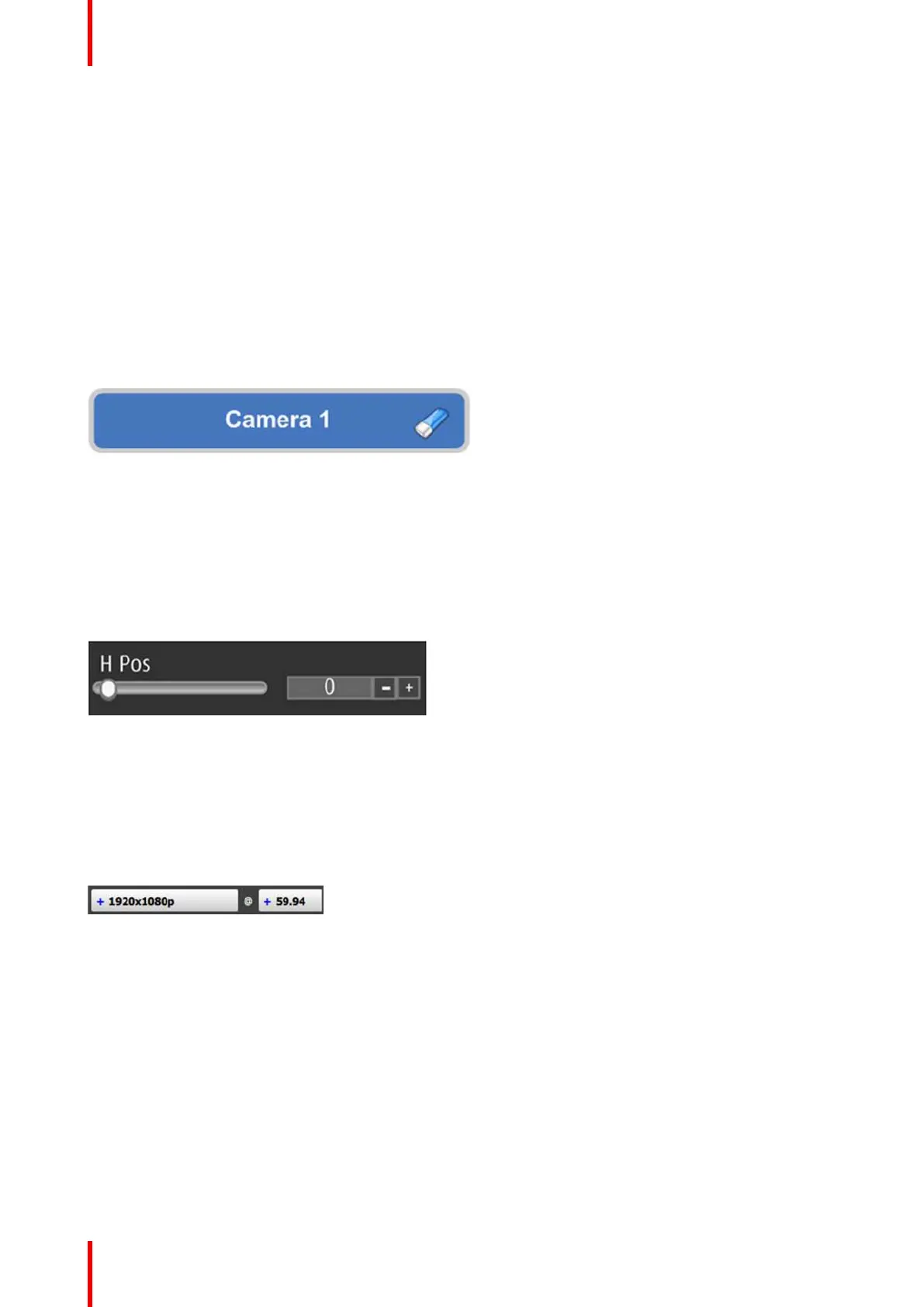

Image 6-2
Properties:
• By double clicking, the background changes to a dark blue color indicating that modifications can be made.
• The cursor is placed on the last character.
• The eraser button allows deletion of all the characters in the edit box.
Slider box
The slider allows modification of the value with slider.
Image 6-3
Properties:
• Slide the cursor to modify the value.
• The value can also modified by clicking the + or – symbols.
Drop-down menu
A drop-down menu allows the user to choose one value from a list.
Image 6-4: Inactive drop-down
The active drop-down menu, shown in Image 6-5, shows the available choices.
EM GUI orientation
