- 4K/UHD Supported:
◦ 3840x2160/ 23.98/24/25/29.97/30 output via 1x HDMI, 2x HDMI (L and R half) or 4x HDMI
(quadrants)
◦ 3840x2160/ 50/59.94/60 output via 2x HDMI (L and R half) or 4x HDMI (quadrants)
◦ 4096x2160/ 23.98/24/25/29.97/30 output via 1x HDMI, 2x HDMI (L and R half) or 4x HDMI
(quadrants)
◦ 4096x2160/ 50/59.94/60 output via 2x HDMI (L and R half) or 4x HDMI (quadrants)
• Custom Format
- User selectable bit depth and color space
• HDCP 1.x or HDCP 2.2 when an HDCP 2.2 compliant signal chain is present
- User-selectable HDCP modes
◦ Auto acquire and configure
◦ Custom settings for color adjustments and gamma
HDMI
HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring
uncompressed video data and compressed/uncompressed digital audio data from a HDMI-
compliant device ("the source device") to a compatible computer monitor, video projector, digital
television, or digital audio device. HDMI is a digital replacement for existing analog video standards.
4.12 SDI Output Card
General
Process up to four independent SDI signals with support for SD, HD, and 3G in Single Link, Dual Link (1.5G)
or Quad Link (3G).

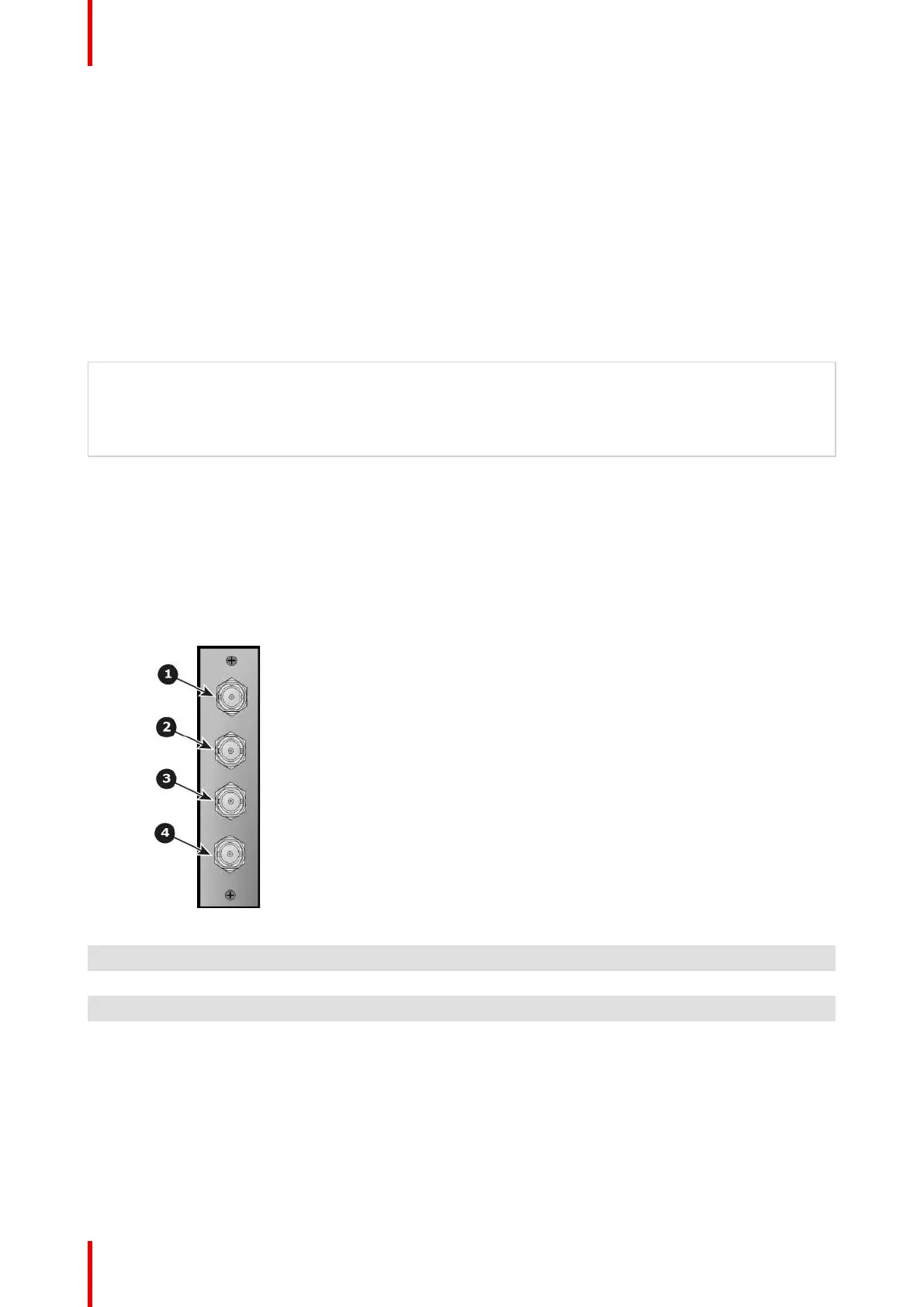

The figure below illustrates the SDI Output Card's rear panel connectors:
Image 4-17: SDI output Card Rear Panel
1 BNC connector — SDI 1
2 BNC connector — SDI 2
3 BNC connector — SDI 3
4 BNC connector — SDI 4
Features
• Provides up to 4 independent signals
• Automatic SD, HD, and 3G SDI Switching
• Single Link SD/ HD/ 3G SDI Output
• Quad Link UHD output as 4x HD/ 3G-SDI Output
Hardware orientation
