Barco Event Master E2 Series User Manual

R5905948 /12 Event Master Devices 67
4.7 Quad HDMI 2.0 Input Card
General
The Quad HDMI 2.0 input card has four 19-pin HDMI connectors, which can support a HDMI video signal.
The figure below illustrates the Quad HDMI 2.0 input card’s rear panel connectors:

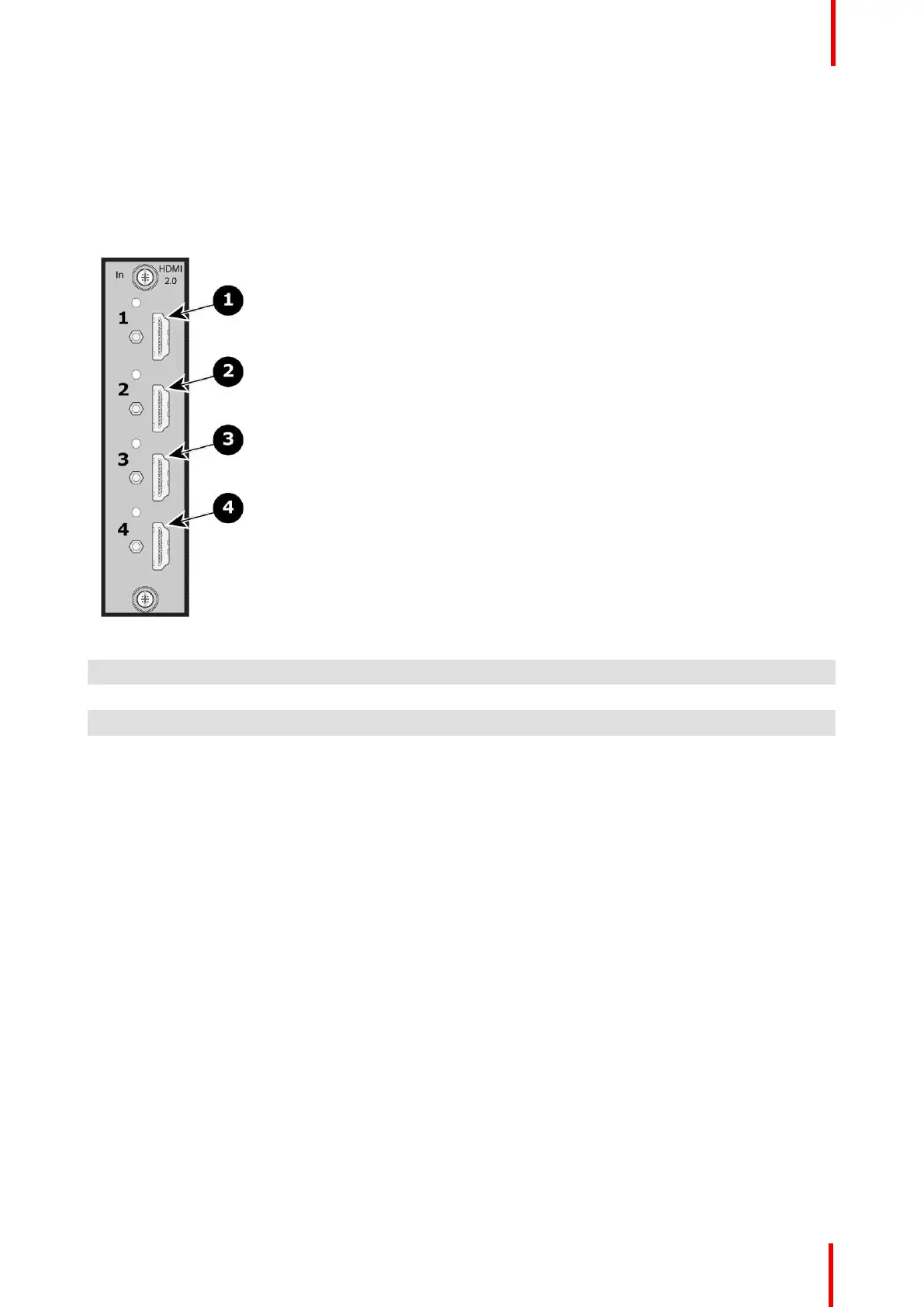

Image 4-12: Quad HDMI 2.0 Input Card Rear Panel
1 HDMI 2.0 connector —HDMI 1 with an LED and standoff screw
2 HDMI 2.0 connector —HDMI 2 with an LED and standoff screw
3 HDMI 2.0 connector —HDMI 3 with an LED and standoff screw
4 HDMI 2.0 connector —HDMI 4 with an LED and standoff screw
Features
• Accepts up to 4 signals independently
• 4x 19–pin HDMI connector (Type A)
• Each input channel includes an LED that turns green when a valid sync is detected.
Specifications
• HDMI per 2.0 specifications
• Supported format:
- up to UHD@60p 4:2:2 12 bit
- 4 high-speed (Dual Link Type) inputs or 2 UHD@60p inputs per card
- 4K/UHD Supported:
◦ 3,840x2,160/ 23.98/24/25/29.97/30 input via 1x HDMI, 2x HDMI (L and R half) or 4x HDMI
(quadrants)
◦ 3,840x2,160/ 50/59.94/60 input via 2x HDMI (L and R half) or 4x HDMI (quadrants)
◦ 4,096x2,160/ 23.98/24/25/29.97/30 input via 1x HDMI, 2x HDMI (L and R half) or 4x HDMI
(quadrants)
◦ 4,096x2,160/ 50/59.94/60 input via 2x HDMI (L and R half) or 4x HDMI (quadrants)
• Custom EDID
- User selectable bit depth and color space
Hardware orientation
