How to remove a VPU Card
1. Locate the VPU you need to replace.
Note: There are 9 VPU slots. The first slot on the left is slot 15 and the last slot on the most right
position is 23.
2. Loosen and unscrew the thumbscrew that is holding VPU card to the chassis.
3. Pull the VPU out of its slot.

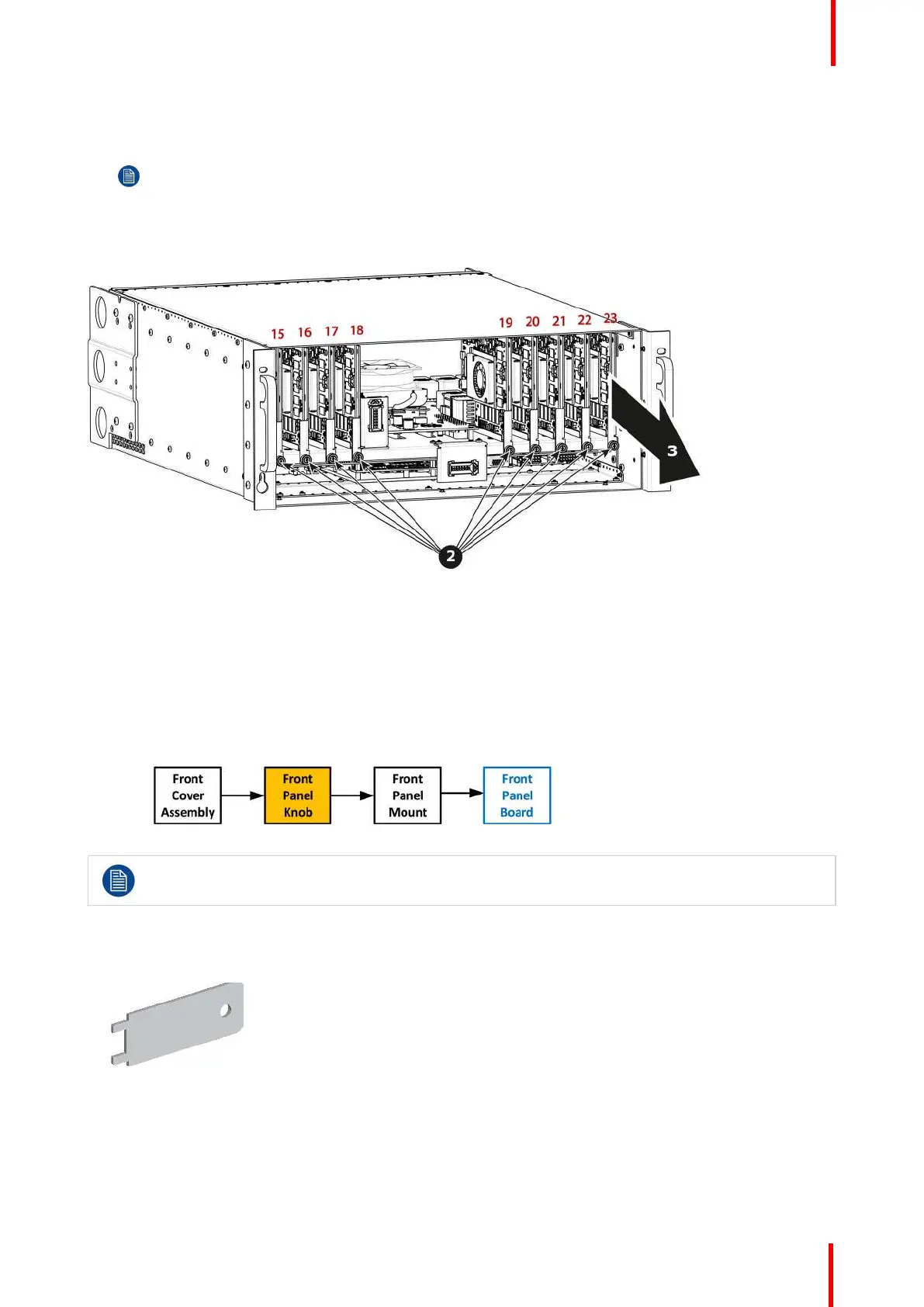

Image 14-32
How to install a VPU Card
To install a VPU Card follow the same procedure in the reverse order.
14.12 Front Panel Knob
Flow chart
Image 14-33
Before you proceed removing the Front panel knob you need to remove the Front Cover Assembly
as outlined in the related procedure.
Necessary tools
• Knob removal tool provided by Barco
Image 14-34
• Flat head screwdriver or a tool with a sharp edge
How to remove the Front Panel Knob
1. Remove the knob cover with a flat screw driver or a sharp object to expose the inside of the knob.
