10.6 EC-200/EC-210 front panel overview

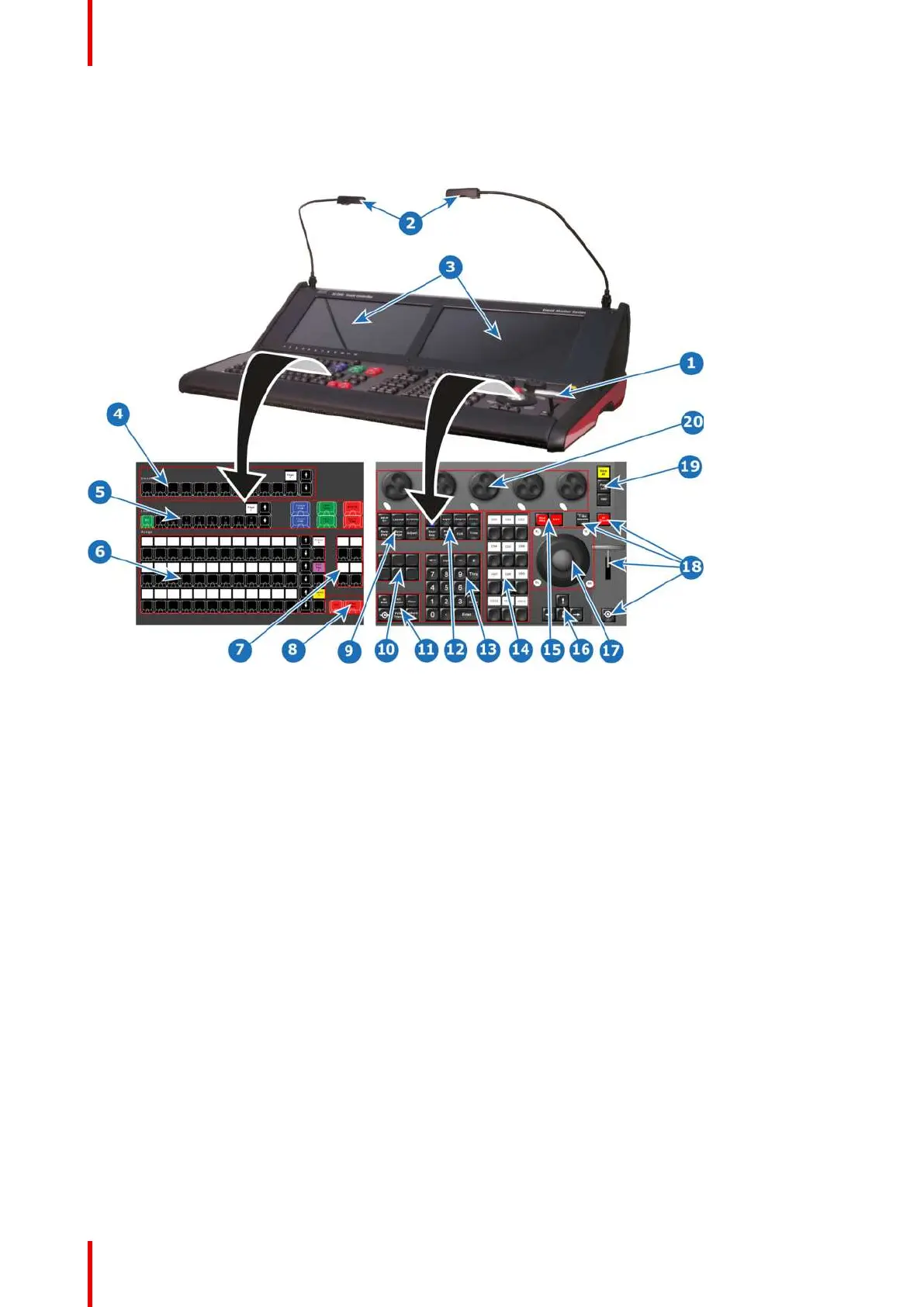

Overview
Image 10-6
1 T-bar 11 Direct selection button group
2 Script light (flexible support) 12 Syntax entry button group
3 Touchscreen 13 Numpad
4 12 Destination buttons and a display
showing the current page of Destinations
14 Contextual display button group
5 Layer buttons and a display showing the
current page of Layers
15 Live function button group
6 Assign buttons in three identical rows that
can host multiple selections and a contextual
display showing page of the Assign button
row
16 Arrow button group
7 User-assignable function buttons, with their
label displays
17 Trackball with 4 modifier buttons
8 Cut and All Trans buttons 18 T-bar with Disable button, All Trans, and
Barco Eye function button
9 System function button group 19 On-screen keyboard button, console lock
button, Save All button
10 Future expansion button group* 20 Rotary encoders, referred to as wheels, with
modifier buttons
* On the EC-210 the future expansion button group features the “Play/Pause” and “Stop” CUE buttons.
