Barco Event Master E2 Series User Manual

R5905948 /12 Event Master Devices 307

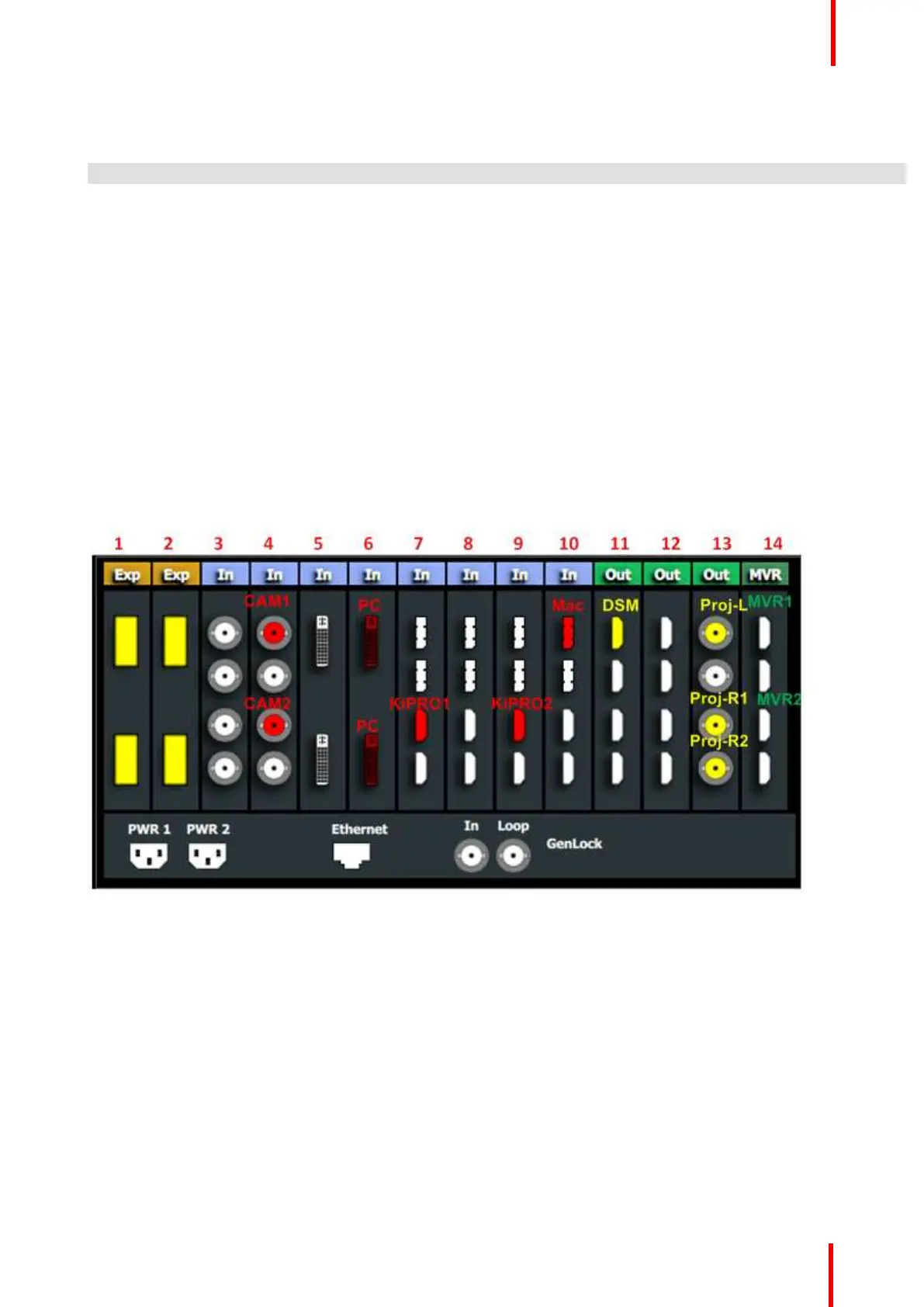

wiring
Connect the input and output devices to the E2 as follows:
Signal Type
Device Name Content
Connector Type
Slot-Connectors
Input CAM1 Audience camera 3G-SDI 4-1
Input CAM2 Stage Camera 3G-SDI 4–3
Input PC Background DVI 6–1
Input PC Background DVI 6–2
Input KiPRO1 Video Clip1 HDMI 8–3
Input KiPRO2 Video Clip2 HDMI 9–3
Input MacPRO Power Point DisplayPort 10–1
Output (AUX) DSM DSM for PowerPoint HDMI 11–1
Output Proj-L Projector Left Screen SDI 13–1
Output Proj-R1 Projector Right Screen 1 SDI 13–3
Output Proj-R2 Projector Right Screen 2 SDI 13–4
Multiviewer MVR1 Program/ Preview Monitor HDMI 14–1
Multiviewer MVR1 Input Sources Monitor HDMI 14–3
Image 9-3
9.3 Control Software Operation
Overview
In this section we will use the control software (Event Master Toolset Software) to setup the E2 and create
presets and user keys to be used during the event. We will follow the steps sequentially outlined in diagram
bellow.
Workflow Diagram
This diagram shows all the steps necessary to setup the system.
General operation example
