R5905948 /12 Event Master Devices332
10.4 EC-50 front panel overview
Overview

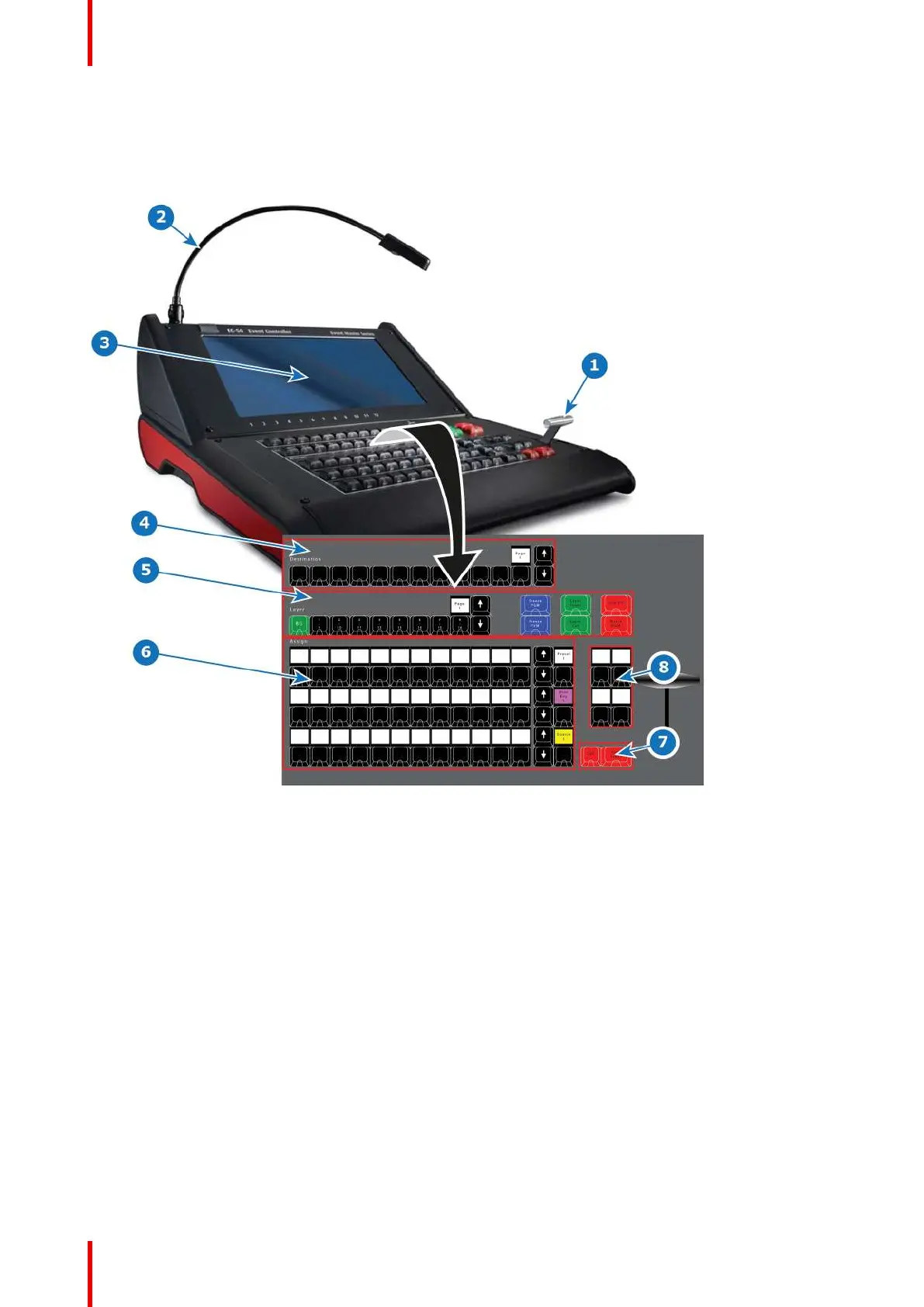

Image 10-4: EC-50 front panel overview
1 T-bar
2 Script light (flexible support)
3 Touchscreen
4 12 Destination buttons and a display
showing the current page of Destinations
5 Layer buttons and a display showing the
current page of Layers
6 Assign Buttons in three identical rows that
can host multiple selections and a contextual
display showing page of the Assign button
row
7 Cut and All Trans buttons
8 User-assignable function buttons, with their
label displays
Controller Orientation
