R5905948 /12 Event Master Devices496
15.34 Ethernet Cable

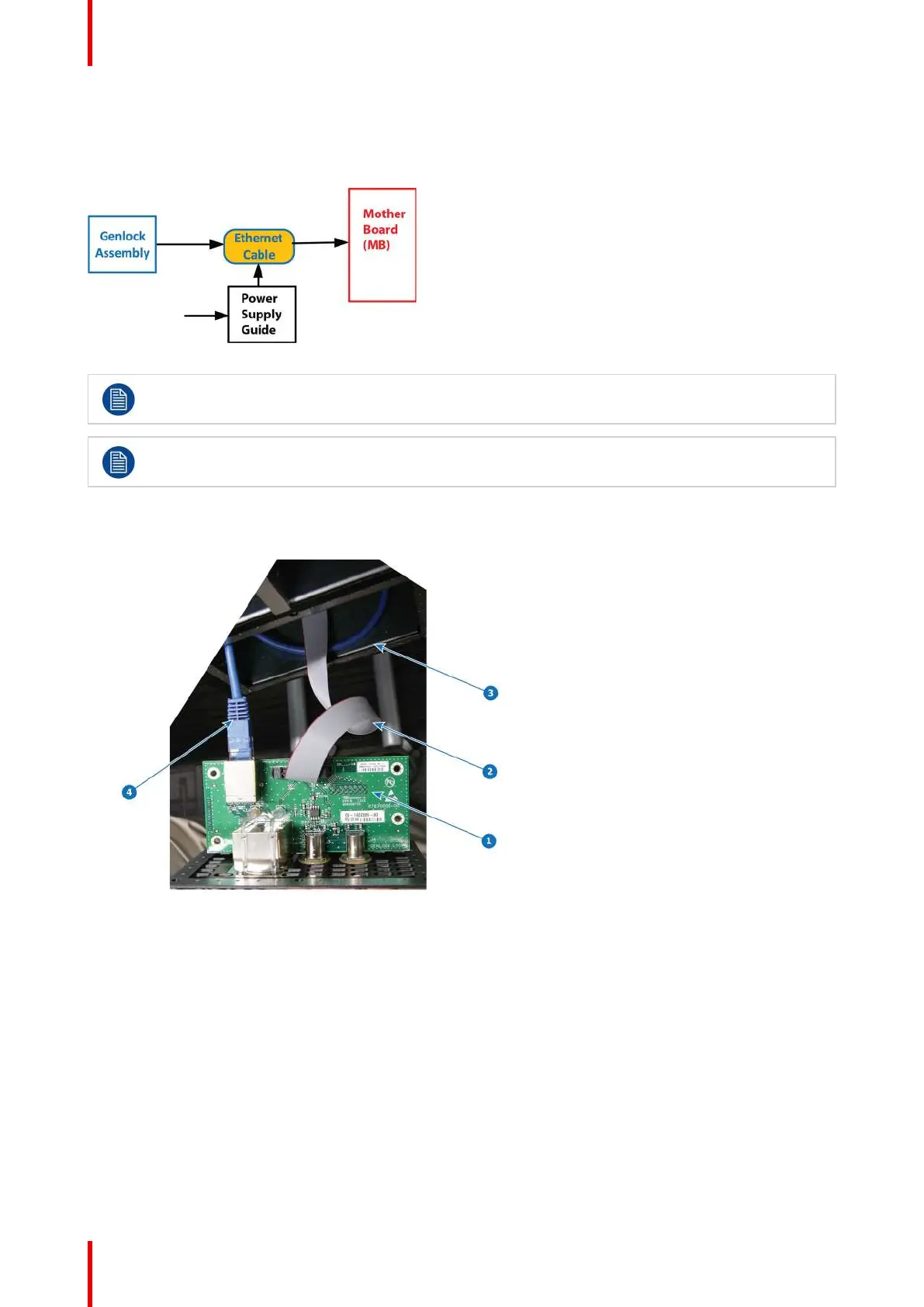

Flow chart
Image 15-93
The Ethernet cable connects the Genlock board to the Motherboard. This procedure provides
instructions on how to remove the cable from both sides.
This procedure requires to remove the Power supply Guide to unplug the cable from the
motherboard.
Overview
Image 15-94
1 Genlock card
2 Genlock cable
3 Chassis
4 Ethernet cable
Concerned parts
R767283K S3 Cable Kit Set
Necessary tools
1 x Phillips Screwdriver #2
How to remove the Ethernet cable
1. Remove the Genlock assembly and pull it away to expose the cables behind it (refer to the related procedure).
S3 Maintenance
