Barco Event Master E2 Series User Manual

R5905948 /12 Event Master Devices498
15.35 Genlock Cable

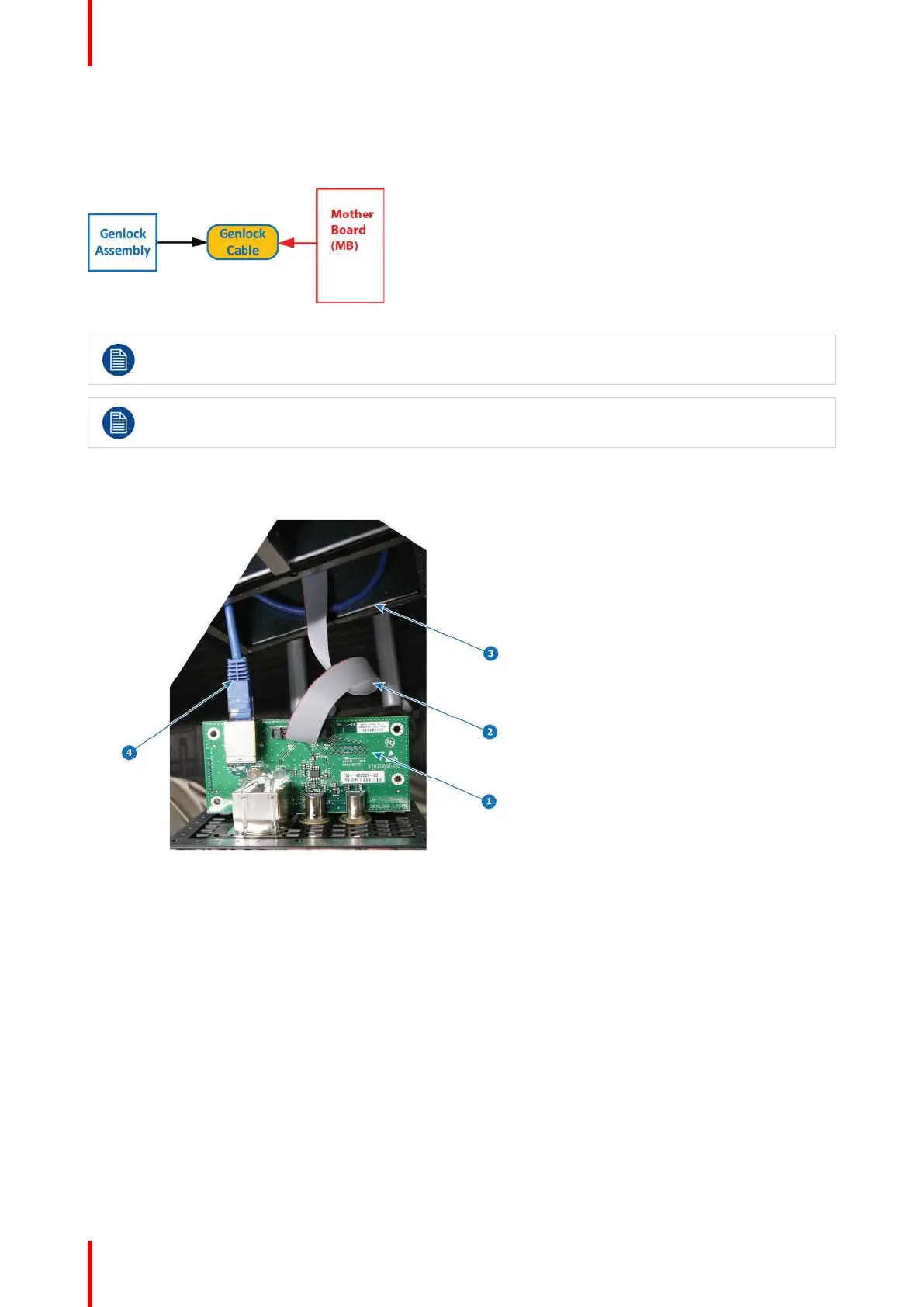

Flow chart
Image 15-97
The Genlock cable connects the Genlock board to the Motherboard. This procedure provides
instructions on how to remove the cable from both sides.
One end of the Genlock cable is clamped between the Motherboard and the Motherboard mount.
Remove this cable requires to separate these parts.
Overview
Image 15-98
1 Genlock card
2 Genlock cable
3 Chassis
4 Ethernet cable
Concerned parts
R767283K S3 Cable Kit Set
Necessary tools
1 x Phillips Screwdriver #2
How to remove the Ethernet cable
1. Remove the Genlock assembly and pull it away to expose the cables behind it (refer to the related procedure).
2. Locate the Genlock connector on the Genlock assembly and unlatch the ribbon cable from the connector and
pull it up and away from the Genlock board.
S3 Maintenance
