R5905948 /12 Event Master Devices 411
14.19 System Battery

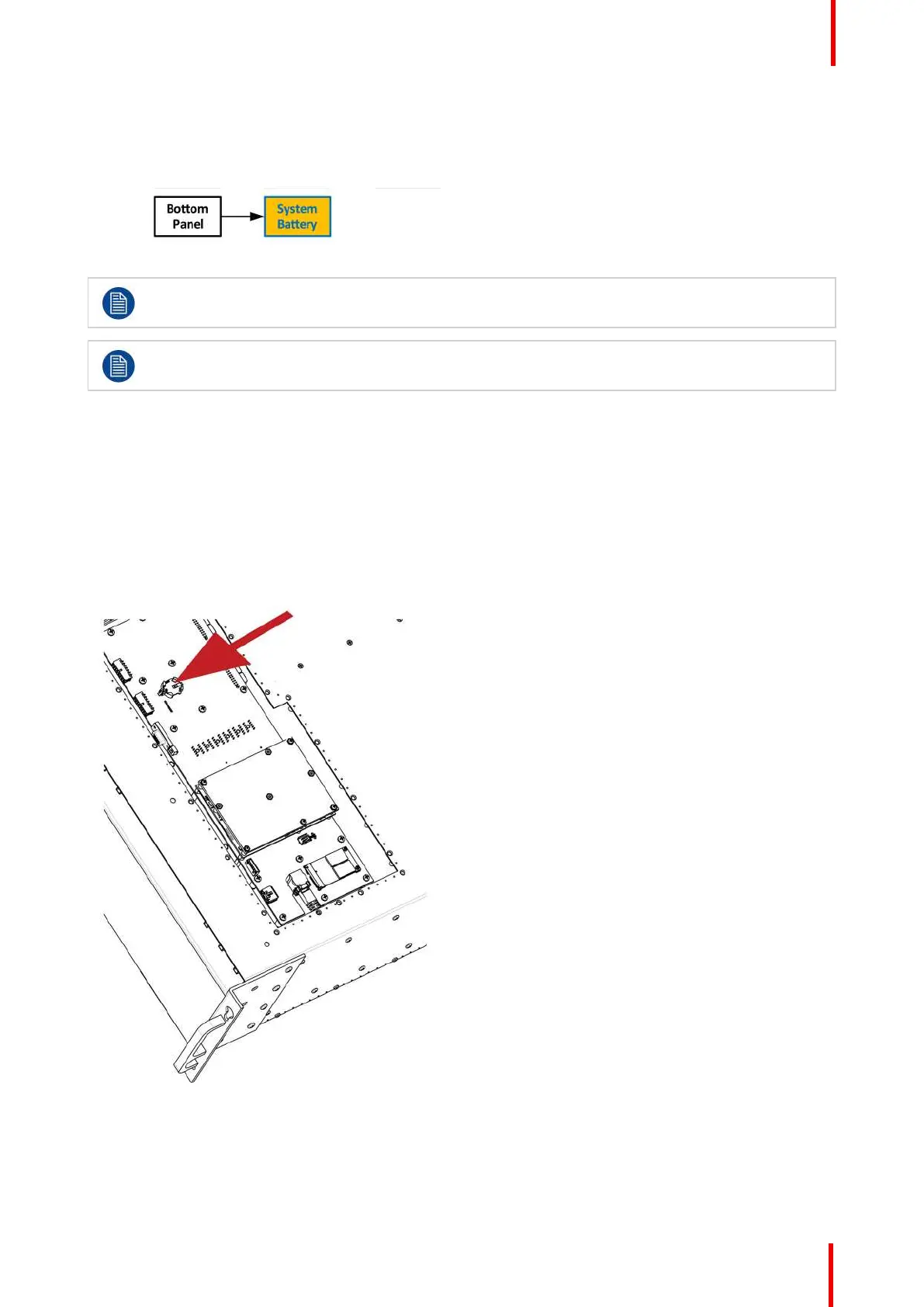

Flow chart
Image 14-50
Before you proceed removing the System Battery you need to remove the Bottom Panel as outlined
in the related procedure.
The System Battery can also be replaced after the System Power board is removed from the unit.
Concerned parts
R9801120 Motherboard Battery Kit
Necessary tools
None.
How to remove the System battery
1. Carefully remove the battery from its socket.
Image 14-51
How to install the System battery
To install the System battery follow the same procedure in the reverse order.
