R5905948 /12 Event Master Devices 467

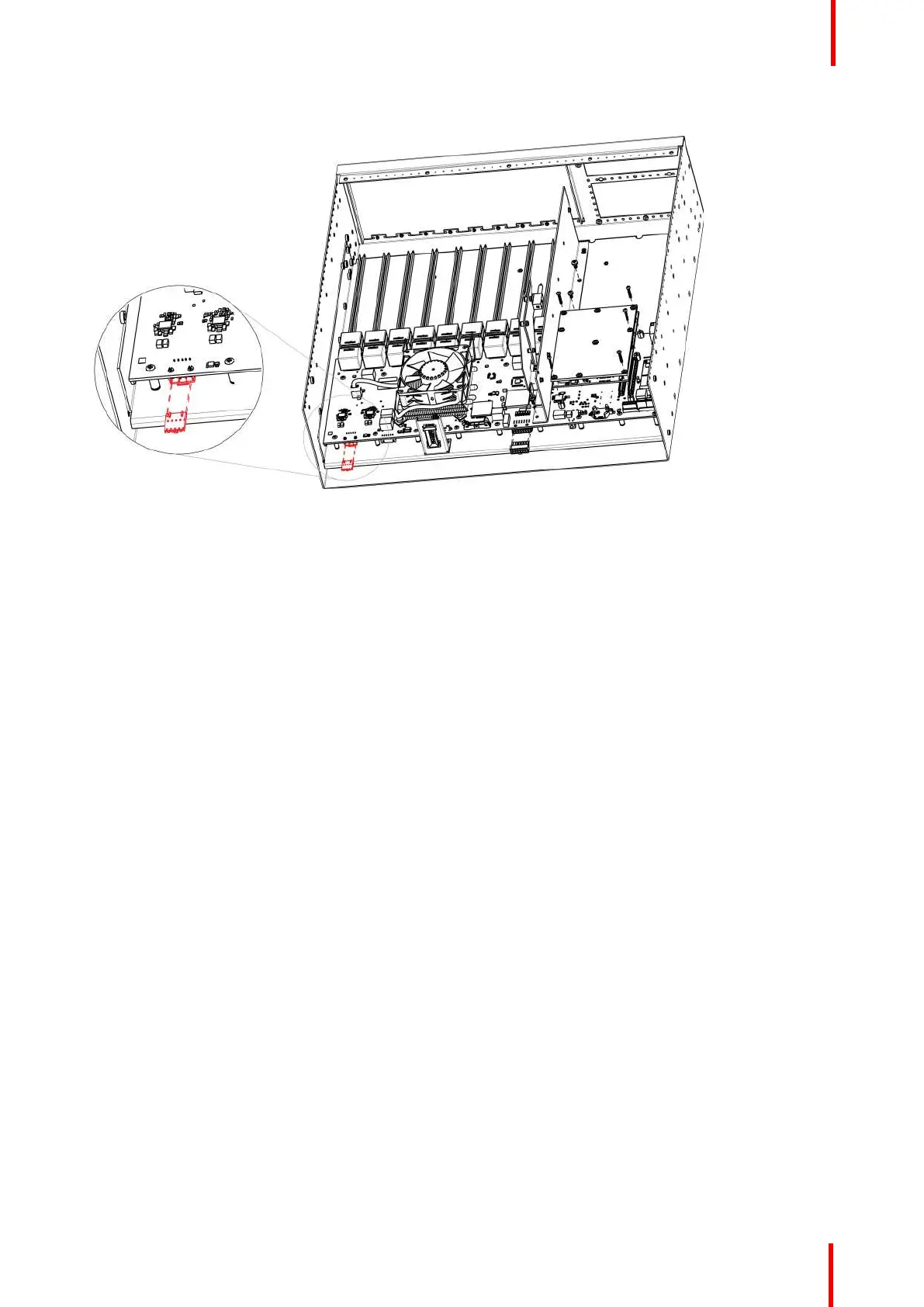

5. Locate the USB Extension cable that is plugged on the Motherboard.

Image 15-38

6. Unplug the USB Extension cable by gently pushing it out.

7. Pull the cable out of the unit.

How to install the USB Extension cable

To install the USB Extension cable follow the same procedure in the reverse order.

15.17 Power Supply

Concerned parts

R9004769 Power Supply

Necessary tools

None.

How remove Power Supply

1. Push the latch towards the left.
