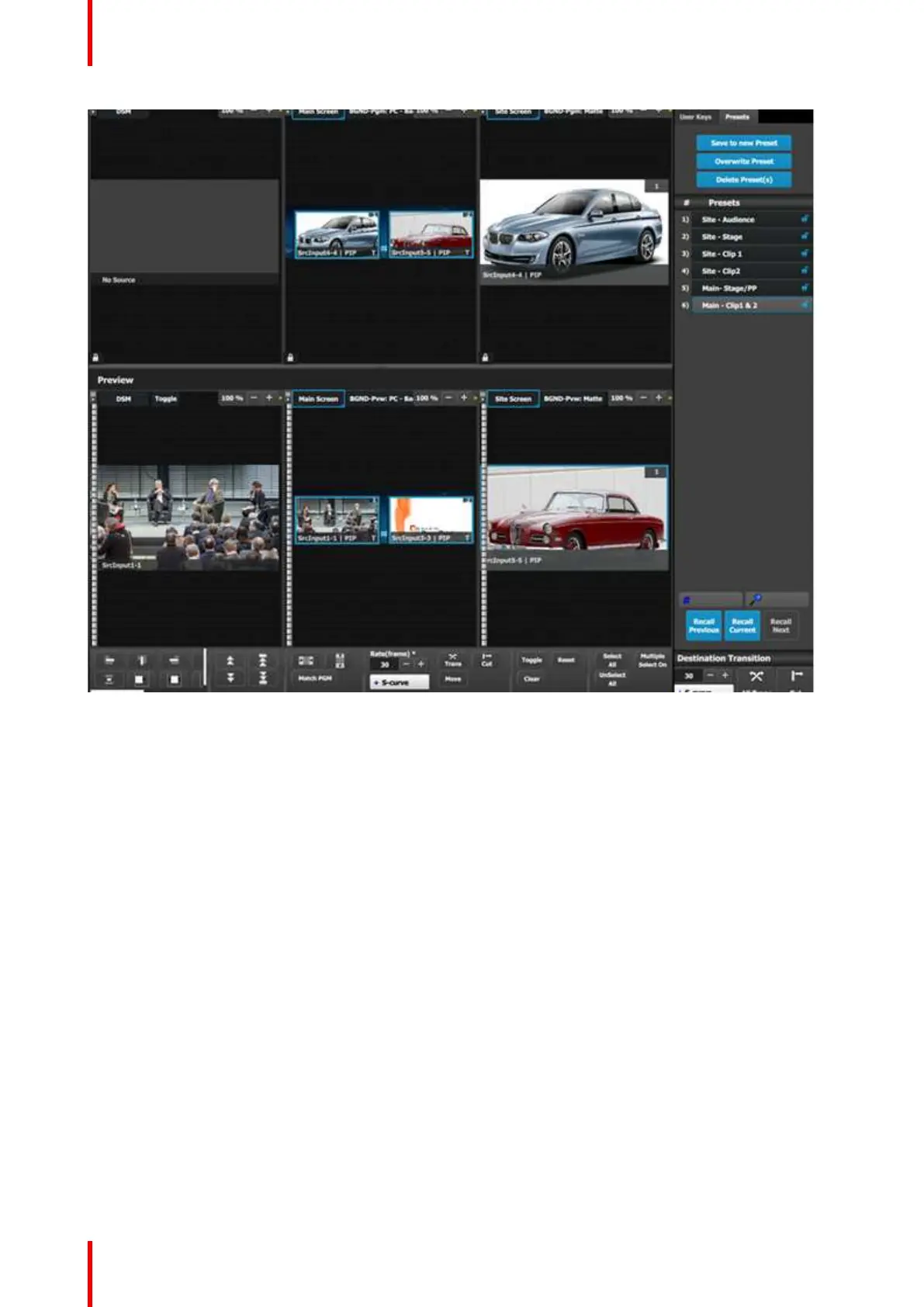

Image 9-25
9.6 Multiviewer (MVR) Menu
Overview
Click on the Multiviewer icon on the left hand side of the screen to reach the Multiviewer Menu, the module
used to setup the Multiviewer outputs to the MVR monitors. You should see two screens since two Multiviewer
outputs exist.
We will setup the top window to display all the inputs and the bottom window to display the Program and
preview screens.
Setup the “Sources” MVR
1. Click on the top tab that is labeled “MVROut1”.
2. Click on the Auto Layout Input button that is located at the bottom of the display area. All of the inputs and
backgrounds will appear lined up at the top of the window.
