R5905948 /12 Event Master Devices 505
P/N
Description
Comments
R9004744 EM HDMI-DP Input Board
R9004745 EM DVI Output Board
R9004758 S3 VPU Board
R9004765 Quad DP 1.2 Output Board
R9004785 Tri-Combo Input Board
R9004786 Tri-Combo Output Board
R9004791 Quad HDMI Input Board
R9004792 Quad HDMI 2.0 Output
Board
R9004793 Quad DP 1.2 Input Board
R9871179 Rear rackmount support kit
R9801120 Motherboard Battery Kit
16.4 Event Master Cards
Flow chart
Image 16-3: Event Master cards
Overview

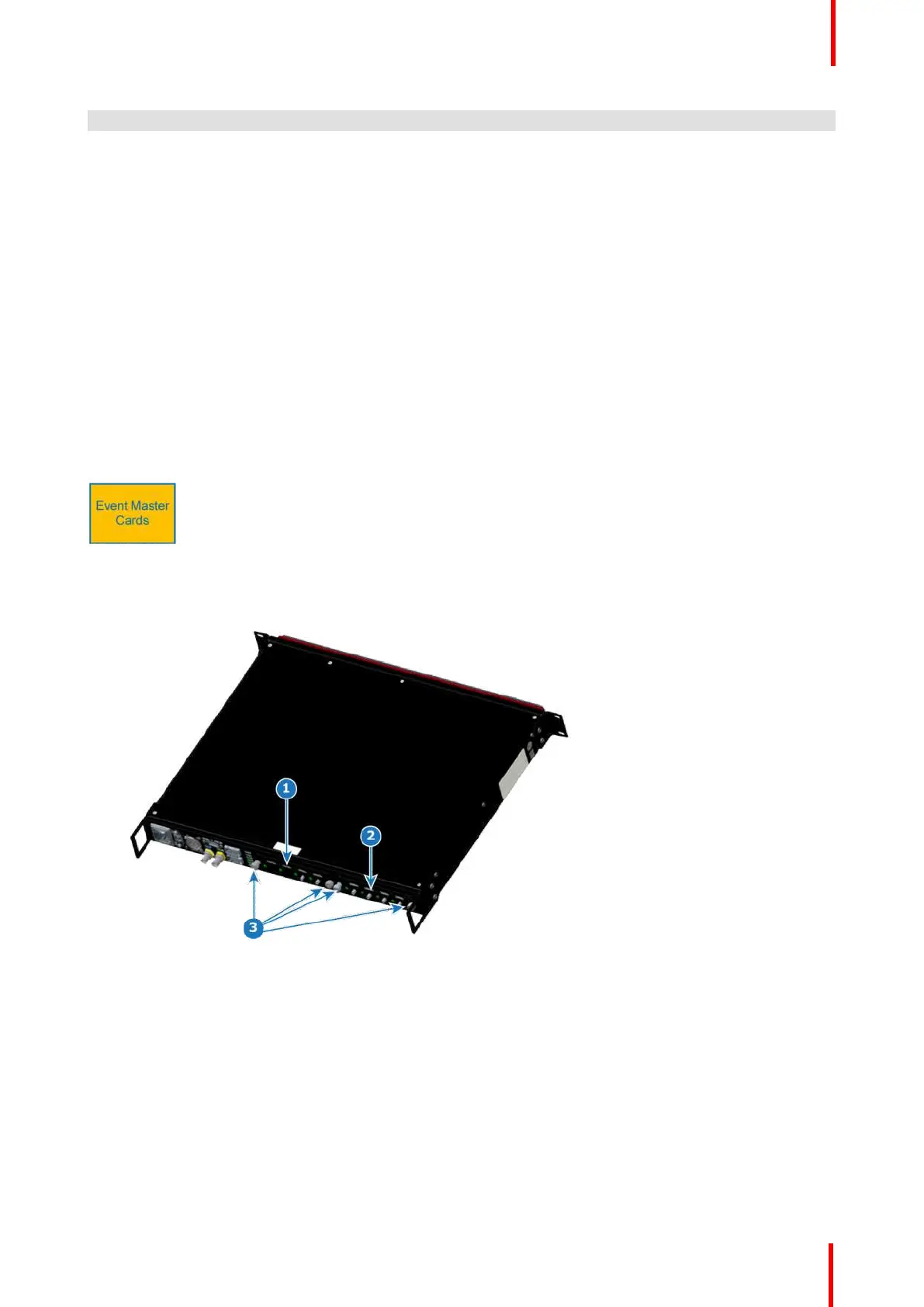

Image 16-4: EX chassis: Event Master card location
1 Card slot #1
2 Card slot #2
3 Card thumbscrews
Concerned parts
Spare Part Kit Description
R9004740 DVI Input
R9004741 SDI Output
R9004742 SDI Input
R9004743 HDMI Output
R9004744 DP/HDMI Input
EX Maintenance
