Barco Event Master E2 Series User Manual

R5905948 /12 Event Master Devices 453
How to install the Rear I/O, VPU and Link card Heatsink Fan
1. Remove the heatsink with the fan from the package.
2. Remove the plastic cover from the bottom of the fan to expose the adhesive material.
3. Align the holes in the board with the pins of the Heatsink.
4. Press firmly the heatsink to the devices below.
5. Plug the heatsink fan power wire to the PCB connector.
15.6 Tri-Combo Input and Tri-Combo Output Card
Disassembly and Assembly
TCI and TCO card disassembly and assembly
See “Tri-Combo Input and Tri-Combo Output Card Disassembly and Assembly”, page 391 for details.

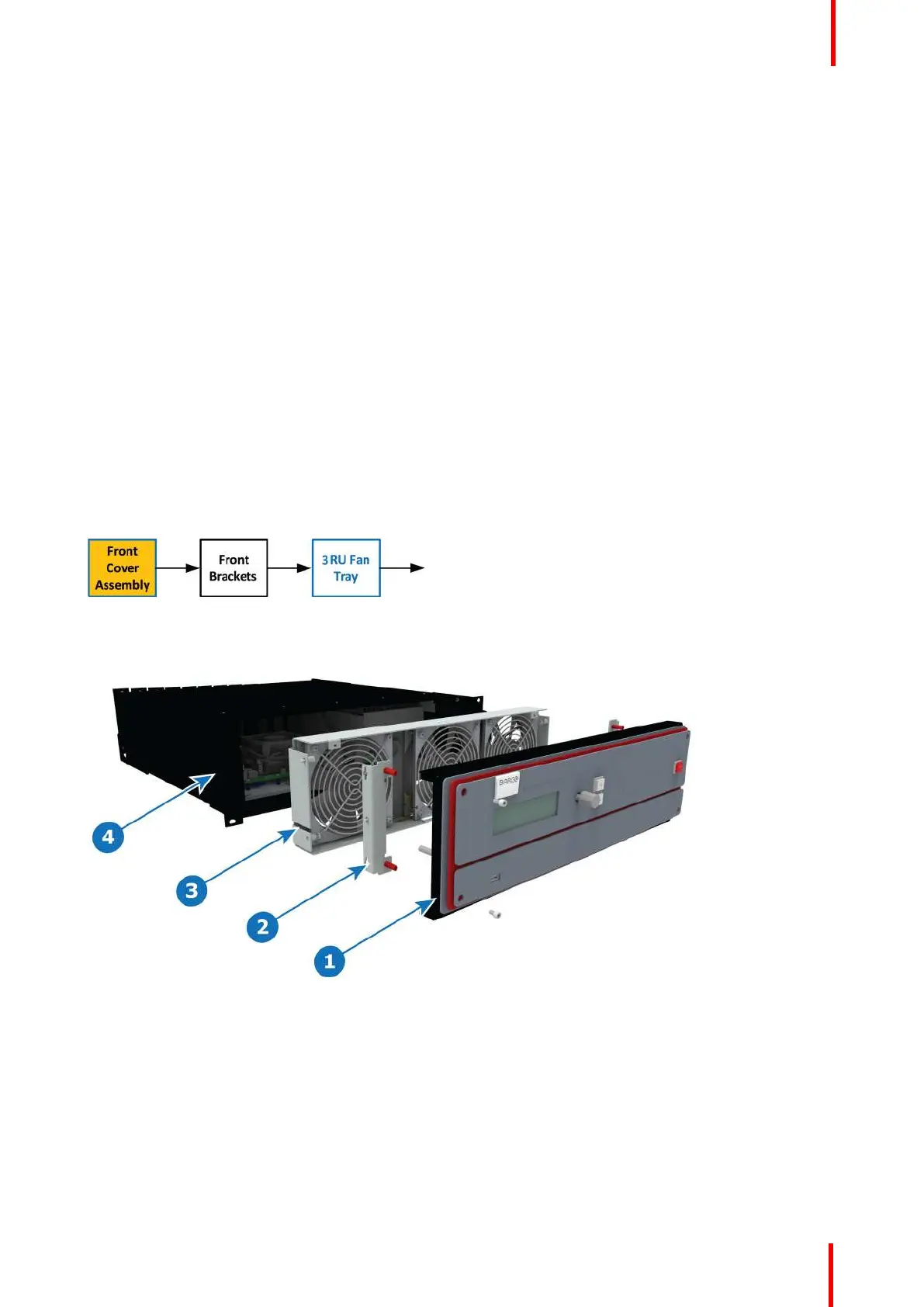

15.7 Front Cover Assembly
Flow chart
Image 15-8
Overview
Image 15-9
1 Front Cover Assembly
2 Front Brackets
3 3RUFanTray
4 Event Master Unit
Necessary tools
1 x Screwdriver HEX 0.05" 7.05" (Provide by Barco in the original package).
S3 Maintenance
