10.15 Future Expansion Button Group (EC-200/EC-
210 only)
Overview
This group of buttons is present only on the large controllers (EC-200 and EC-210).

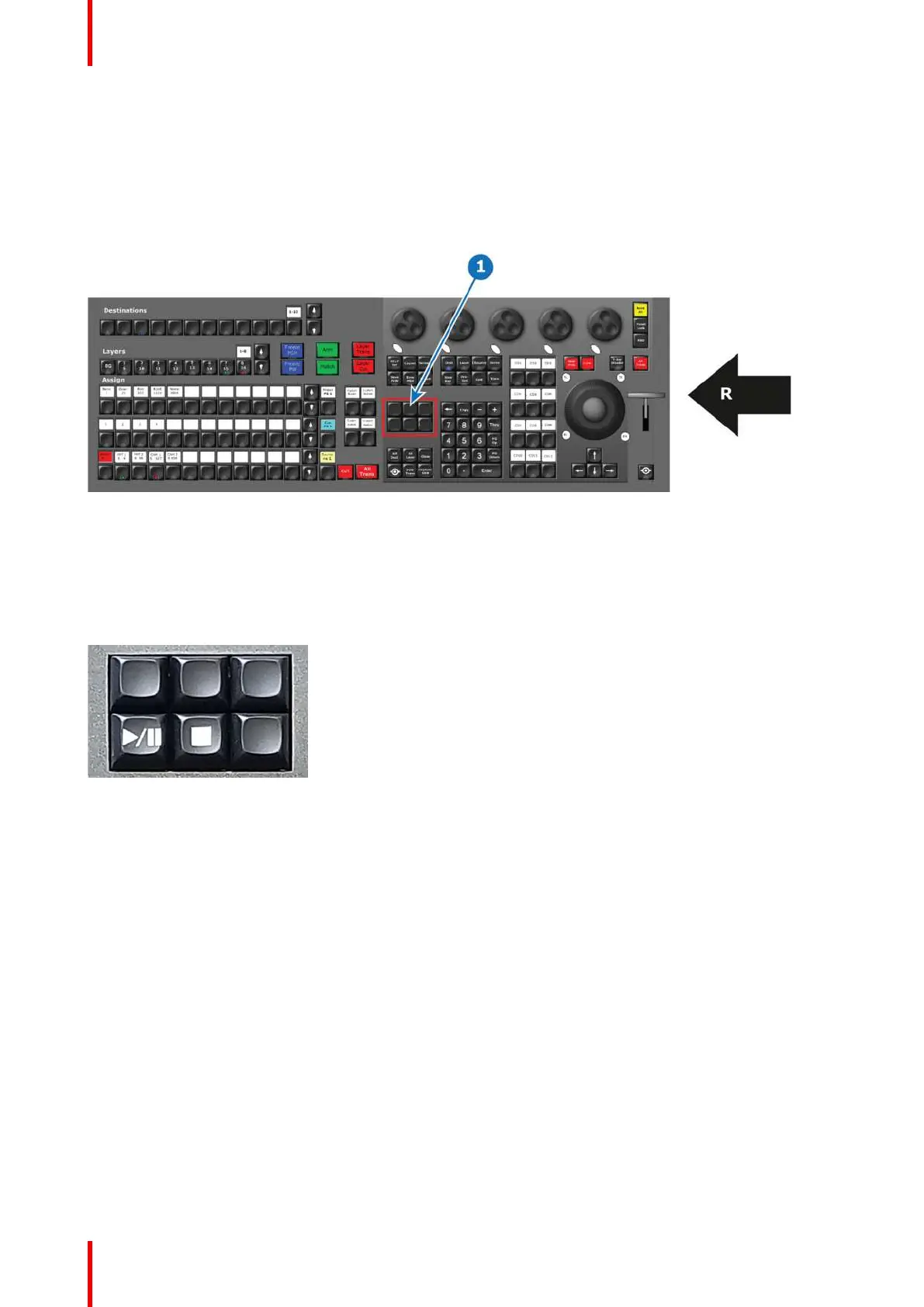

Image 10-17
1 Future Expansion Button Group
R Right Side of the Controller
Description
This group of buttons holds a promise for future functions. On the EC-210, this group contains pre-labeled
“Play/Pause” and “Stop” CUE buttons.
Image 10-18: “Play/Pause” and “Stop” CUE buttons
With the release of software version 6.2, Play/Pause and Stop button functionality has been added to the EC-
200. To add the Play/Pause and Stop buttons to an EC-200, use the Key Cap Set EC-210 Upgrade Kit (P/N:
90405353).
10.16 Direct Selection Button Group and Barco Eye
Button (EC-200/EC-210 only)
Overview
These buttons are present only on the large controllers (EC-200 and EC-210).
Controller Orientation
