R5905948 /12 Event Master Devices460
How to install the Front Panel Mount
To install the Front Panel Mount follow the same procedure in the reverse order.
15.12 Front Panel Board
Flow chart
Image 15-24
Concerned parts
R767260K Front Panel Board
Necessary tools
1 x Phillips Screwdriver #2
How to remove the Front Panel Board
1. Remove the two screws ( 4-40X.25) that secure the PCB to the front mount.

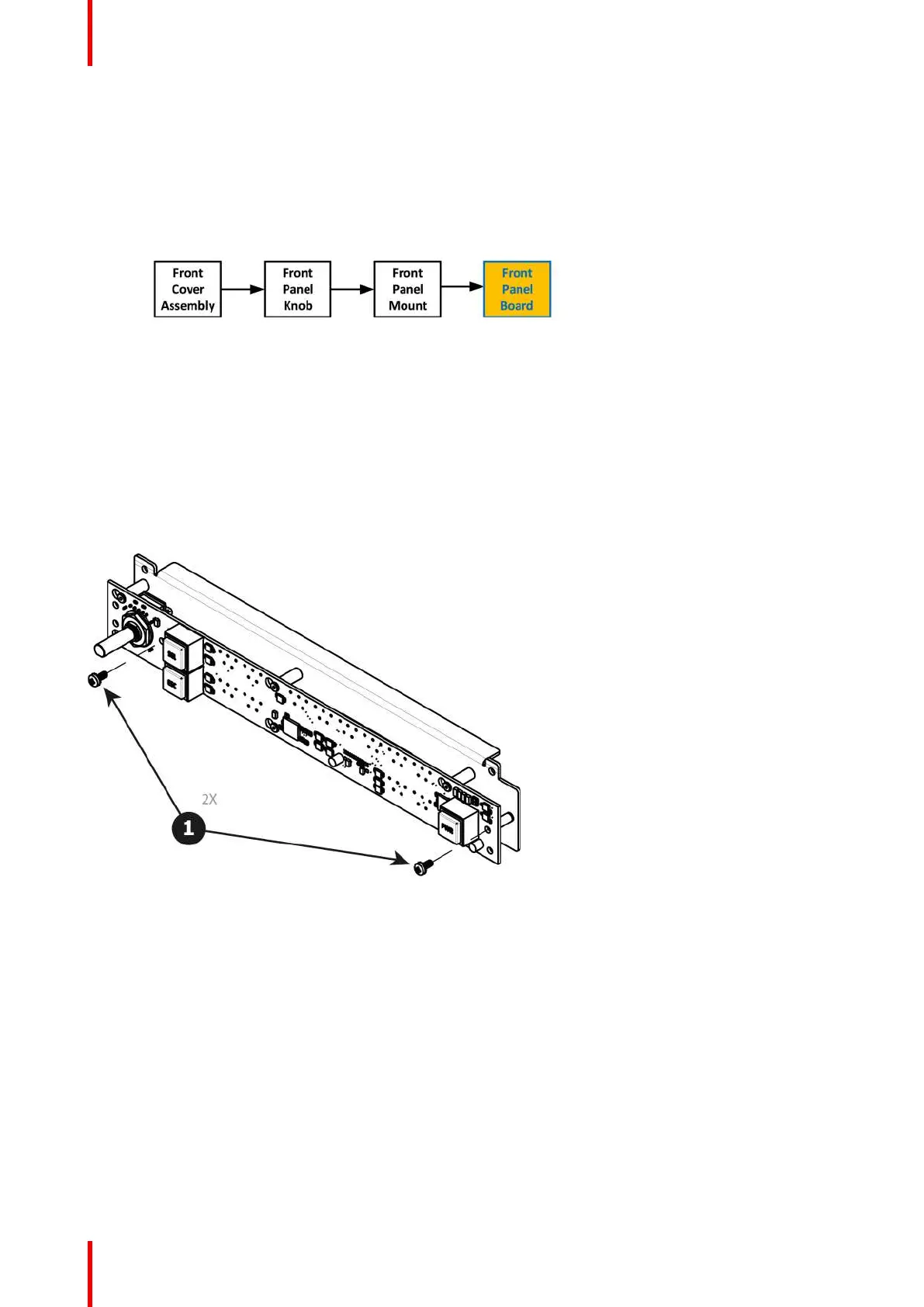

Image 15-25
2. Move the PCB to the right and then out to release it from the mount.
S3 Maintenance
