R5905948 /12 Event Master Devices360
12.1 General Overview
Overview
The layout of the keyboard of the EC-30, the EC-50, and the left-hand side of the EC-200/EC-210 is designed
to give direct access to memories and selections in a live situation.
Programming, Playback, and Edit of any given event is greatly sped up, enhancing the abilities of an operator
to react quickly to any given situation.

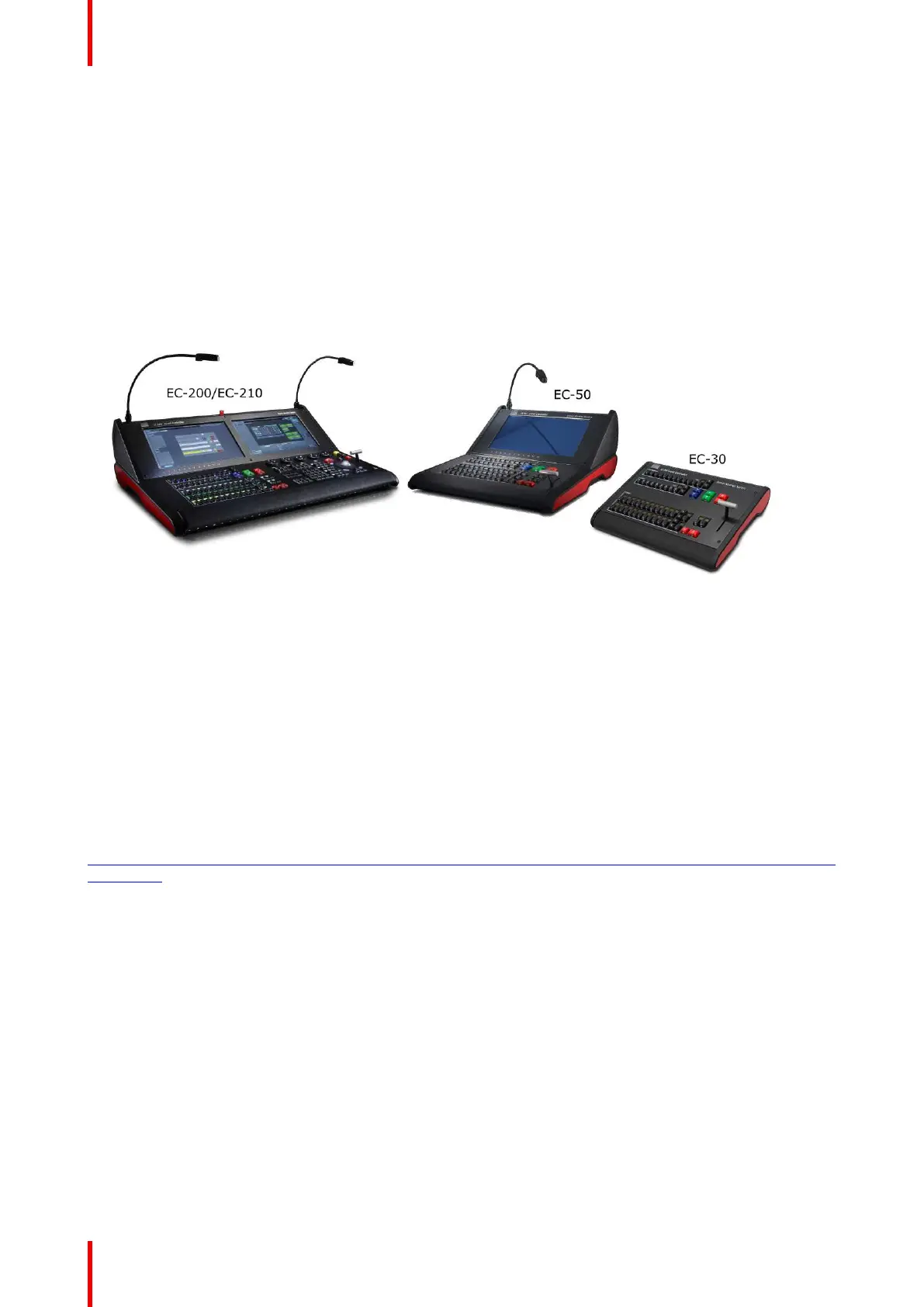

Image 12-1: Event Master controllers
12.2 EC-200/EC-210 Firmware Upgrade
General
The EC-200/EC-210 controller firmware can be updated through the Web App in the Settings Menu >
Controller > Software tab. Please refer to “Settings Menu > Web App area > Tools > Manage Software”, page
264 for instructions on how to perform a firmware upgrade through the Web interface.
For more information on upgrading the EC-200/EC-210 firmware, see “InfoT-1322: Upgrading the Firmware
and Operating System on the EC-200 Controller” on the Technical Downloads tab of the EC-200 Large event
controller web page (URL:
https://www. barco. com/en/Products/Image-processing/Presentation-switchers/Large-event-controller. aspx#!
downloads).
12.3 How to power down and restart the EC-200/
EC-210
General
Because repeated hard power cycling over time may lead to corruption of the solid-state drive (SSD), all
versions of the EC-200/EC-210 Event Master Toolset, version 4.0.29026 or higher, have a power-off soft
button on the touchscreen.
Power-off soft button
The power-off soft button is above the save button on the Menu navigation bar. See Image 12-2 for the
location of the power-off soft button.
