Barco Event Master E2 Series User Manual

R5905948 /12 Event Master Devices 471
Note: This cable connects the Genlock board to the Motherboard.
How to install the Genlock Assembly
To install the Genlock Assembly follow the same procedure in the reverse order.
15.19 Rear Rack Ears
Concerned parts
R767282K Rear Connector protector
Necessary tools
1 x Phillips Screwdriver #2
How to remove Rear Rack-Ears
1. Remove the eight pan head screws (8-32x.31), four from each side, to detach the rear rack ears and
connector protectors from the unit.
Note: You don’t need to remove the rear rack ears to access any other part of the unit.

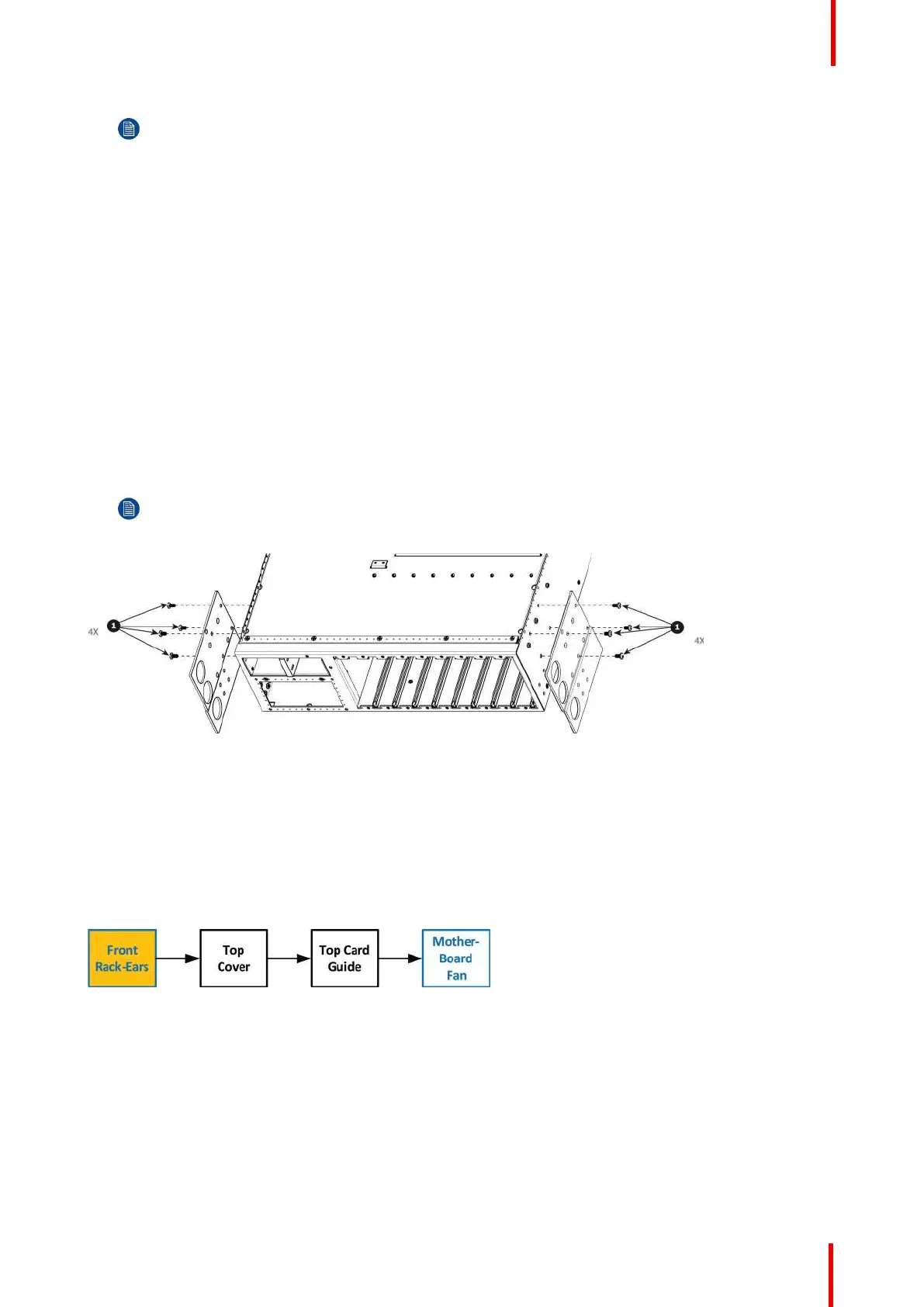

Image 15-44
How to install Rear Rack-Ears
To install the Rear Rack-Ears follow the same procedure in the reverse order.
15.20 Front Rack-Ears
Flow chart
Image 15-45
Concerned parts
R767281K FRONT RACK EARS S3
Necessary tools
1 x Phillips Screwdriver #2
S3 Maintenance
