Barco Event Master E2 Series User Manual

R5905948 /12 Event Master Devices452

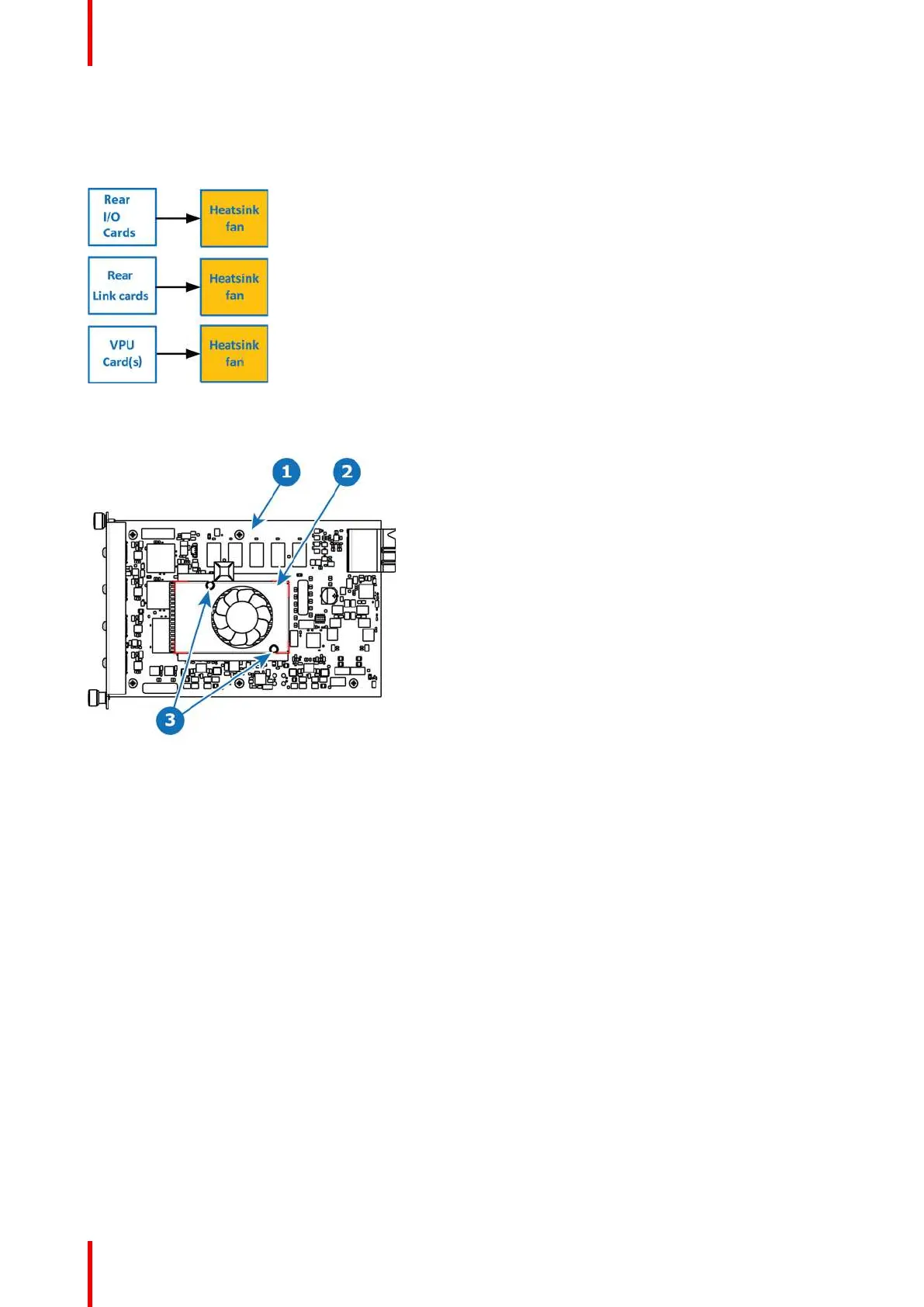

15.5 Rear I/O, VPU and Link card Heatsink Fan
Flow chart
Image 15-6
Overview
Image 15-7
1 I/O board
2 Heatsink Fan
3 Pins
Concerned parts
R767263K Heatsink Fan
Necessary tools
• 1 x Phillips Screwdriver #2.
• Small fine nose pliers.
How to remove the Rear I/O, VPU and Link card Heatsink Fan
1. After you remove the card from the chassis, unplug the heatsink fan power wire from the PCB connector.
2. Locate the two pins that are located on opposite corners of the Heatsink and secure the fan on to the board.
3. Turn the board over and with small fine nose pliers while bringing together the two sides of the pin push it
through the hole.
4. After both pins are pushed through the holes, you can remove the heatsink from the card.
S3 Maintenance
