The Ethernet cable connects the Genlock board to the System Power board. This procedure
provides instructions on how to remove the cable from both sides.
Concerned parts
R767269K Cable Kit Set
Necessary tools
1 x Phillips Screwdriver #2
How to remove the Ethernet cable
1. Follow the steps detailed in other procedures to remove Ethernet cable from the Genlock assembly.
2. Turn the unit upside down and follow the steps detailed in other procedures to remove the Bottom Panel and
the CPU module from the System-Power board.
3. Remove the USB, VFD, 3RU and 1RU cables that are connected to the System-Power board.
4. Remove the screws that attach the System-Power Board to the standoffs.
5. Lift the System Power Board from the standoffs and flip it over, but don’t extend it too much.

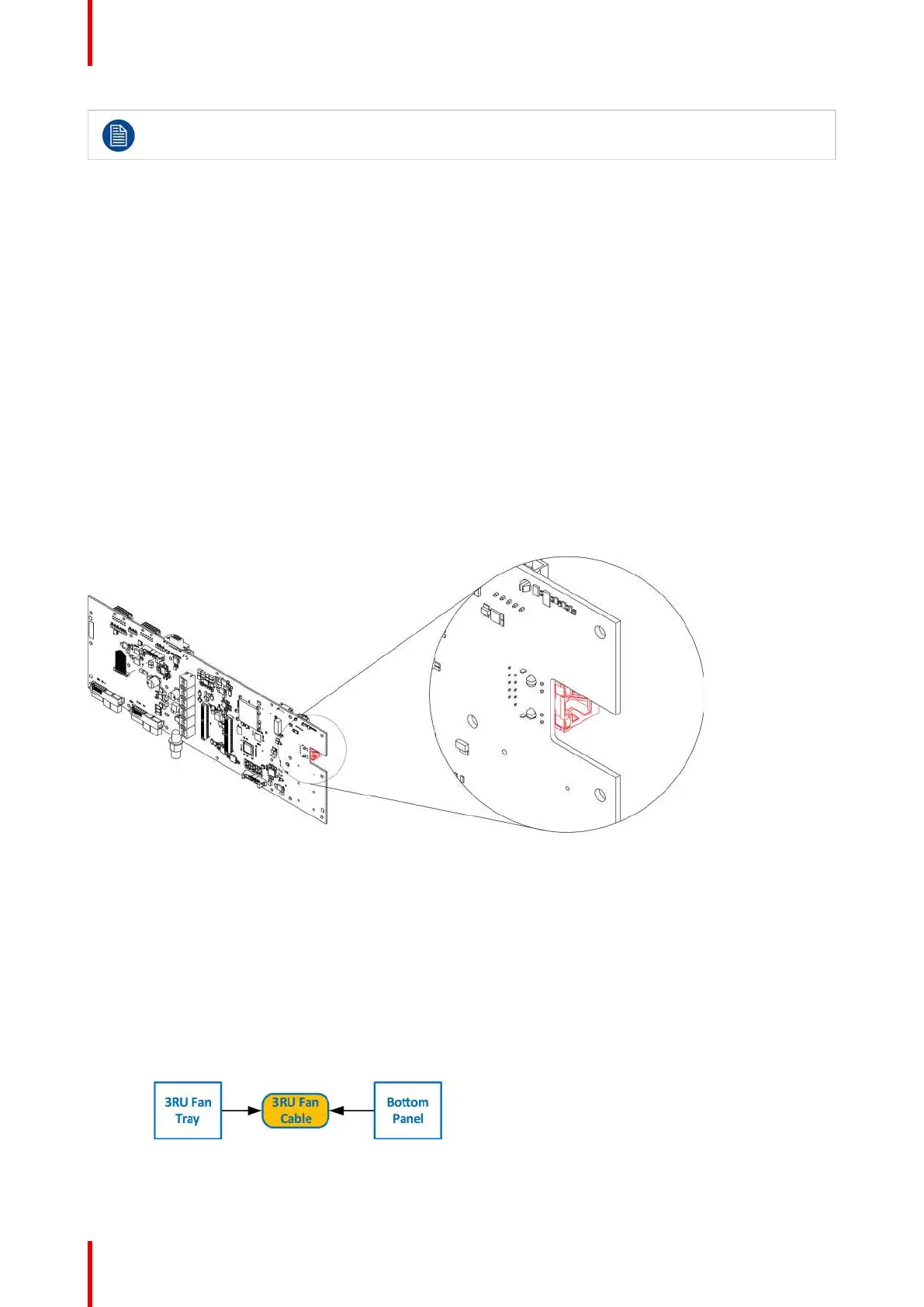

6. Locate the Ethernet connector and push the locking clip on the Ethernet cable so it can be released from the
socket.
Image 14-81
7. Carefully remove the cable from the unit.
How to install the Ethernet Cable
To install the Ethernet Cable follow the same procedure in the reverse order.
14.30 3RU Fan Cable
Flow chart
Image 14-82
