R5905948 /12 Event Master Devices 433
The 3RU cable assembly provides power to the 3RU fans from the System-Power board.
One side of the cable is attached to a metal bracket that is accessible after the 3RU fan tray is
removed. The other side of the cable assembly connects to the System-Power board and is
accessible when the bottom panel is removed
Concerned parts
R767269K Cable Kit Set
Necessary tools
• 1 x Phillips Screwdriver #2
• Hex Screwdriver
How to remove the 3RU Fan cable
1. Make sure the unit is placed in the upright position and the 3RU fan tray is removed
2. Locate the 3RU cable connector that is exposed after the 3RU fan tray is removed. The connector is attached
on a metal bracket that is vertically mounted in the chassis.

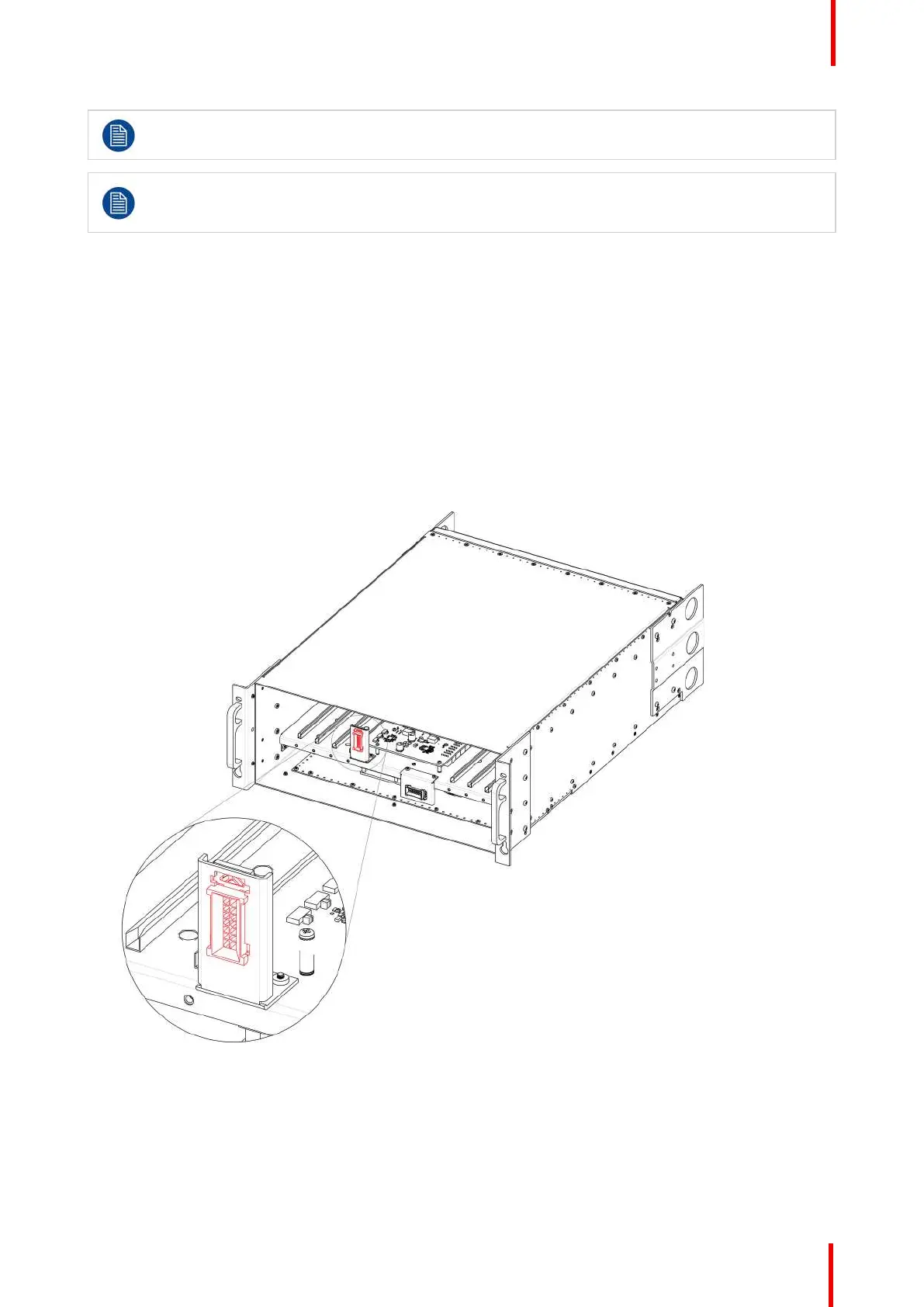

Image 14-83
3. Locate the snap lock on the top of the connector and push it back to release the connector from the bracket.
